Connecting the power
cable:
Open the external flap.
Depending on the model, fold up the cover.
Plug in the plug:
9.6 Fuses
9.6.1 Main fuse
Location The main fuse has been fitted in the B-pillar (centre pillar). It can be accessed
from the passenger side.
9.6.2 12 V fuses
The appliances connected to the 12 V power supply in the living area are fused
individually. The fuses are accessible at different positions in the vehicle.
An intact 12 V fuse can be detected by the unbroken fuse element (Fig. 75,1).
If the fuse element is broken (Fig. 75,2), change the fuse.
Z Depending on the model, unlock the plug before pulling it out.
X Only replace defective fuses when the cause of the defect is known and
has been remedied.
X Only replace defective fuses when the power supply is switched off.
X Never bridge or repair fuses.

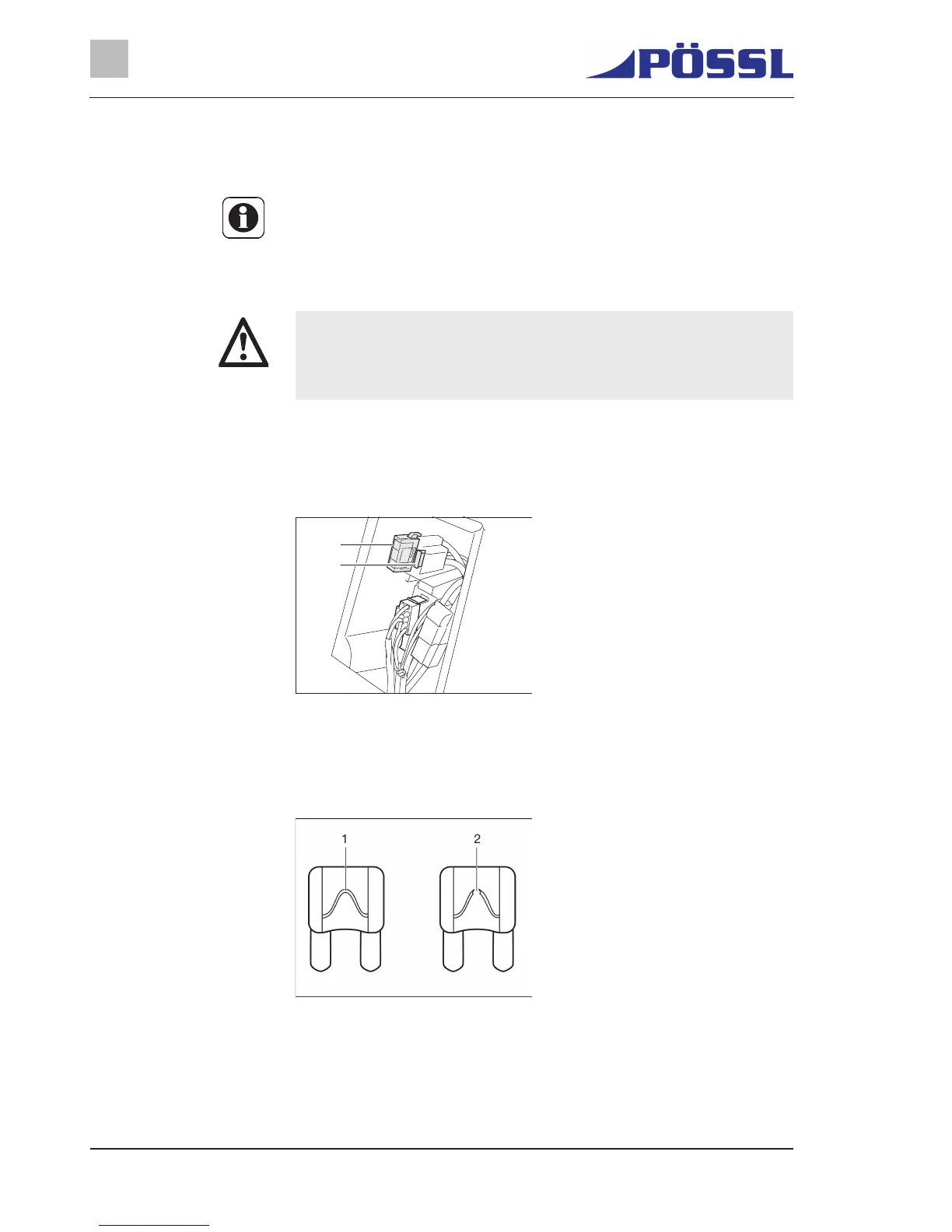

Fig. 74 Main fuse
1 Main fuse 50 A/red
2 2 x flat fuse 2 A/grey
