75Motorhome - 02/11-0 - PSL-MJ11-00EN
Electrical system
9
Before changing fuses, take the function, value and colour of the relevant
fuses from the following specifications. When changing fuses, only use flat
fuses with the values shown below.
Fuses on the starter
battery
Depending on the model the fuses are installed near the starter battery under
a covering between the seats or in a seat console.
Fuses on the living area
battery
The fuses are fitted next to the living area battery.
Fuse for the Thetford
toilet (swivel toilet)
The fuse is located in the locker wall of the Thetford cassette.
Changing:
 Open the flap for the Thetford cassette on the outside of the vehicle.
 Pull out the Thetford cassette completely.
 Replace the fuse (Fig. 78,1).

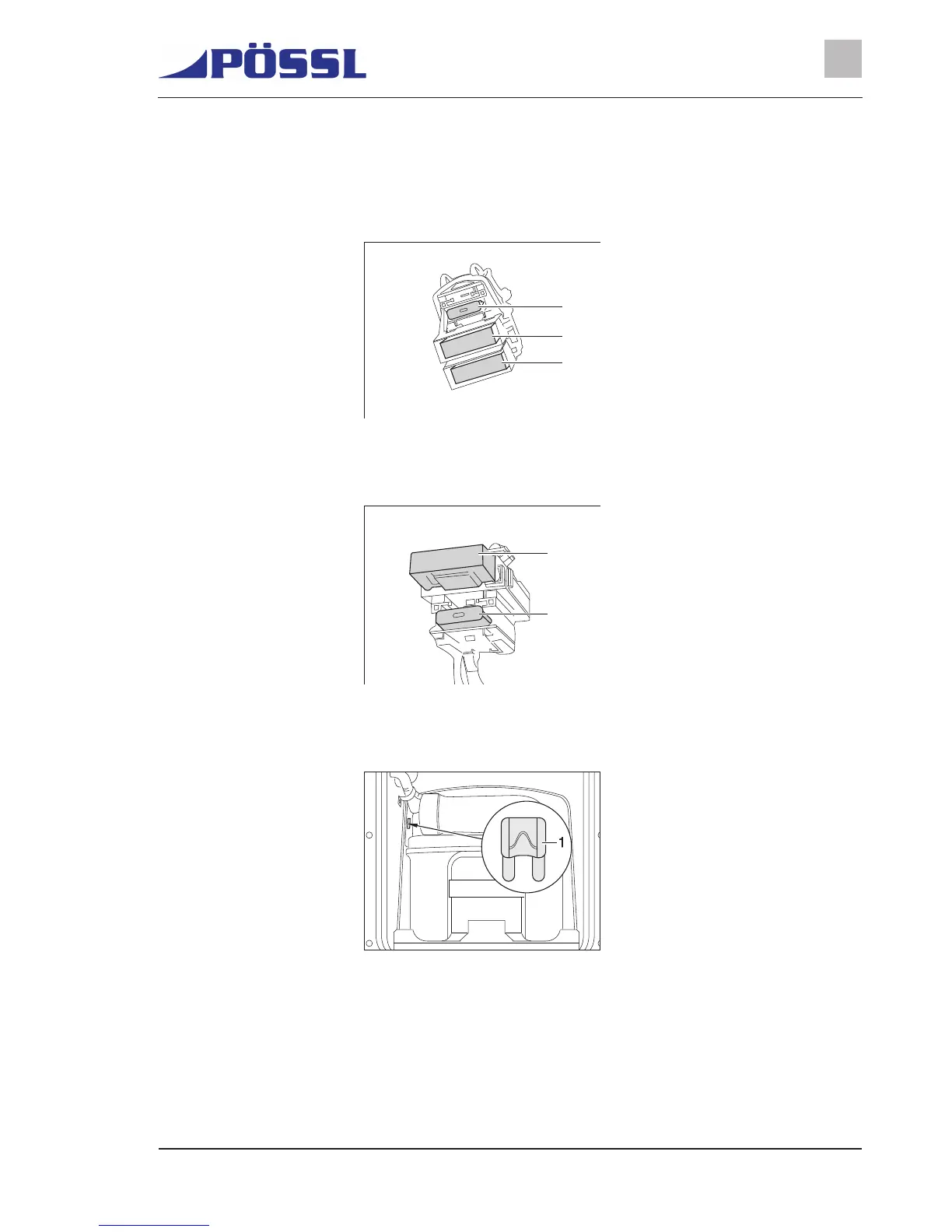

Fig. 76 Fuses on the starter battery
1 Flat fuse 2 A/grey
(for alternator D+)
2 Jumbo flat fuse 40 A/orange
3 Flat fuse 20 A/yellow
(for refrigerator and charging line)
40
40
20
20
1
2
3
Fig. 77 Fuses on the living area battery
1 Jumbo flat fuse 40 A/orange
2 Flat fuse 2 A/grey
(for battery charger sensor)
40
40
1
2
Fig. 78 Fuse for the Thetford toilet
1 Flat fuse 3 A/purple
