Potterton Paramount three 95 - 10.6 Boiler view Paramount

10.6 Boiler view Paramount

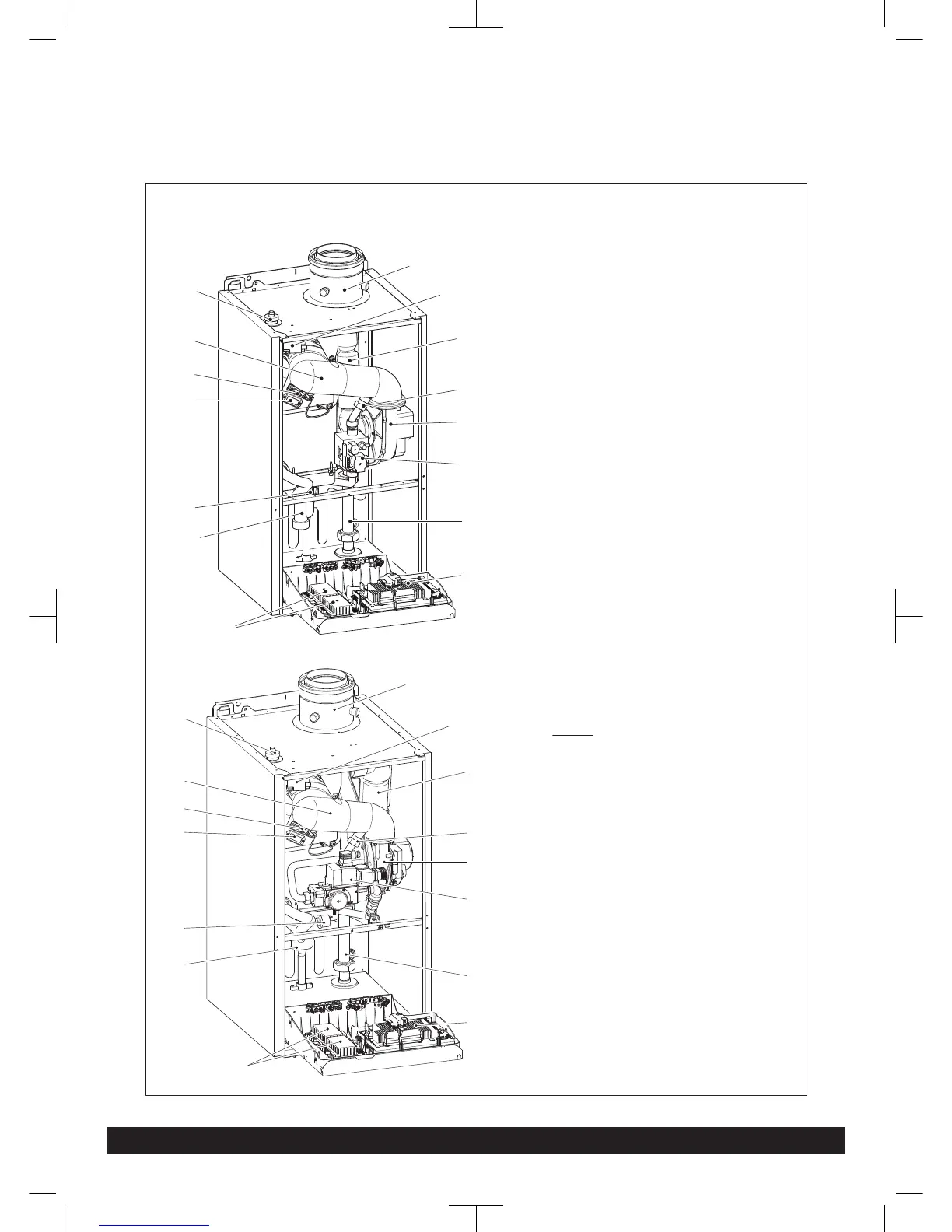

Fig. 31: Boiler views Paramount (depicted without front wall and control cover)
Paramount three 30-60
Legend
1 Auto-de-aerator
2 Mixing channel
3 Ignition and ionisation electrode
4 Viewing glass
5 Pressure controller
6 Siphon
7 Exhaust gas adapter with test openings
8 Ignition transformer (under the lid)
9 Intake muffler
10 Gas jet
11 Fan
12 Gas valve
13 Pump replacement pipe
14 Control LMS
15 EWM
*)
*)
Accessories
15
14
1
2
3
4
5
6
7
8
9
10
11
12
13
Paramount three 80
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Maintenance
