Potterton Paramount three 95 - 5.16 Gas valve

5.16 Gas valve

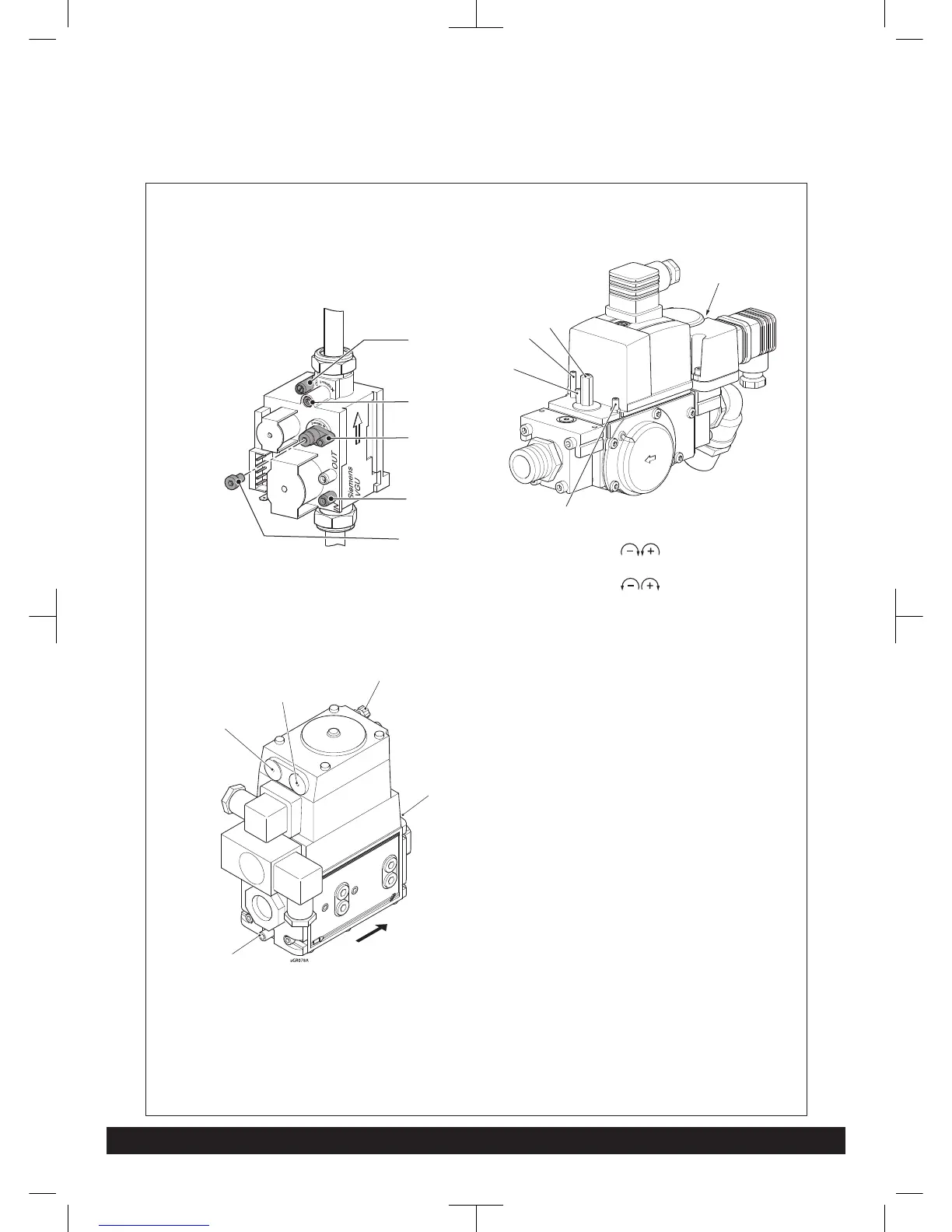

Fig. 9: Gas valve
Paramount Three 60 (Fa. Siemens VGU)
(setting of jet pressures with Torx T15)
Paramount Three 80 (Fa. Dungs MBC 120)
sWG004A
1
2
3
4
5
2
6
3
1
4
2: Full load
3: Low load
Paramount Three 95/115 (Fa. Kromschröder CG 20)
(setting of jet pressures with Torx T15)
1
2
3
4
6
x
1 Measuring nozzle for jet pressure 4 Measuring nozzle for connecting pressure
2 Setting for full load 5 Protective plug
3 Setting for low load (remove protective plug in
advance (5))
6 Fan pressure
X Flow direction
Note: The Torx-key is located in the accessory bag.
