Power Acoustik HD-14KIT - Wiring Connections; ISO Wire Harness Connection; Handlebar Integration Module Connection

Installation

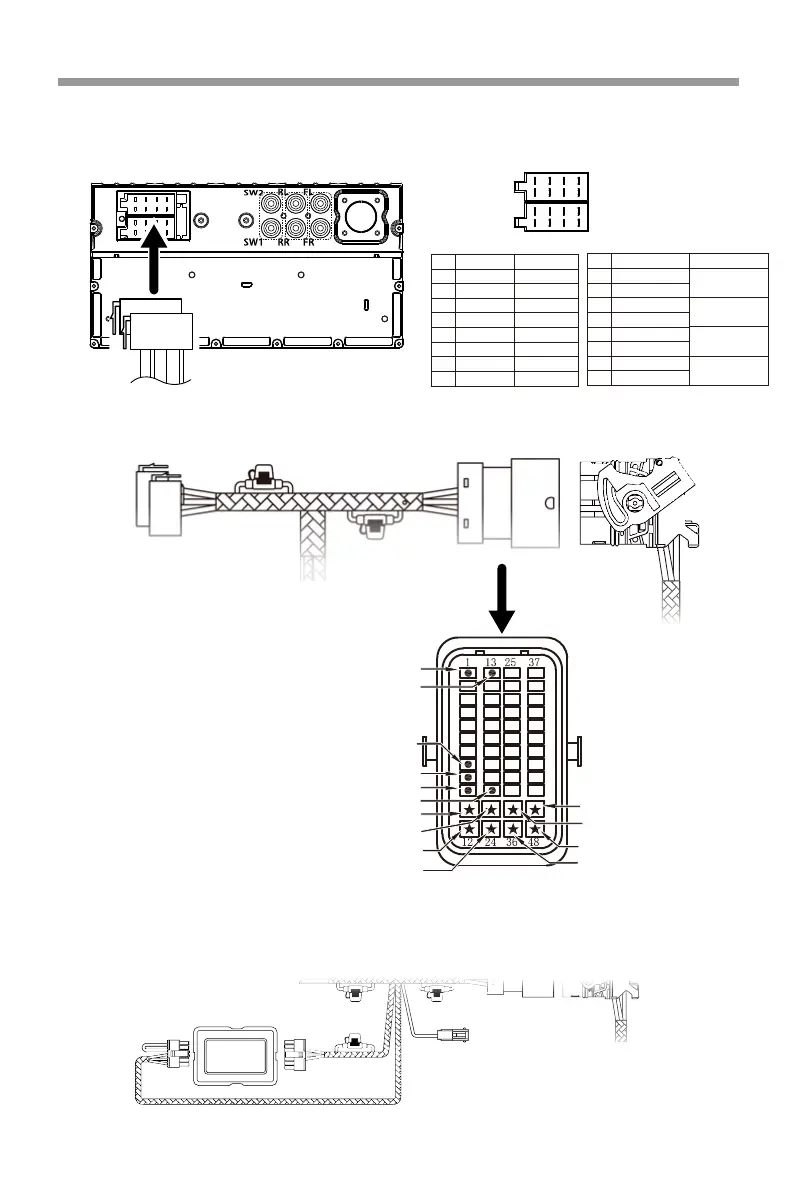

4. Insert and lock the male ISO head unit wire harness connector to the female socket of the included wire harness
for HD-14KIT. Then, insert and lock the male connector of the HD-14KIT wire harness into the corresponding
female socket on the back of HD-14KIT.
5. If an alternative handlebar integration module other than Scosche is available, skip this step and proceed to step
6. If included, connect the Scosche handlebar integration module to the corresponding 12-pin and 14-pin
connectors on the wire harness of HD-14KIT.
A
B
A
B
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
A
1
2
3
4
5
6
7
8
Color
Yellow
Black/White
SWC-GND
Gray/White
SWC2
Green/White
SWC1
Battery +
Blue
ANT
Orange Illumination
Red
ACC
Black Ground
Function
B
1
2
3
4
5
6
7
8
Color
Purple(+)
Purple/Black(-)
Gray(+)
Gray/Black(-)
White(+)
White/Black(-)
Green(+)
Fuse: Max.15 Ampere
Voltage: 12V DC; Negative Ground
Green/Black(-)
Rear Right
Front Right
Front Left
Rear Left
Function
ISO Connector
HD-14KIT wire harness
OEM wire harness
SCOSCHE
Gray/Black (FR-)
Gray (FR+)
White/Black (FL-)
Purple/Black (RR-)
Purple/White (CAN-)
Green/White (CAN+)
Green/Black (RL-)
Purple(RR+)
Green(RL+)
White(FL+)
Black (Ground)
Black (Ground)
Yellow (Black)
Yellow (Black)
