8
5 INSTALLATION
5.1 CONNECTING
THE
RECEIVER

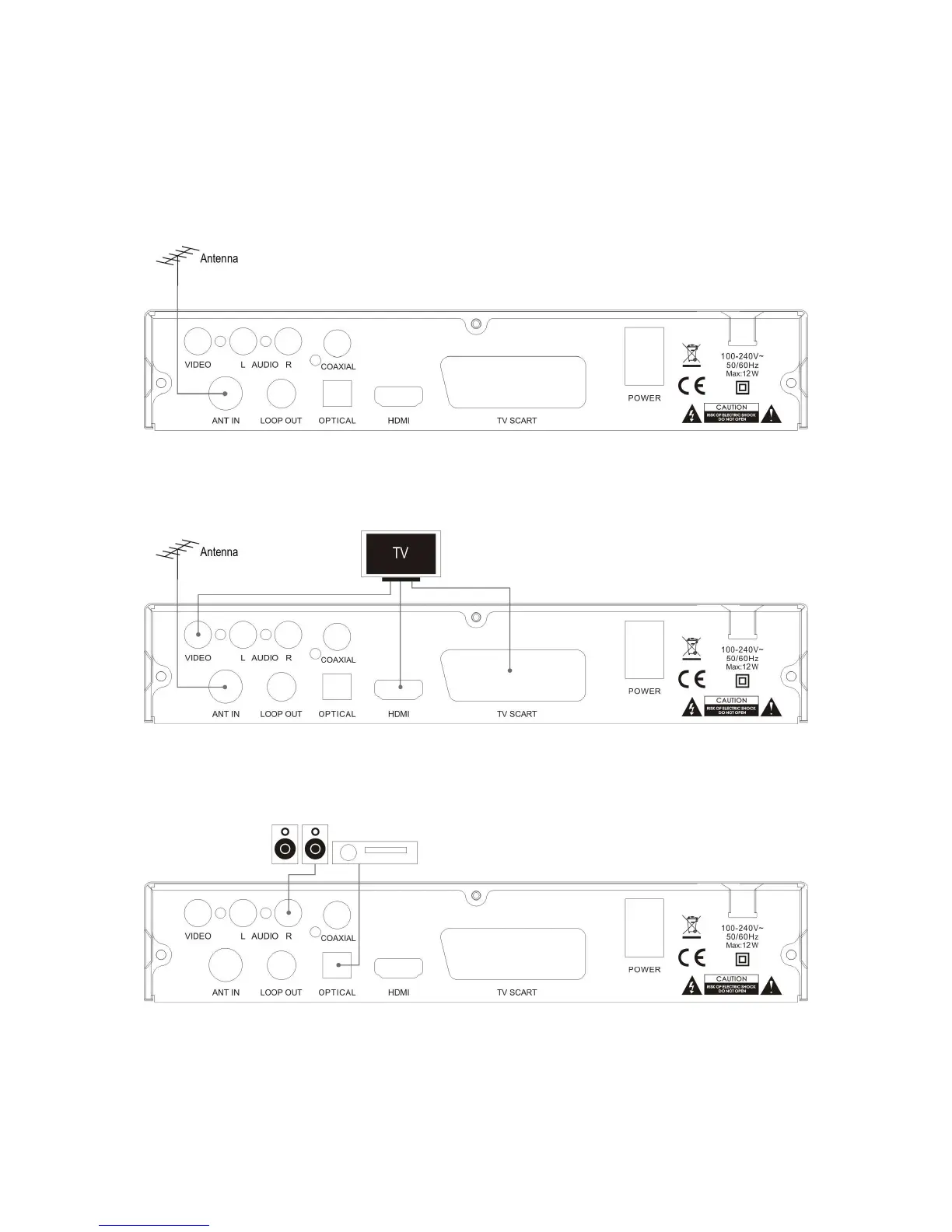

Connect the antenna to the receiver
Connect the receiver to your TV set using the Composite (Yellow socket for Video, White and Red
sockets for Audio, AV Cable Supplied with receiver). SCART or HDMI connections.(Cable Sold
Separately)
Connect the receiver to an amplifier using either SPDIF Digital Audio Output or the Analogue Audio
Output(Red sockets for Audio, AV Cable Supplied with receiver).
