19

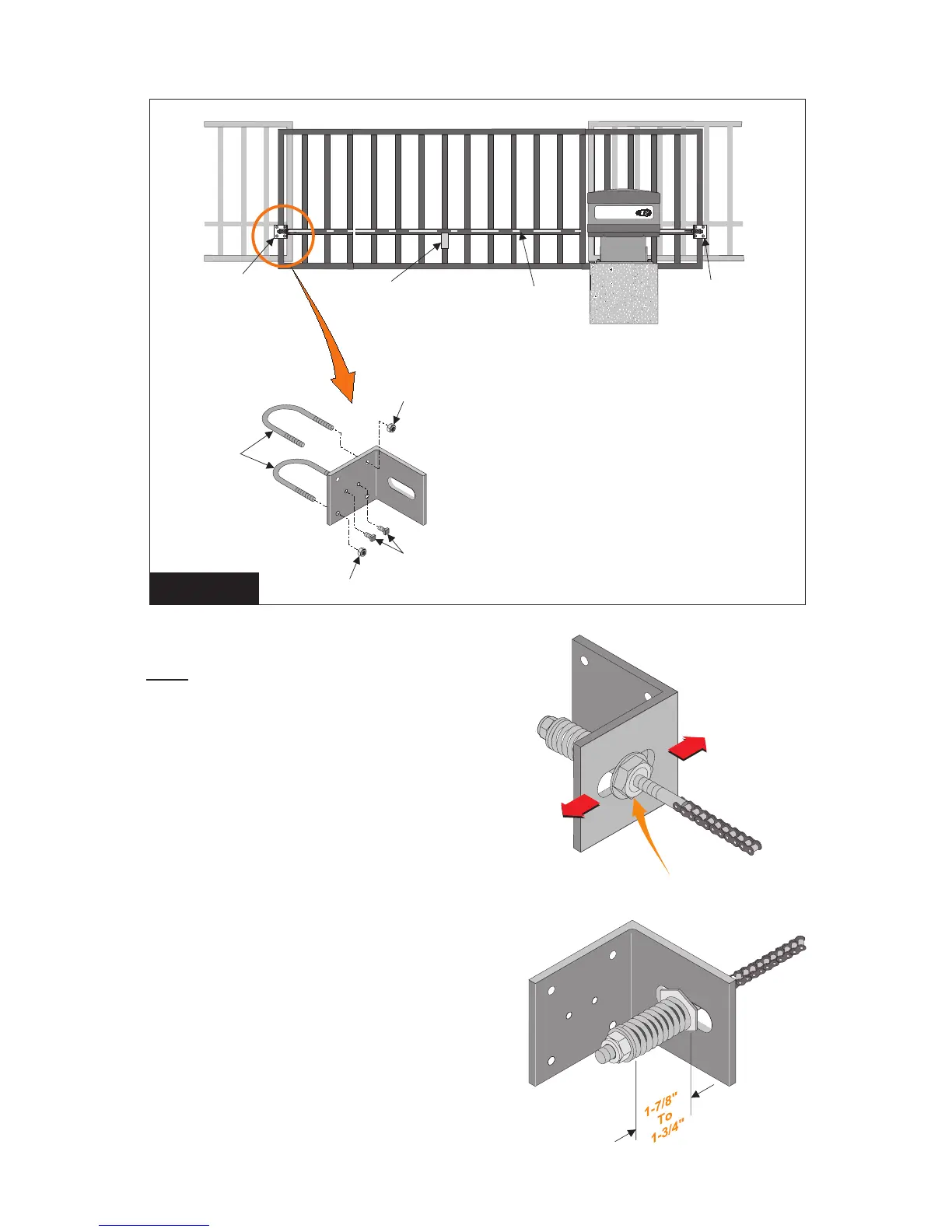

NOTE: By moving the gate manually to
each end of its travel, chain alignment is
simplied
Adjust spring length as shown for
proper chain tension
Jamb Nut
FIGURE 7
Gate Bracket
Gate Bracket
Drive Chain
Set Screw
Chain Support
Bracket
Nut
U-Bolts
Nut
PowerMaster
9. Tighten the gate brackets securely and lock in position with the setscrews provided.
See Figure 7.
10. Adjust chain tension so that the
chain tension springs are reduced
to a length within 1-7/8” and 1-3/4”.
