Page 10 of 19
PowerMate
®
L1/L2 Series Model
Repair Manual
Section G: Fuse Assembly Replacement
PROCEDURE:
1. Place the machine on a suitable work bench with the machine resting on its face (toeplate down). Remove the fuse.
(See Pic G - A)
2. Remove the Battery Box Cover using a large fl at screw driver and hammer. (See Pic G - B)
3. Remove the wheels and axle. (See Pic G - C)
4. Remove the positive (red wire) off the large post of the bottom left side solenoid. Remove the negative (black wire)
off the large post of the upper right side solenoid.
5. Remove styrofoam packing surrounding left side battery. Remove the battery for easy access to the fuse assembly.
(See Pic G - D)
6. Disconnect and mark the two wires to ensure proper re-installation of the fuse assembly. (See Pic G - E)
7. Unscrew the placement washer and remove the old fuse assembly.
8. Remove fuse from the new assembly and install into position. Re-install placement washer hand tight.
(See Pic G - F)
9. Re-attach marked wires to the fuse assembly. Re-install battery. Install styrofoam packing between Battery and
Battery Box End.
10. Install the positive (red wire) to the large post of the bottom left side solenoid. Install the negative (black wire) to the
large post of the upper right side solenoid.
11. Replace axle, wheels and Battery Box Cover.
12. Re-insert fuse and test.

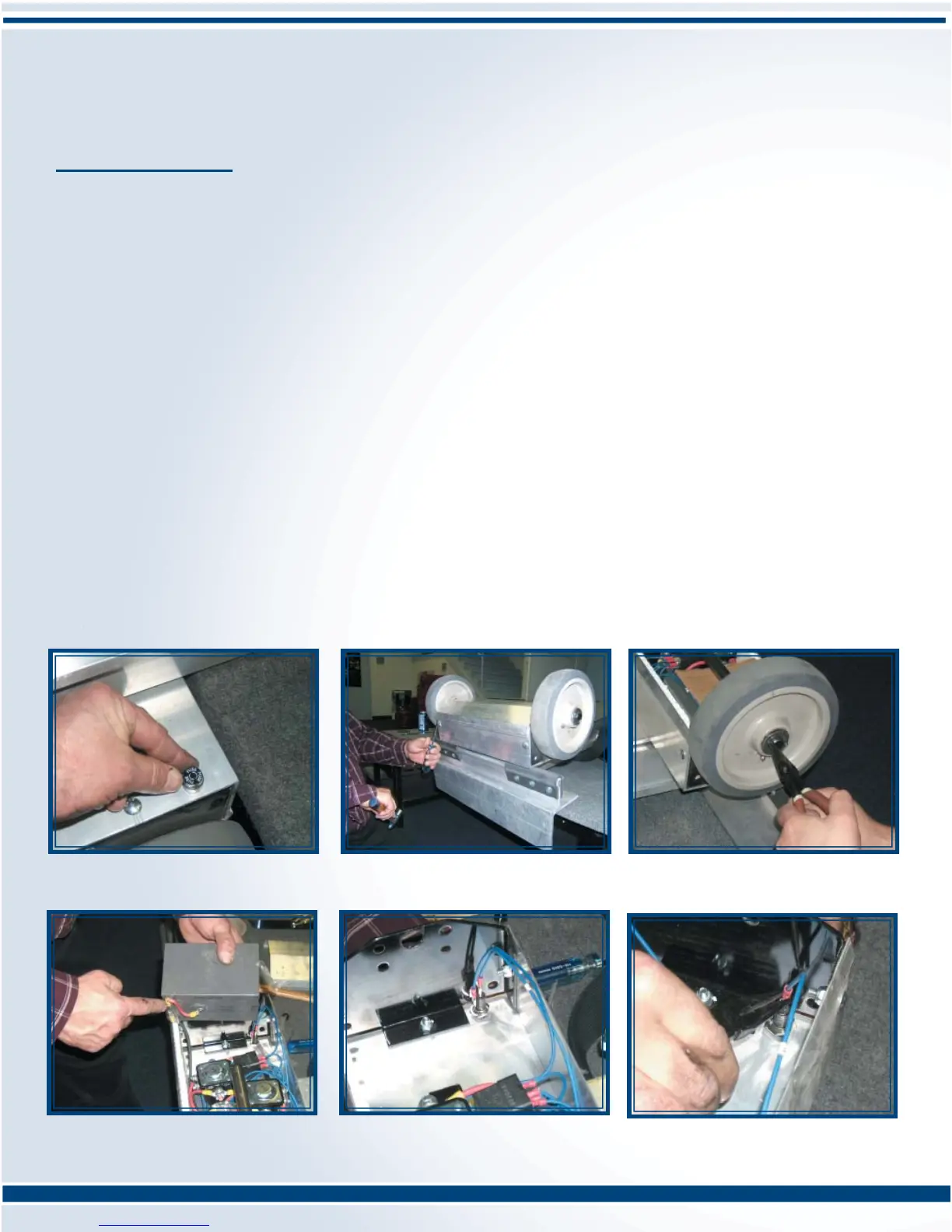

Pic G - A: Remove the Fuse
Pic G - B: Remove Battery Box
Pic G - C: Remove the Wheels and axle.
Pic G - D: Remove Styrofoam Packing
and Both Batteries
Pic G - E: Disconnect and mark the two
wires.
Pic G - F: Re-attach marked wires to
fuse assembly
