L1/L2 Series Model
Repair Manual
Section F: Relay Replacement
PROCEDURE:
1. Place the machine on a suitable work bench with the machine resting on its face (toeplate down). Remove the
fuse. (See Pic F - A)
2. Remove the Battery Box Cover using a large fl at screw driver and hammer. (See Pic F - B)
3. Remove the wheels and axle. (See Pic F - C)
4. At left side center of the solenoid pack is a nut and bolt securing the relay to the solenoid pack. Loosen only
and remove relay. (See Pic F - D)
5. Important: With the new relay in hand, remove one wire at a time from the suspect relay and connect to the
matching tang on the new relay. Discard old relay. (See Pic F - E)
6. Install the new relay, tighten nut and bolt to secure.
7. Replace axle, wheels and Battery Box Cover.
8. Re-insert fuse and test. 14. Re-insert fuse and test.

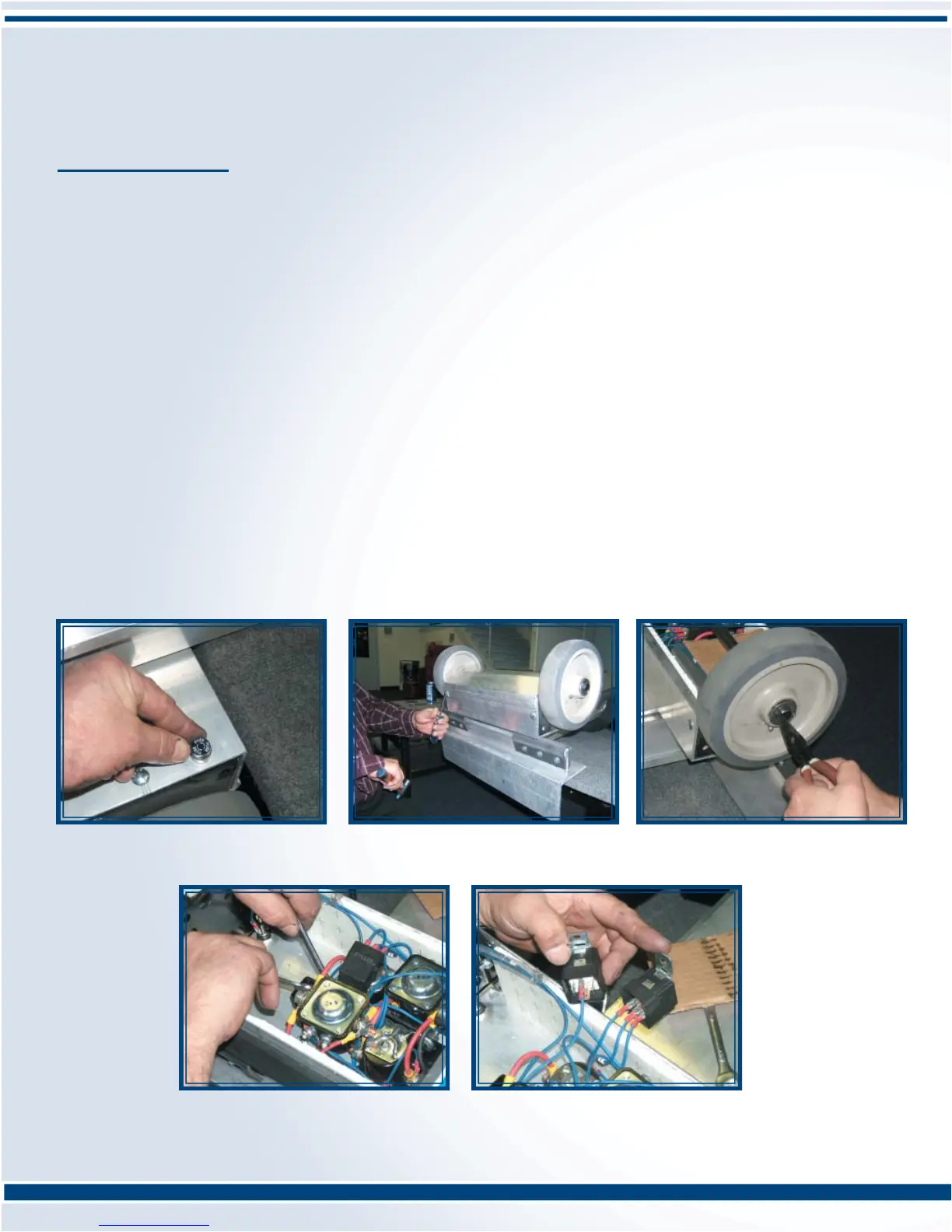

Pic F - A: Remove the Fuse
Pic F - B: Remove Battery Box
Pic F - C: Remove the Wheels and axle.
Pic F - D: Loosen only and remove relay
Pic F - E: Discard Old Relay
