from 170Vac to 220Vac (Default: 170Vac)

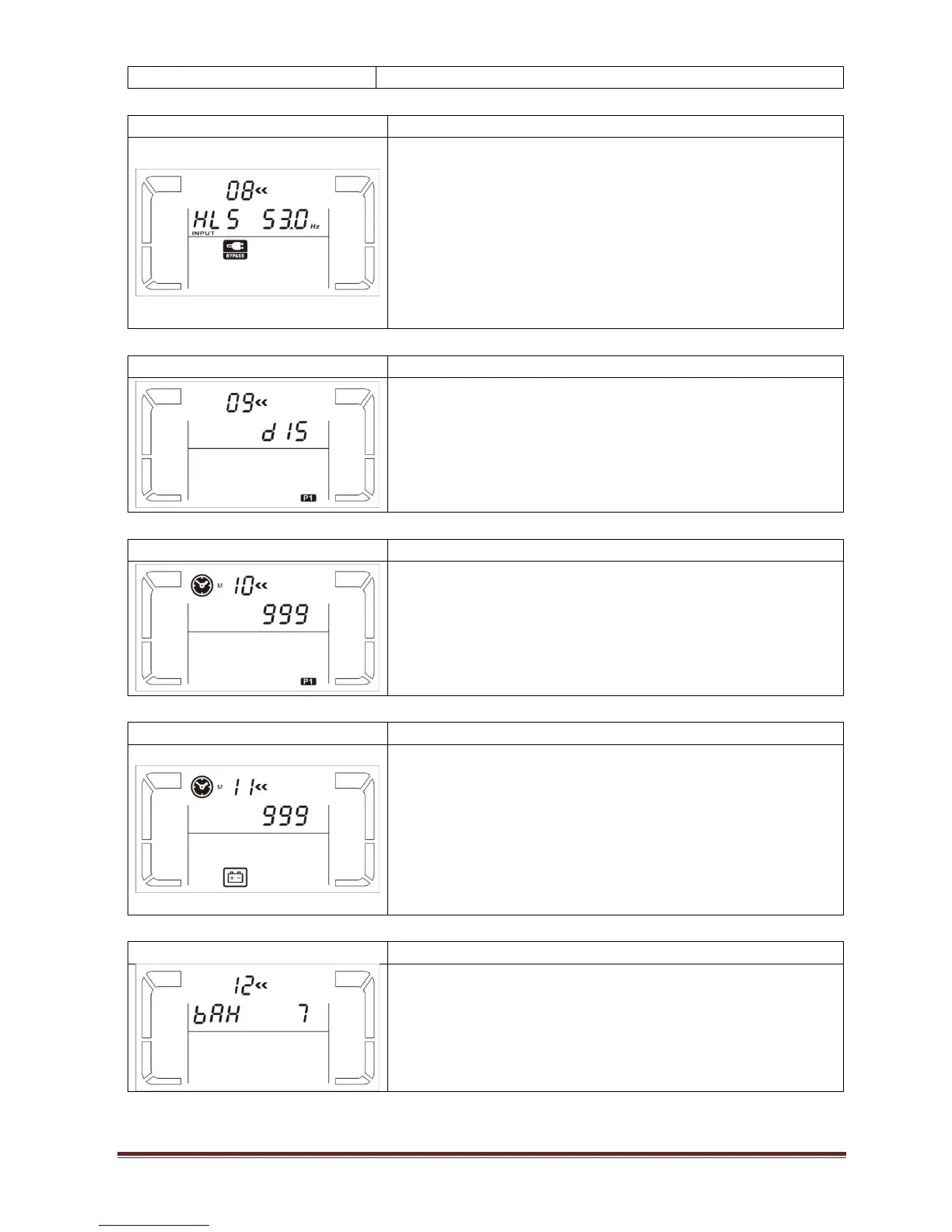

08: Bypass frequency range setting
Parameter 2 & 3: Set the acceptable high frequency
point and acceptable low frequency point for Bypass
mode by pressing the Down key or Up key.
HLS: Bypass high frequency point
51-55Hz: setting the frequency high loss point from
51Hz to 55HZ(Default: 53.0Hz)
LLS: Bypass low Frequency point
45-49Hz: setting the frequency low loss point from
45Hz to 49HZ(Default: 47.0Hz)
09: Programmable outlets enable/disable
Parameter 3: Enable or disable programmable outlets.
ENA: Programmable outlets enable
DIS: Programmable outlets disable (Default)
10: Programmable outlets setting
Parameter 3: Set up backup time limits for
programmable outlets.
0-999: setting the backup time limits in minutes from
0-999 for programmable outlets which connect to non-
critical devices on battery mode. (Default: 999)
11: Autonomy limitation setting
Parameter 3: Set up backup time on battery mode for
general outlets.
0-999: setting the backup time in minutes from 0-999
for general outlets on battery mode.
DIS: Disable the autonomy limitation and the backup
time will depend on battery capacity. (Default)
Note: When setting as “0”, the backup time will be only
10 seconds.
12: Battery total AH setting
Parameter 3: Set up the total battery AH of the UPS.
7-999: setting the battery total capacity from 7-999 in
AH. Please set the correct total capacity of battery if
external battery bank is connected.
