DSP Board
Fan + Fan’s Duct
Main Board
Rear Panel
Front Panel
EPROM:
Amplier’s Model
Amplier’s Serial Number
Amplifer’s MAC Address
5.2 Internal

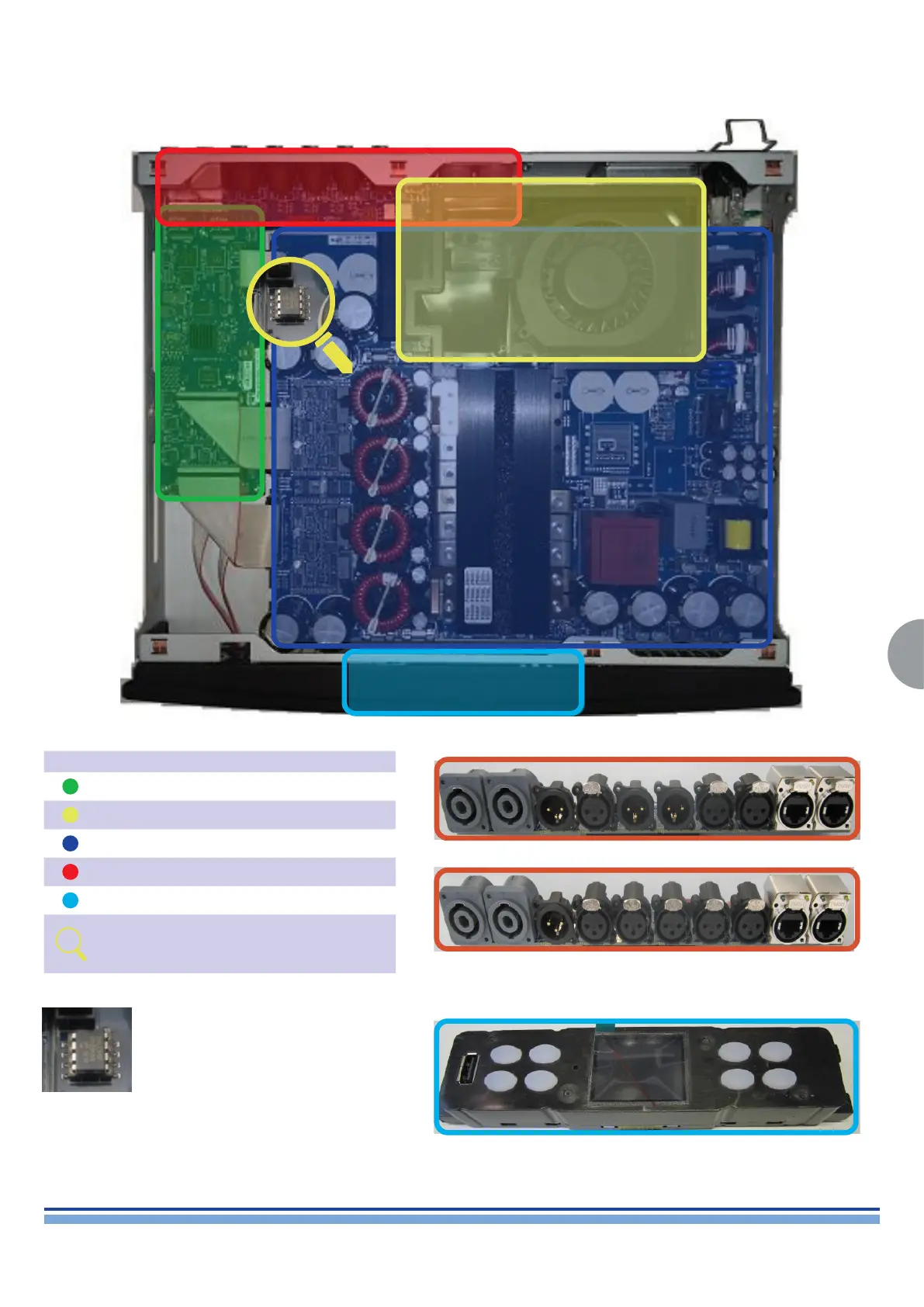

5.2.1 Main Module Locations
Layout
Eprom
NOTE: When replacing the Main Board,
remove the Eprom by gently prying on its
sides and place it in the new board.
The Eprom contains the following informations:
Model of the Amplifier
Serial Number of the Amplifier
MAC Address of the Amplifier
Rear Panel Board
Front Panel Board
4 CH REAR
2 CH REAR
