7.5 Checking the Fan

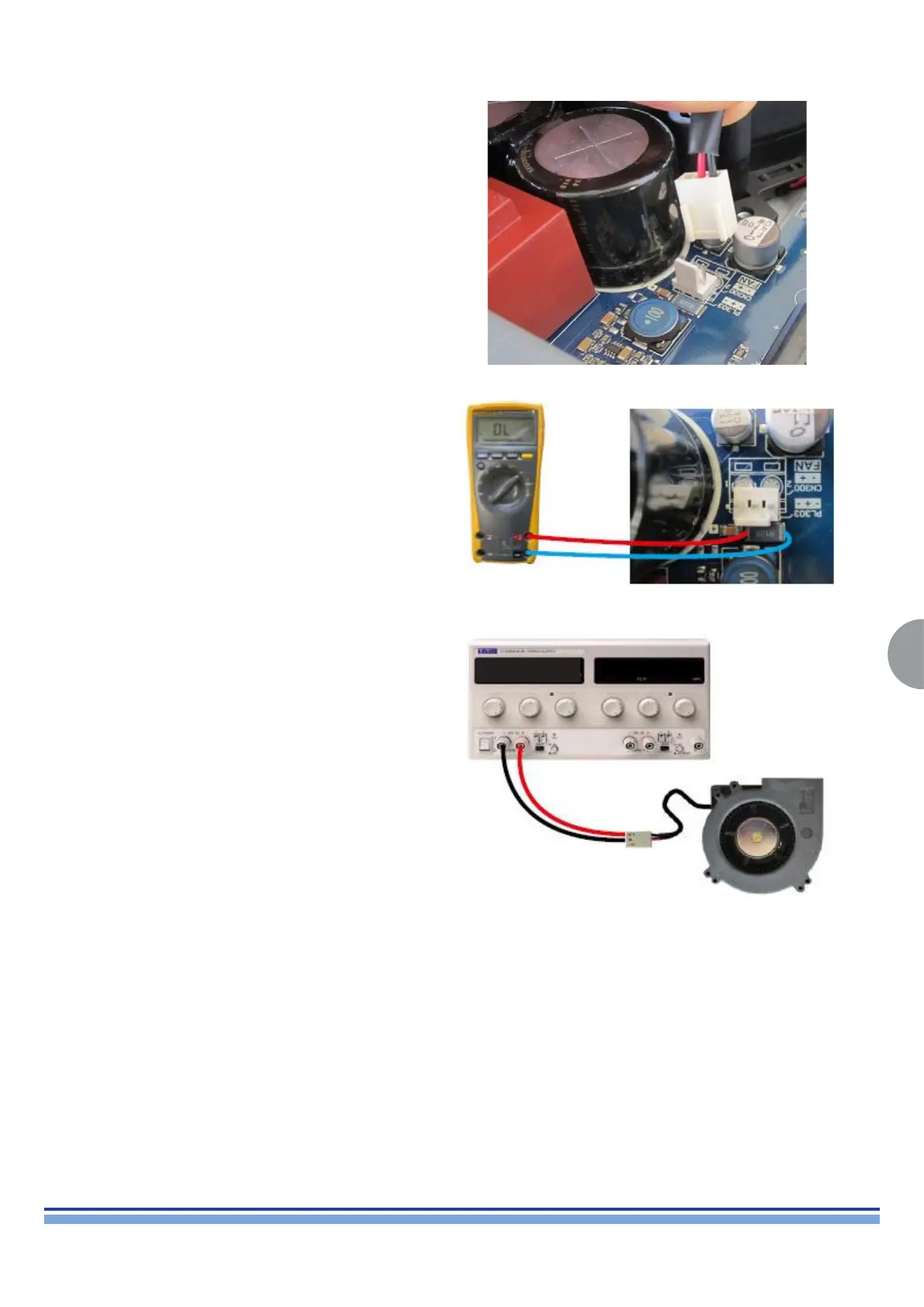

Remove the FAN’s connector as portrayed.
With a multimeter, check the R361 Resistor.
R361: 0.12 Ω
Connect the fan to a DC power supply, and check its
consumption as portrayed on the picture.
1.3 A (± 10%) @ 12 Vdc
+12 Vdc 1.3 A+12 Vdc 1.3 A
