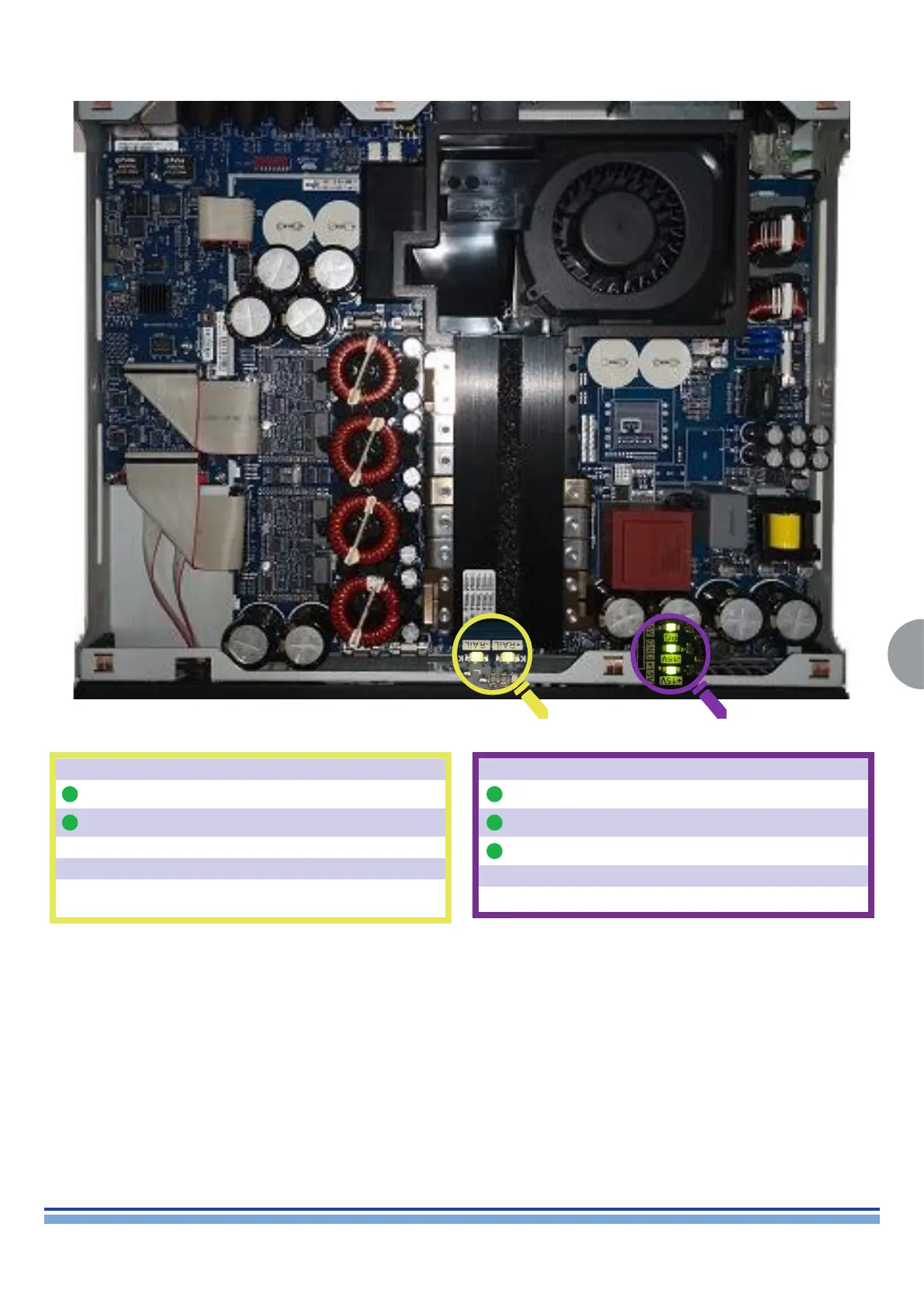

7.2 Internal LEDs Checks - Power Supply Section - Normal Operating Conditions
Colour Status LED Action
GREEN*
ON +RAIL None
GREEN*
ON -RAIL None
Main Board PSU Section Main Board
Colour Status LED Action
GREEN
ON +15 None
GREEN
ON -15 None
GREEN
ON PG None
* The luminisity of these 2 LEDs is dimmed when the amplifier is in “Idle” mode.
