PowerSync LFP-LV User Manual

5. 4. 8BIT TOGGLE SWITCH SETTINGS
NOTE: PRIOR TO THE INITIAL INSTALL, SET THE TOGGLE SWITCHES APPROPRIATELY
BEFORE TURNING ON THE BREAKER.
WHEN ADDING MODULES TO AN EXISTING INSTALLATION, TURN OFF THE BREAKER, SET
THE TOGGLE SWITCHES APPROPRIATELY, WAIT 20 SECONDS, TURN THE BREAKER ON.
5. 4. 1. TOGGLE SWITCH ID SETTINGS FOR MULTI MODULE INSTALLATIONS
YoumayneedtozoominyourPDFtoclearlyseetheimagesinthefollowingtables.

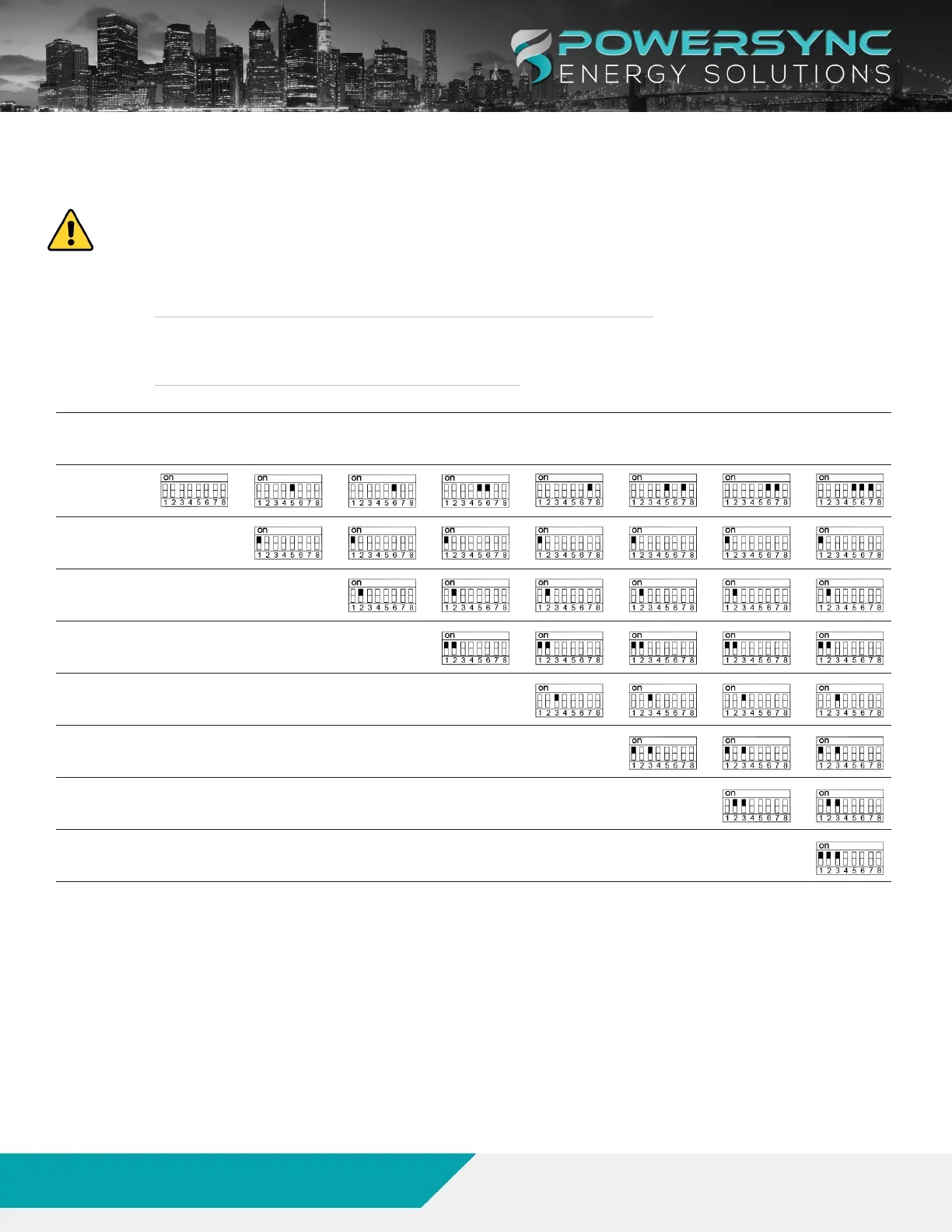

TABLE 7. SINGLE MODULE THROUGH 8 MODULE INSTALLATIONS
ModulesIn
Parallel
Single
Battery
2P 3P 4P 5P 6P 7P 8P
Host
Module
Module 2
Module3
Module 4
Module 5
Module 6
Module7
Module 8
