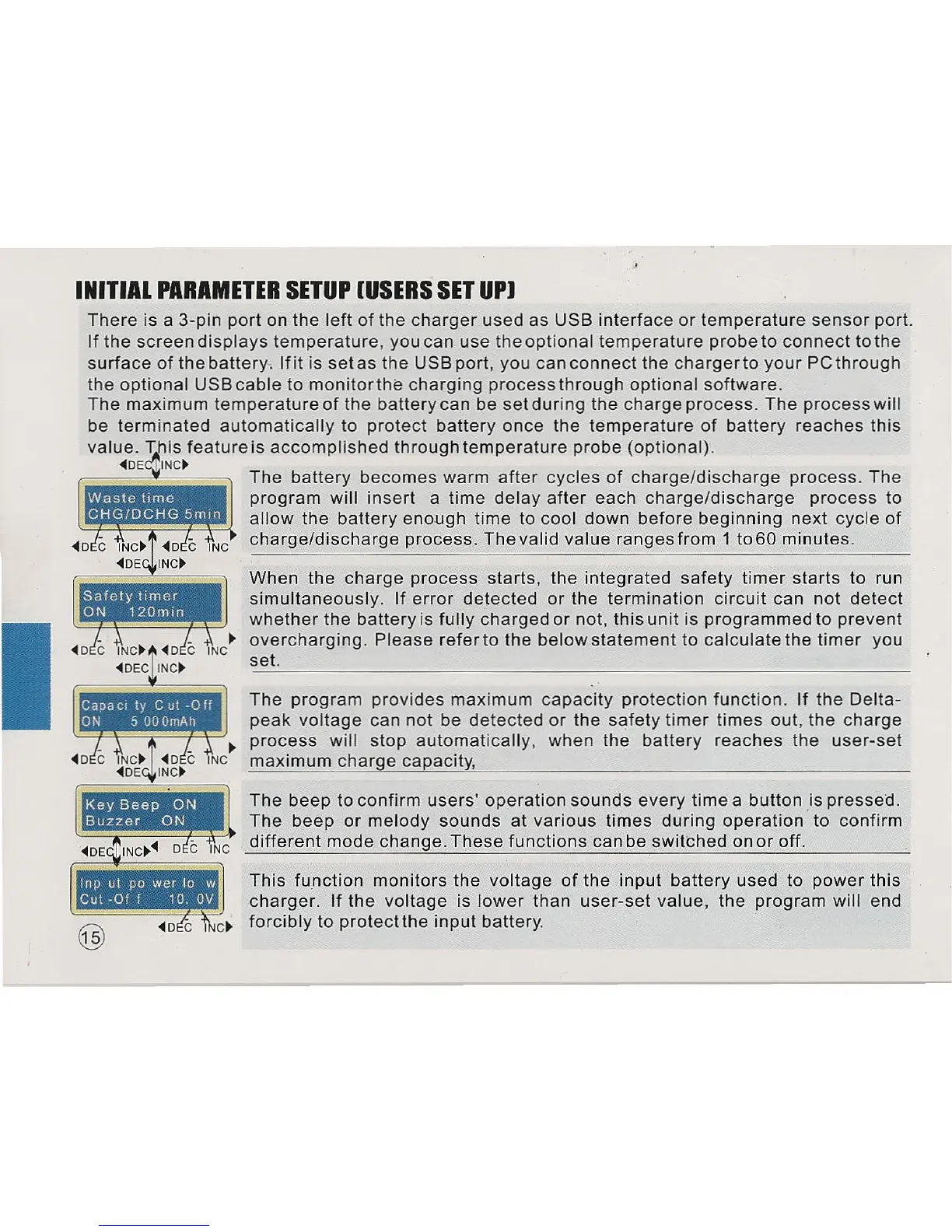

INITIAl PARAMETER SETUP lOSERS SET UP)
There is a 3-pin port on the left of the charger used as USB interface or temperature sensor port.
If the screen displays temperature, you can use the optional temperature probe to connect tothe
surface of the battery, Ifit is set as the USB port, you can connect the chargerto your PC through
the optional USB cable to monitor the charging process through optional software.
The maximum temperature of the battery can be setduring the charge process. The process will
be terminated automatically to protect battery once the temperature of battery reaches this
value. T",hisfeature is accomplished through temperature probe (optional).
~DEG.I;lNC~
The battery becomes warm after cycles of Charge/discharge process. The
program will insert a time delay after each charge/discharge process to
allow the battery enough time to cool down before beginning next cycle of
charge/discharge process. Thevalid value ranges from 1 t060 minutes.
I
When the charge process starts, the integrated safety timer starts to run
simultaneously. If error detected or the termination circuit can not detect
whether the battery is fully charged or not, this unit is programmed to prevent
overcharging. Please refer to the below statement to calculate the timer you
set.
The program provides maximum capacity protection function. If the Oelta-
peak voltage can not be detected or the safety timer times out, the charge
process will stop automatically, when the battery reaches the user-set
maximum charge capacity,
The beep to confirm users' operation sounds every time a button is pressed.
The beep or melody sounds at various times during operation to confirm
different mode change. These functions can be switched on or off.
This function monitors the voltage of the input battery used to power this
charger. If the voltage is lower than user-set value, the program will end
forcibly to protectthe input battery.
