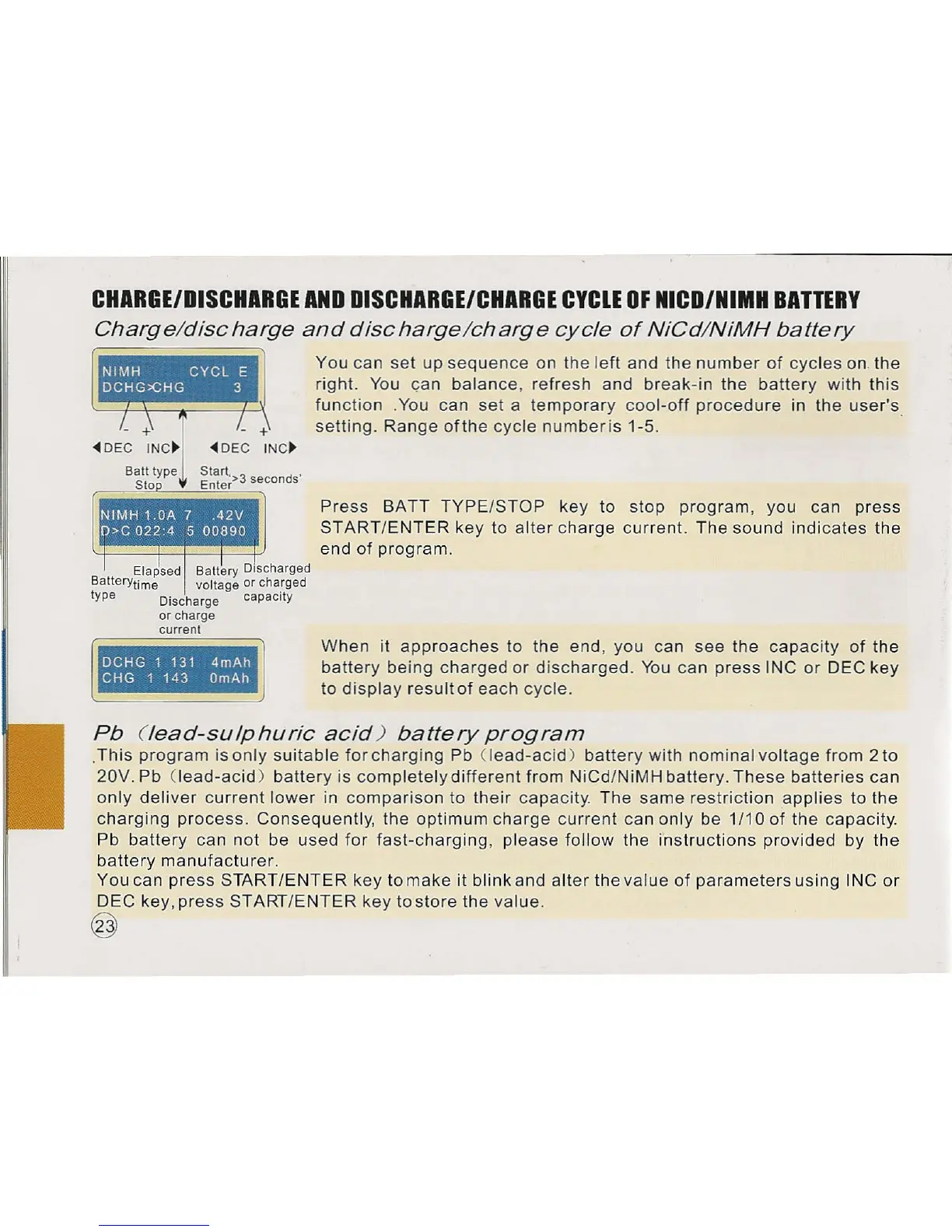

CHARGE/DISCHARGE AND DISCHARGE/CHARGE CYCLE OF NICD/NIMH BATTERY
Charge/discharge and disc hargeich arge cycle of NiCd/NiMH battery
I"",
-40EC INC~ -40EC INC~
NIMH 1 OA 7 42V
D>C 022 4 5 00890
Elapsed Battery Discharged
BatterYtime voltage or charged
type Discharge capacity
or charge
current
OCHG 1 131 4mAh
CHG 1 143 OmAh
You can set up sequence on the left and the number of cycles on. the
right. You can balance, refresh and break-in the battery with this
function .You can set a temporary cool-off procedure in the user's
setting. Range of the cycle number is 1-5.
Press BATT TYPE/STOP key to stop program, you can press
START/ENTER key to alter charge current. The sound indicates the
end of program.
When it approaches to the end, you can see the capacity of the
battery being charged or discharged. You can press INC or DEC key
to display result of each cycle.
Pb (fead-sulphuric acid) battery program
.This program is only suitable for charging Pb (lead-acid) battery with nominal voltage from 2 to
20V. Pb (lead-acid) battery is completely different from NiCd/NiMH battery. These batteries can
only deliver current lower in comparison to their capacity. The same restriction applies to the
charging process. Consequently, the optimum charge current can only be 1/10 oi the capacity.
Pb battery can not be used for fast-charging, please follow the instructions provided by the
battery manufacturer.
You can press START/ENTER key to make it blink and alter the value of parameters using INC or
DEC key, press START/ENTER key tostore the value.
@
