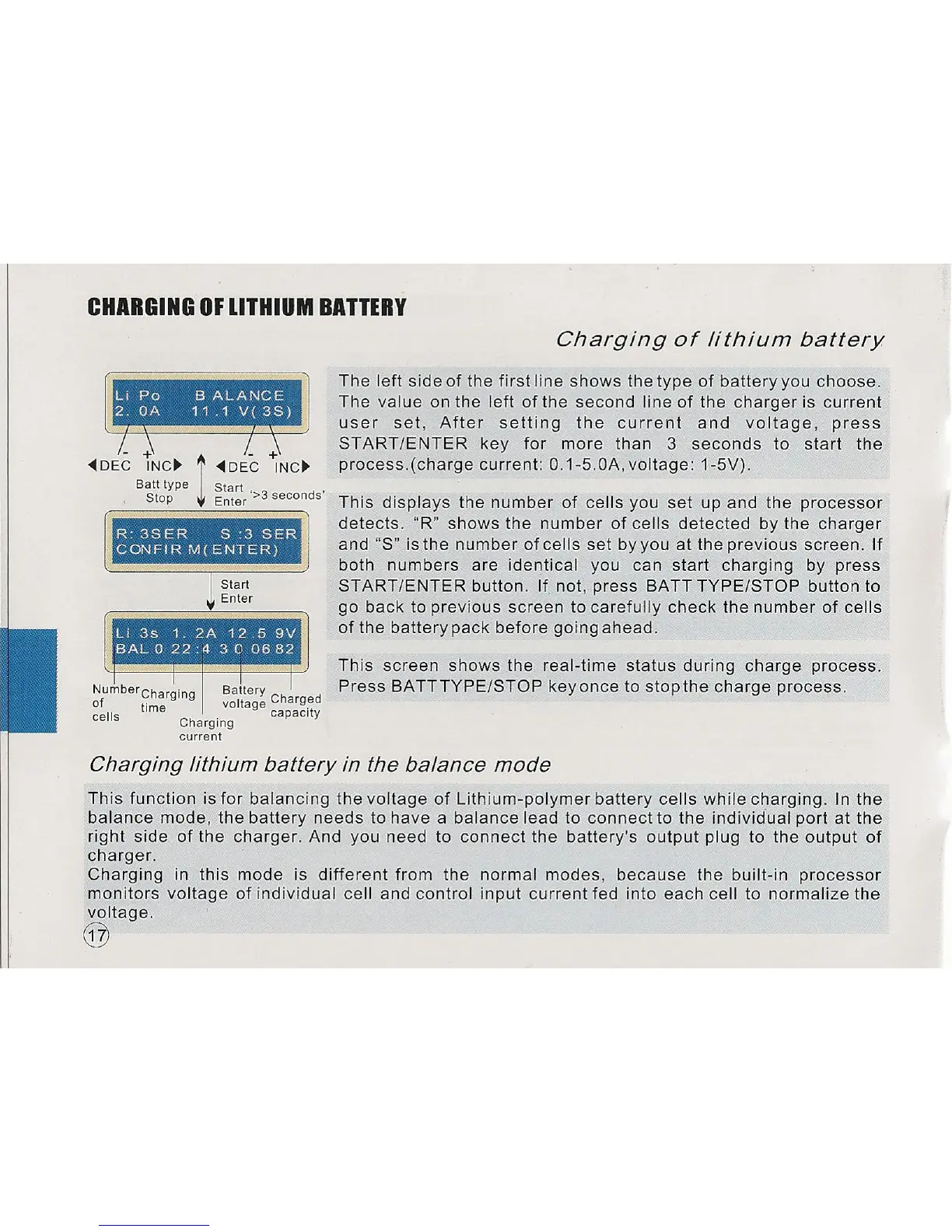

CHARGING OF LITHIUM BATTERY
I""",
"'DEC INC~
I
"'DEC INC~
Batt type Start
Stop Enter
'>3
seconds'
[ 1
I
Start
~ Enter
Li 3s 1. 2A 12 5 9V
BAL
a
22 4 3 0 0682
NumberCharging
~~IIS
time . voltage capacity
Charging
current
Charging
of
lithium battery
The left side of the first line shows the type of battery you choose.
The value on the left of the second line of the charger is current
user set, After setting the current and voltage, press
START/ENTER key for more than 3 seconds to start the
process.(charge current: O.1-5.0A, voltage: 1-5V).
This displays the number of cells you set up and the processor
detects. "R" shows the number of cells detected by the charger
and "S" isthe number of cells set byyou at the previous screen. If
both numbers are identical you can start charging by press
START/ENTER button. If not, press BATT TYPE/STOP button to
go back to previous screen to carefully check the number of cells
of the battery pack before going ahead.
This screen shows the real-time status during charge process.
Press BATT TYPE/STOP key once to stop the charge process.
Charging lithium battery in the balance mode
This function is for balancing the voltage of Lithium-polymer battery cells while charging. In the
balance mode, the battery needs to have a balance lead to connect to the individual port at the
right side of the charger. And you need to connect the battery's output plug to the output of
charger.
Charging in this mode is different from the normal modes, because the built-in processor
monitors voltage of individual cell and control input current fed into each cell to normalize the
voltage.
@
