PPI SMART ROLL - Return Smart Roll Diagram & Parts List

22
3. Remove the cover from the 90° elbow conduit access
port and route the Smart Roll wires and the wires from
the control box through the conduit opening in the 90°
elbow access port and out the rectangular opening.
4. Attach the conduit to the 90° elbow access port.
5. Attach the Smart Roll wires to the wires from the control
box. Cut wires to proper length to fit in junction box. DO
NOT apply power to the sensor at this time. The Smart
Monitor or PLC provides the power for the Smart Roll.
To avoid damage, verify the circuit meets the sensor
specifications shown in section A4 prior to applying
power:
6. Reinstall junction box lid and tighten screws to secure.
7. Proceed to Section 4: “Wiring the Smart Monitor”.
RETURN SMART ROLL DIAGRAM & PARTS LIST:
See Flat Return Smart Roll Part Numbers in section A6.

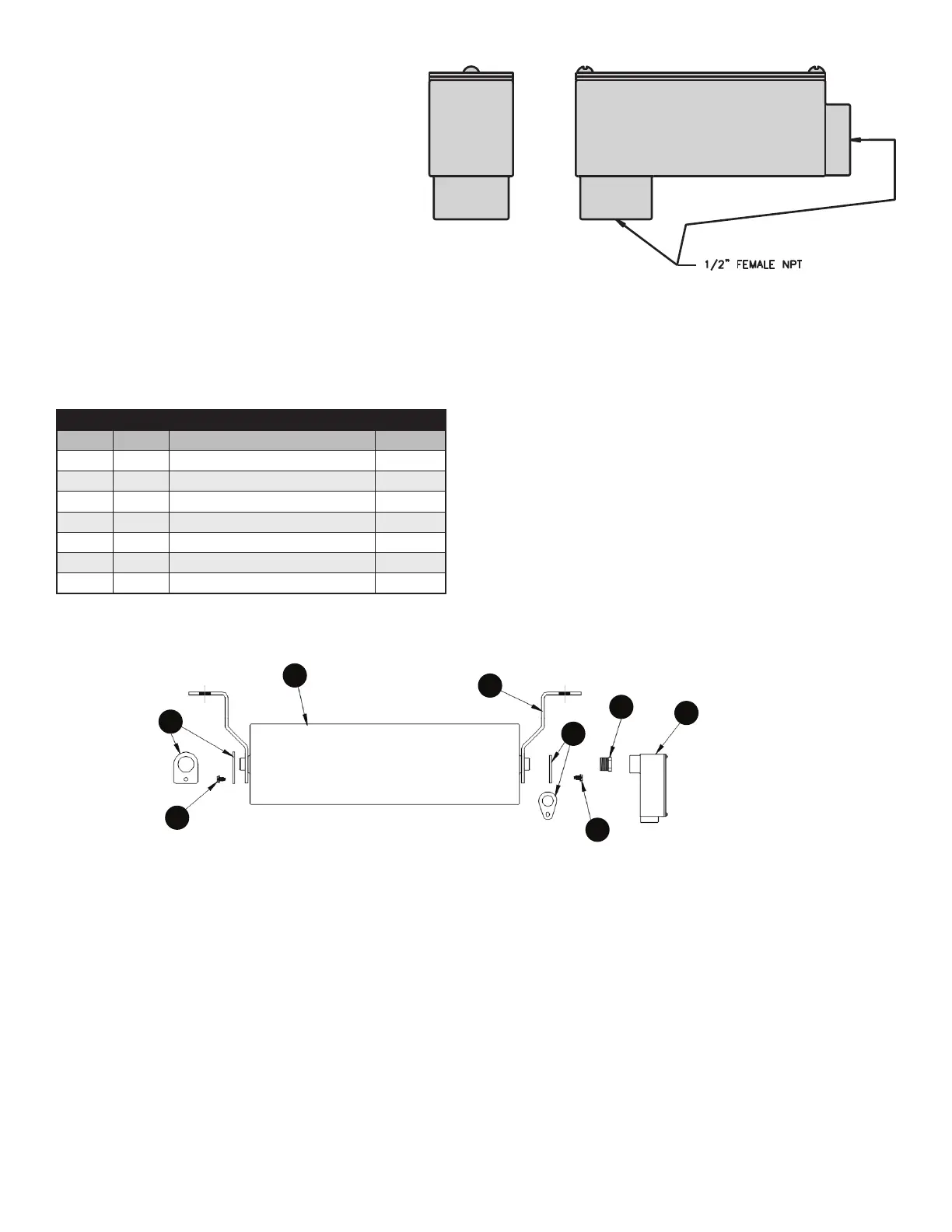

FIGURE 3.1: 90° Elbow Conduit Access Port.
ASSEMBLY COMPONENTS
ITEM QTY DESCRIPTION PART #
1 1 Smart Roll TABLE
2 1 Drop Bracket N/A
3 1 D End Clip 47117
4 2 #12-3/8” Self Tapping Screw 31880
5 1 B End Clip 31800
6 1 Hex Bushing 34461
7 1 90º Elbow Conduit Access Port 34452
