PPI SMART ROLL - Clean Side Return Smart Roll Diagram and Parts List

7

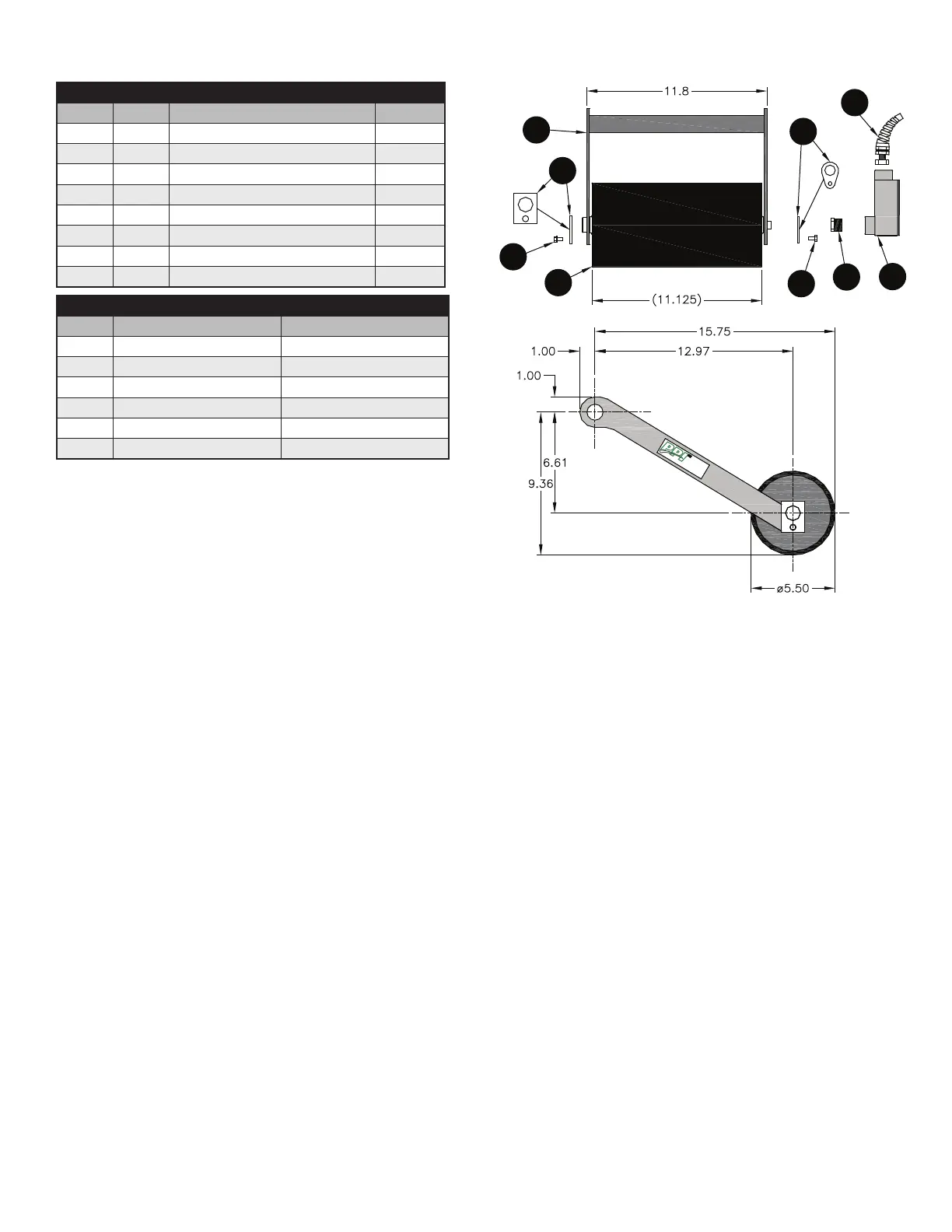

CLEAN SIDE RETURN SMART ROLL DIAGRAM & PARTS LIST
ASSEMBLY COMPONENTS
ITEM QTY DESCRIPTION PART #
1 1 Smart Roll TABLE
2 1 CSR Bracket 40820
3 1 D End Clip 47117
4 2 #12-3/8” Self Tapping Screw 31880
5 1 B End Clip 31800
6 1 Hex Bushing 34461
7 1 90º Elbow Conduit Access Port 34452
8 1 Strain Relief Fitting 40824
CSR SMART ROLLS
ROLL Ø
ASSEMBLY PART #
ROLL ONLY PART #
5.5 SAD5CSRSB – 1PL4 SAD5TE30SB – 1PL4
5.5 SAD5CSRSB – 2PL4 SAD5TE30SB – 2PL4
5.5 SAD5CSRSB – 6PL4 SAD5TE30SB – 6PL4
6.5 SAD6CSRSB – 1PL4 SAD6TE30SB – 1PL4
6.5 SAD6CSRSB – 2PL4 SAD6TE30SB – 2PL4
6.5
SAD6CSRSB – 6PL4
SAD6TE30SB – 6PL4
2
3
4
1
5
8
7
6
4
