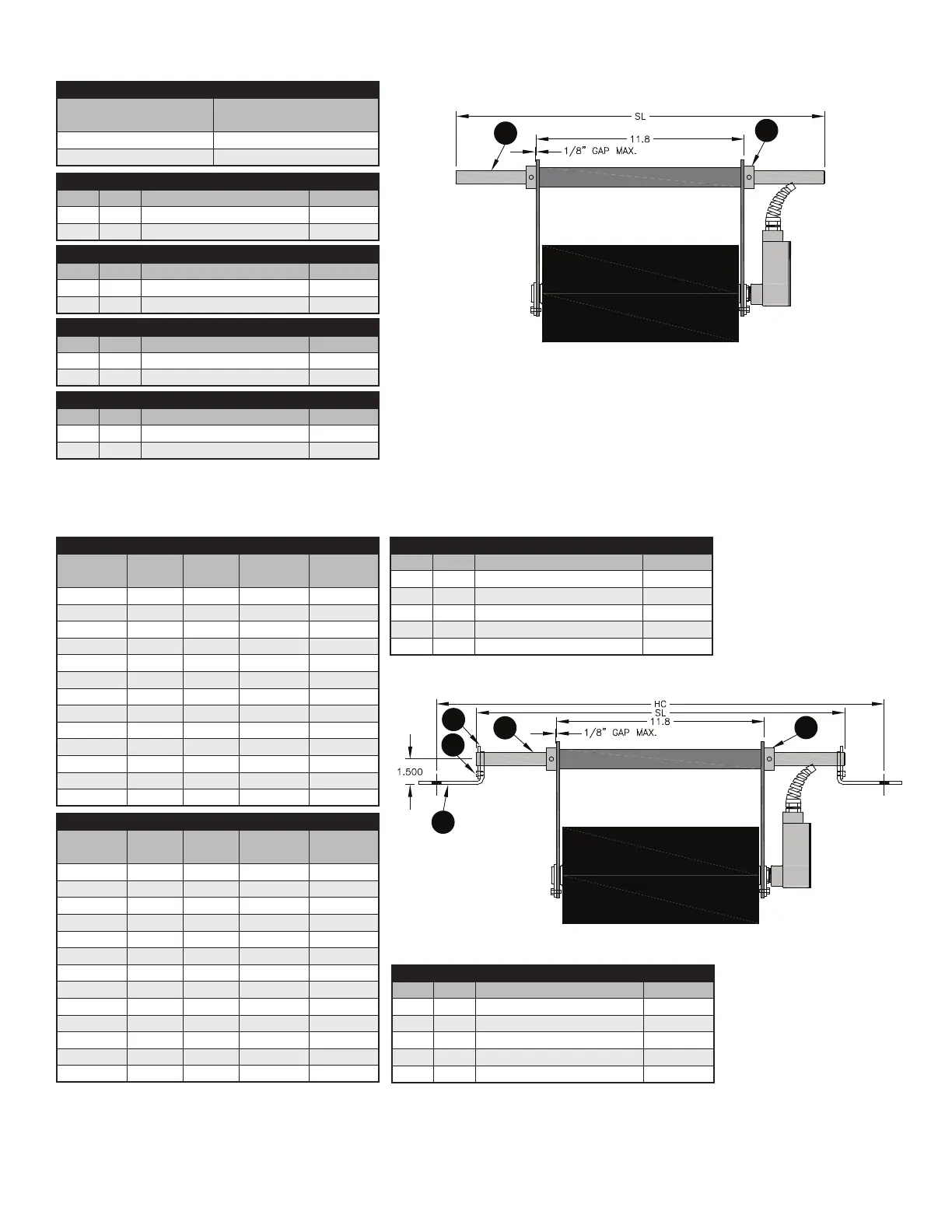

PPI SMART ROLL - Pivot;Hinge Option 1: Welding Pivot Rod; Pivot;Hinge Option 2: Use of Mounting Brackets

6
PIVOT / HINGE OPTION : WELDING PIVOT ROD TO CONVEYOR FRAME
PIVOT / HINGE OPTION : USE OF MOUNTING BRACKETS
ASSEMBLIES
CARBON STEEL
ASSEMBLY PART #
STAINLESS STEEL
ASSEMBLY PART #
42971 42971S4
42972 42972S4
COMPONENTS 4 FEET LONG – CARBON STEEL
ITEM QTY DESCRIPTION PART #
1 1 3/4” diameter x 4’ long rod 43180
2 2 Shaft Collar SC0012
COMPONENTS 7 FEET LONG – CARBON STEEL
ITEM QTY DESCRIPTION PART #
1 1 3/4” diameter x 7’ long rod 43181
2 2 Shaft Collar SC0012
COMPONENTS 4 FEET LONG – STAINLESS STEEL
ITEM QTY DESCRIPTION PART #
1 1 3/4” diameter x 4’ long rod 43180S4
2 2 Shaft Collar - Stainless Steel SC0012S4
COMPONENTS 7 FEET LONG – CARBON STEEL
ITEM QTY DESCRIPTION PART #
1 1 3/4” diameter x 7’ long rod 43181S4
2 2 Shaft Collar SC0012S4
1
2
1
2
3
4
5
COMPONENTS – CARBON STEEL RODS
ITEM QTY DESCRIPTION PART #
1 1 3/4” diameter rod TABLE
2 2 Shaft Collar SC0012
3 2 1-1/2” End Stand 15001
4 2 C End Clip 31790
5 2 #12-3/8” Self Tapping Screw 31880
COMPONENTS – STAINLESS STEEL RODS
ITEM QTY DESCRIPTION PART #
1 1 3/4” diameter rod TABLE
2 2 Shaft Collar SC0012S4
3 2 1-1/2” End Stand 15001
4 2 C End Clip 31790
5 2 #12 x 3/8 Self Tapping Screw 31880
ASSEMBLIES WITH RODS – STAINLESS STEEL
ASSEMBLY
PART #
SHAFT
PART #
SHAFT
LENGTH
(HC)
BELT
WIDTH
CSR-24S4 43521S4 28.625 33.0 24
CSR-30S4 43522S4 34.625 39.0 30
CSR-36S4 43523S4 40.625 45.0 36
CSR-42S4 43524S4 46.625 51.0 42
CSR-48S4 43525S4 52.625 57.0 48
CSR-54S4 43526S4 58.625 63.0 54
CSR-60S4 43527S4 64.625 69.0 60
CSR-66S4 43528S4 70.625 75.0 66
CSR-72S4 43529S4 76.625 81.0 72
CSR-78S4 43670S4 82.625 87.0 78
CSR-84S4 43671S4 88.625 93.0 84
CSR-90S4 43672S4 94.625 99.0 90
CSR-96S4 43673S4 100.625 105.0 96
ASSEMBLIES WITH RODS – CARBON STEEL
ASSEMBLY
PART #
SHAFT
PART #
SHAFT
LENGTH
(HC)
BELT
WIDTH
CSR-24 43521 28.625 33.0 24
CSR-30 43522 34.625 39.0 30
CSR-36 43523 40.625 45.0 36
CSR-42 43524 46.625 51.0 42
CSR-48 43525 52.625 57.0 48
CSR-54 43526 58.625 63.0 54
CSR-60 43527 64.625 69.0 60
CSR-66 43528 70.625 75.0 66
CSR-72 43529 76.625 81.0 72
CSR-78 43670 82.625 87.0 78
CSR-84 43671 88.625 93.0 84
CSR-90 43672 94.625 99.0 90
CSR-96 43673 100.625 105.0 96
1
2
1
2
3
4
5
