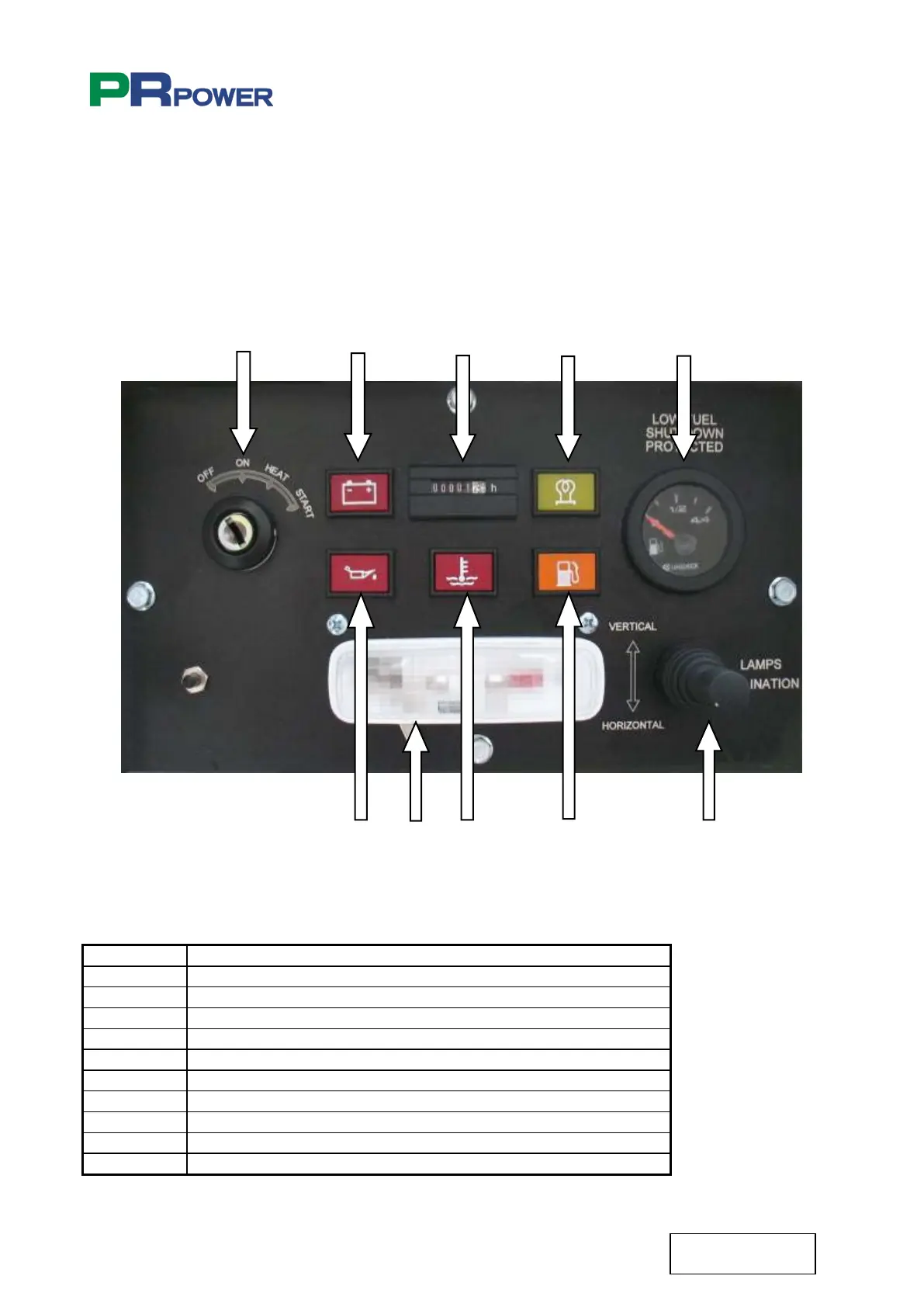

11. IDENTIFICATION OF INNER COMPONENTS
11.1 UPPER CONTROLS DESCRIPTION
Items
Description
23
Starting key
24
Battery charge signal lamp
25
Hour meter
26
Preheater signal lamp
27
Fuel gauge – Monitor fuel level
28
Lever for floodlights group tilt
29
Low fuel level signal lamp
30
High water temperature signal lamp
31
Lamp switch
32
Low oil pressure signal lamp
