HOW TO DISMANTLE SYSTEM 4000
First, remember to demount the connectors with hazardous voltages.

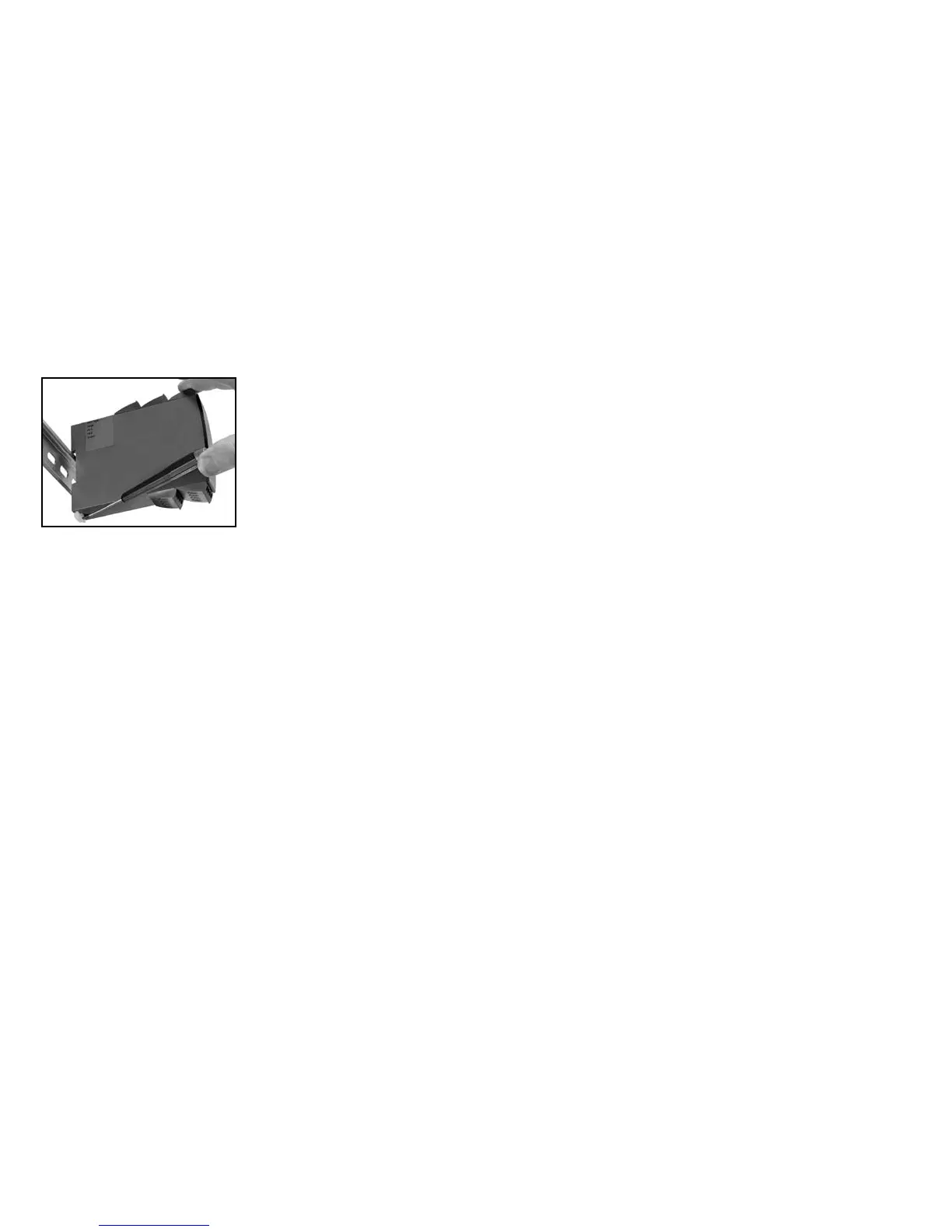

Picture 1:
Detach the device from the DIN rail
by lifting the bottom lock.
When front LED lights red / display shows AO.ER
PR 4116 is designed as a SIL 2 device with a high safety level. Therefore, a
continuous measurement of the outgoing current is carried out on a 4...20
mA output signal. If the current is 0, an error mode switches on the red front
LED and disables the relays. This function is not a default option but must be
actively selected in the menu. The error mode can only be reset by switching
off and then switching on the supply voltage to the device.
UNIVERSAL TRANSMITTER
PReasy 4116
• Input for RTD, TC, Ohm, potentiometer, mA and V
• 2-wire supply > 16 V
• FM-approved for installation in Div. 2
• Output for current, voltage and 2 relays
• Universal AC or DC supply
Advanced features
• Programmableviadetachabledisplayfront(4501),processcalibration,signal
and relay simulation, password protection, error diagnostics and selection of
help text in several languages.
Application
• Linearised,electronictemperaturemeasurementwithRTDorTCsensor.
• Conversionoflinearresistancevariationtoastandardanaloguecurrent/
voltage signal, i.e. from solenoids and butterfly valves or linear movements
with attached potentio meter.
• Powersupplyandsignalisolatorfor2-wiretransmitters.
• Processcontrolwith2pairsofpotential-freerelaycontactsandanalogue
output.
• Galvanicseparationofanaloguesignalsandmeasurementoffloatingsignals.
• The4116isdesignedaccordingtostrictsafetyrequirementsandisthussuit-
able for application in SIL 2 installations.
Technical characteristics
• When4116isusedincombinationwiththe4501display/programmingfront,
all operational parameters can be modified to suit any application. As the
4116 is designed with electronic hardware switches, it is not necessary to
open the device for setting of DIP switches.
• Agreen/redfrontLEDindicatesnormaloperationandmalfunction.Ayellow
LED is ON for each active output relay.
• Continuouscheckofvitalstoreddataforsafetyreasons.
• 4-port2.3kVACgalvanicisolation.
