PR PReasy 4116 - Applications; Technical Characteristics

+
-
12
14
13
11
10 V
1 V
+
-
10 V
1 V
24
23
22
21
33
32
31
4 3 2
+
+
44
43
42
41
*
40
41

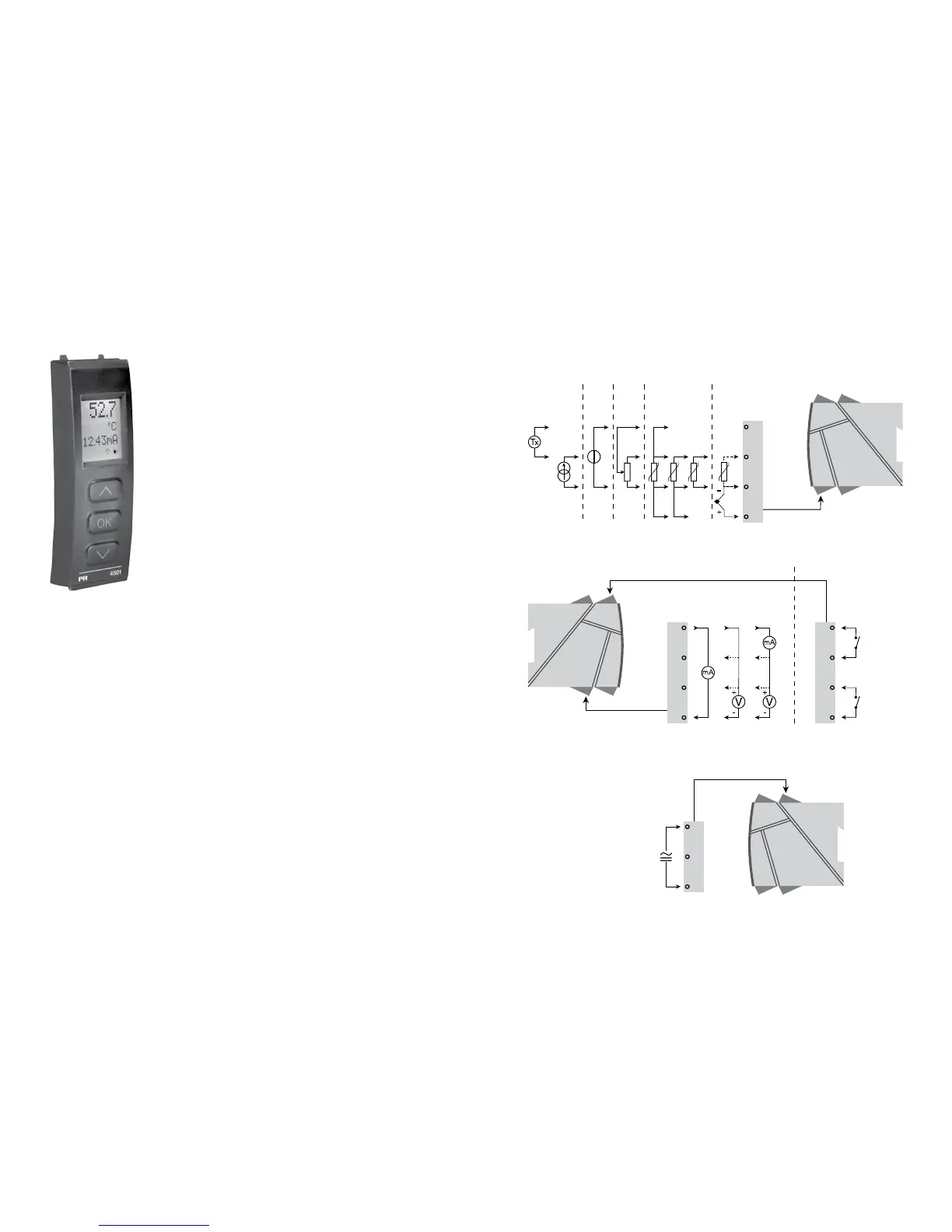

PR 4501 DISPLAY / PROGRAMMING FRONT
Functionality
The simple and easily understandable PReasy menu
structure and the explanatory help texts guide you
effortless ly and automatically through the configuration
steps, thus making the product very easy to use.
Functions and configuration options are described in the
section ”Configuration / operating the function keys”.
Application
• Communicationsinterfaceformodificationofoperationalparametersin4116.
• Canbemovedfromone4116devicetoanotheranddownloadthe
configuration of the first transmitter to subsequent transmitters.
• Fixeddisplayforreadoutofprocessdataandstatus.
Technical characteristics
• LCD display with 4 lines; Line 1 (H=5.57 mm) shows input signal, line 2
(H=3.33 mm) shows units, line 3 (H=3.33 mm) shows analogue output or tag
no. and line 4 shows communication and relay status.
• Programmingaccesscanbeblockedbyassigningapassword.The
password is saved in the transmitter in order to ensure a high degree of
protection against unauthorised modifications to the configuration.
Mounting / installation
• Click4501ontothefrontof4116.
APPLICATIONS
Input signals:
Current
Volt -
age
Potenti-
ometer
RTD and lin.R TC
Connect., wires
Output signals:
Relays
Supply:
21.6...253 VAC
or
19.2...300 VDC
Analogue, 0/4...20 mA and voltage
Order separately: 5910 CJC connector.
See the connection drawing on page 39.
