Machine description
PHOENIX 401 BASIC PULS forceArc
Item No.: 099-004838-PRA01 15

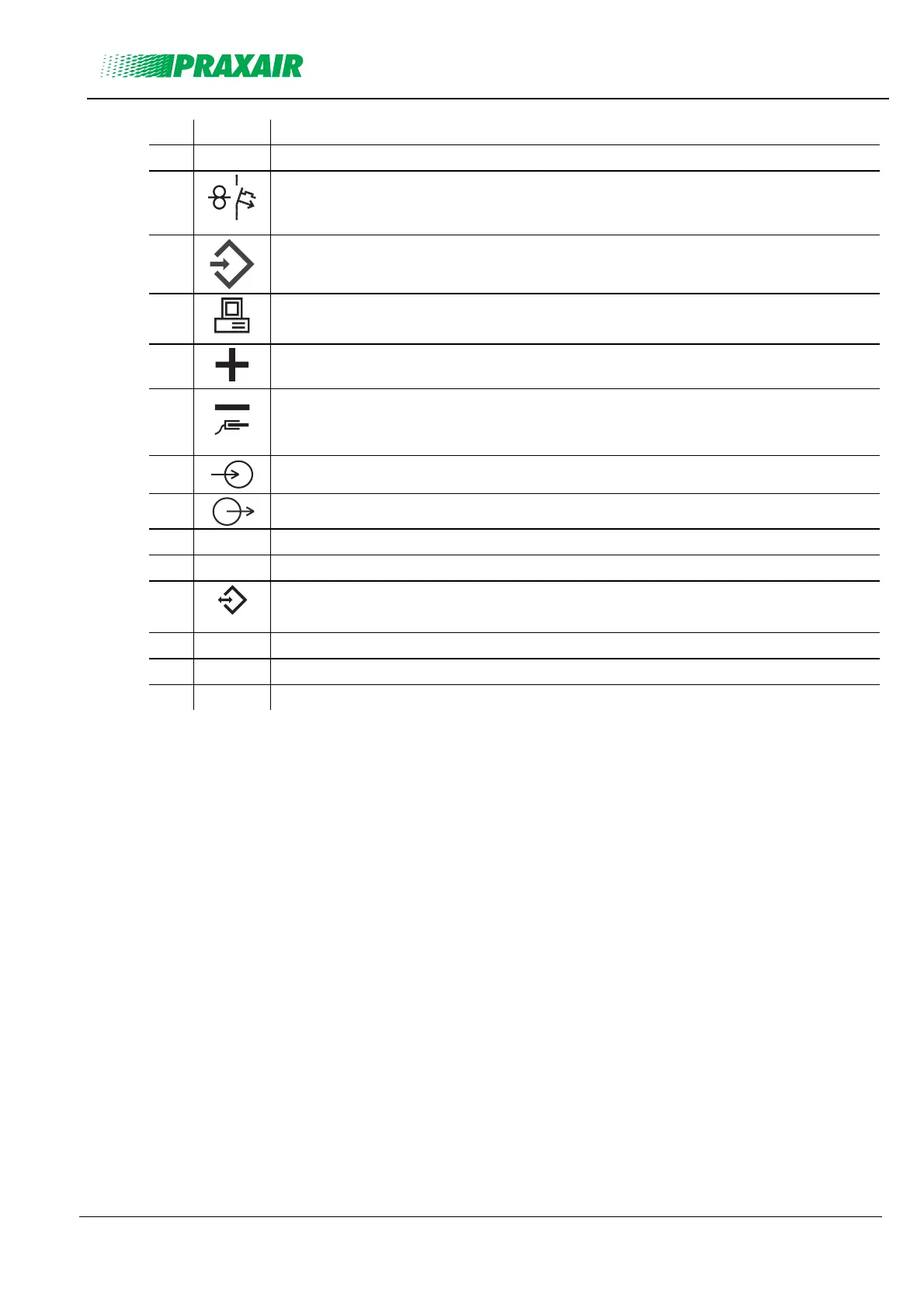

Item Symbol Description 0
1
Lifting lug
2
42V/4A
"Automatic cutout" key button
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
3
19-pole connection socket (analogue)
Wire feed unit control lead connection
4
PC INT
PC interface, serial (D-SUB connection socket, 9-pole)
5
Connector plug, welding current "+"
Welding current connection on wire feed unit
6
Connection socket, “-” welding current
• MIG/MAG welding: Workpiece connection
• MIG/MAG cored wire welding: Welding current connection on wire feed unit
7
Coolant return from the DV device (red rapid-action closure coupling)
8
Coolant water supply to the DV device (blue rapid-action closure coupling)
9 Conveyor rolls, fixed castors
10 Cooling air outlet
11
analog
Automation interface, 19-pole (analogue)
(see Function Specification chapter)
12 Safety chain
13 Strain relief with mains connection cable
14 Cylinder bracket
