5 Functional characteristics
5.1 Machine control – Operating elements
5.1.1 Wire feed machine control

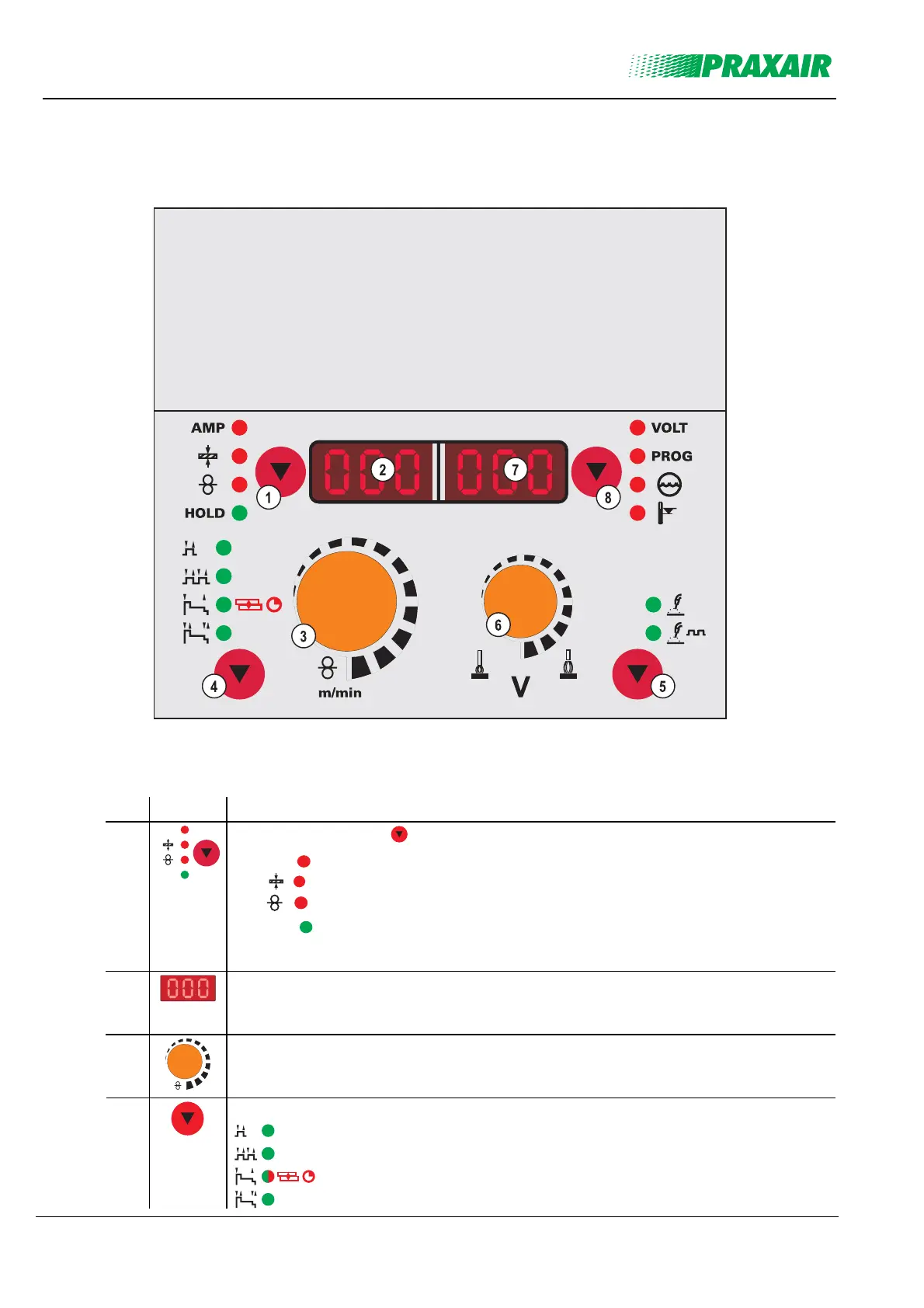

Figure 5-1
Item Symbol Description 0
“Parameter selection ” (left)
AMP
Welding current (nominal, actual and hold values)
Material thickness (nominal value)
Wire speed (actual, nominal and hold values)
1
HOLD
AMP
HOLD
After each completed welding process, the last parameter values
used for the welding process are shown on the display in the main
program; the signal light is on
2
LCD display, 3-digit (left)
Display of the parameters and values: Welding current, material thickness, wire speed,
hold values
3
m/min
"Wire speed / welding parameter setting" rotary dial
Infinitely adjustable setting of the wire speed from 0.5m/min to 24m/min
(welding performance, one-dial operation)
"Select operating mode" button
Non-latched
Latched
Non-latched special (LED green) / MIG spots (LED red)
4
Special latched
