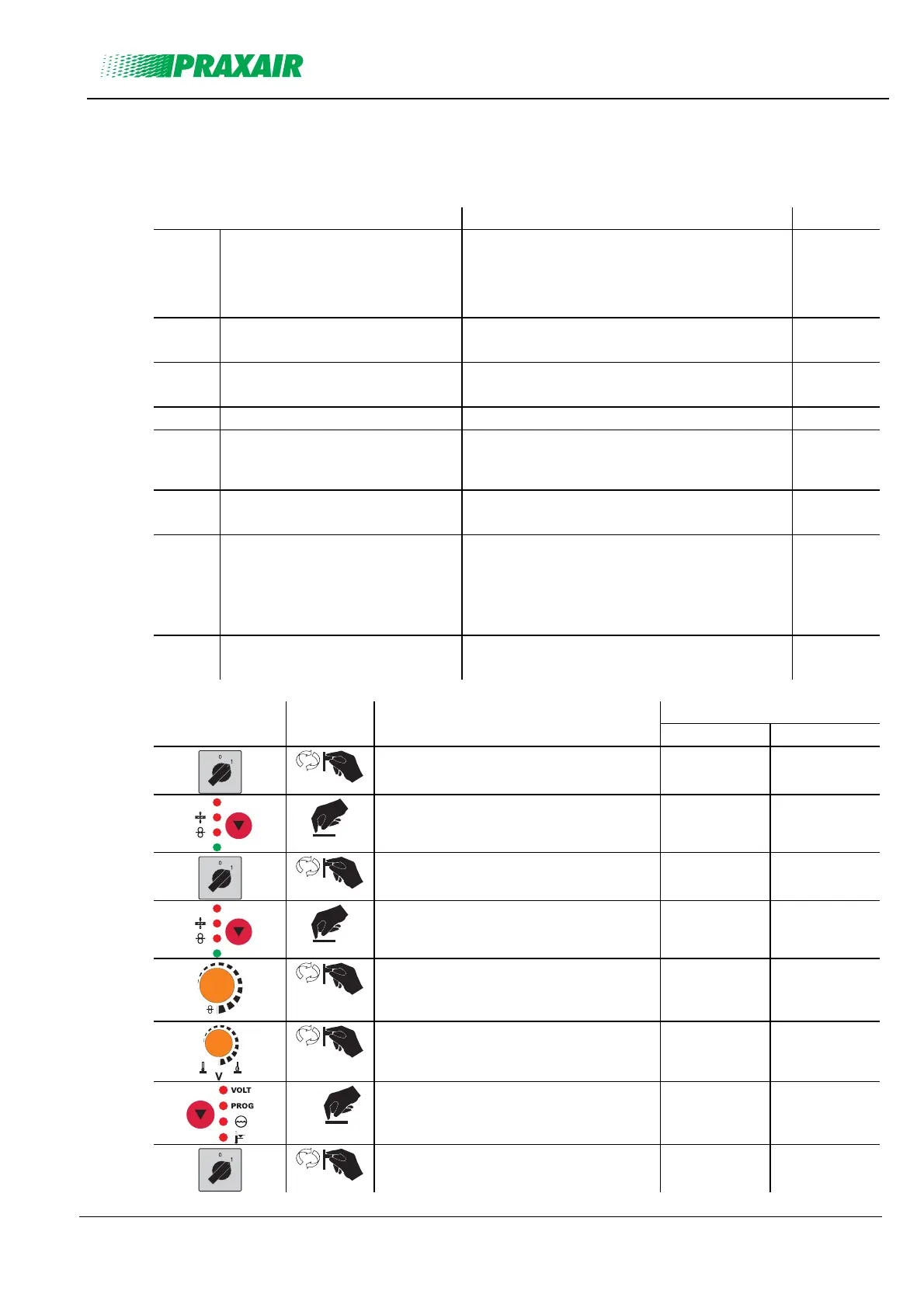

5.2.6 Special parameter, “DRIVE 4 P wire feed units”
The special parameters cannot be viewed directly since they are normally only set and stored once. The
machine control offers the following special functions:
5.2.6.1 Special parameters list
Function Setting options Ex works
P1 Ramp time for wire creep 0 = normal creep
(10 sec ramp time)
1 = quick creep
(3 sec ramp time)
0
P2 Program "0", releasing the
program block
0 = blocking of P0
1 = no blocking of P0
0
P3 Display mode torch power control 0 = normal display
1= flashing display
0
P4 Program restriction Programs 2 to max. 15 15
P5 Special cycle in the special
latched and non-latched
operating modes
0 = normal (previous) non-latched/latched
1 = DV3 cycle for non-latched/latched
0
P6 Enable special JOBs SP1 to SP3
(M3.70 only)
0 = no enabling
1 = enabling of Sp1-3
0
P7 Correction mode, limit value
setting
0 = correction mode switched off
1 = correction mode switched on
The control indicates that the correction
operation is switched on by flashing the "main
program (PA)" LED
0
P8 Program changeover with
standard torch
0 = normal (previous) latched
1 = P8 function on (special latched)
0
5.2.6.2 Selecting, changing and saving parameters
Display
Operating
Element
Action Result
Left Right
Switch off the welding machine - -
HOLD
AMP
Keep the key button pressed - -
Switch on the welding machine - -
HOLD
AMP
Release the key button P 1 Value
m/min
Parameter selection
(see list of special parameters)
P 1-7 Value
Parameter setting
(see list of special parameters)
P x Value
1 x
Saving the special parameters PHO 370
Switch of the welding unit and restart in
order to put the modifications into effect
- -
