5.1.1.1 Covered operating elements

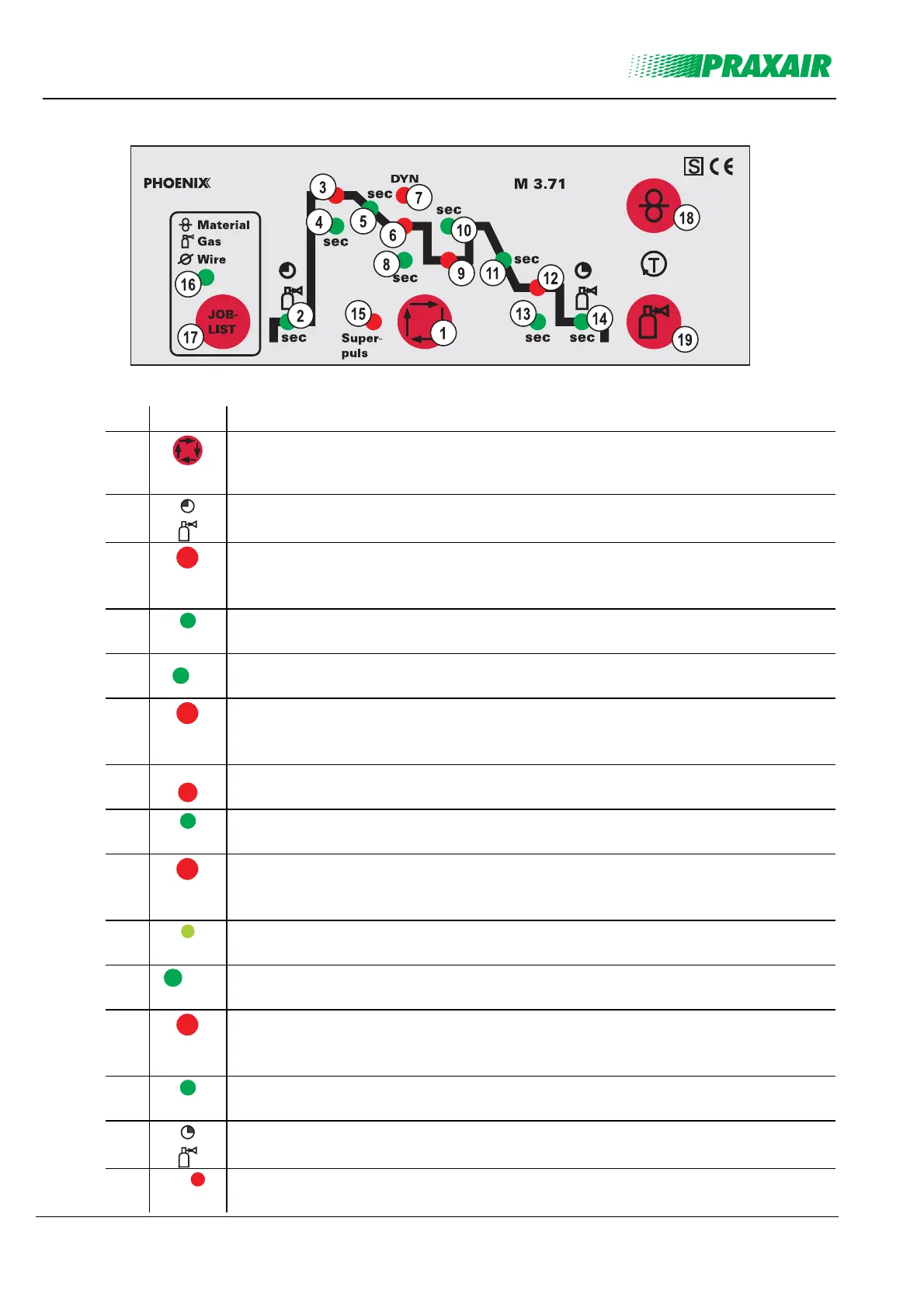

Figure 5-2
Item Symbol Description 0
1
“Select welding parameters” button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
2
LED "Gas pre-flow time"
Setting range 0.0 sec to 20.0 sec
3
LED "start program (P
START
)"
• Wire speed setting range 1 % to 200 % of main program P
A
• Setting range for arc length correction -9.9 V to +9.9 V
4
sec
LED "Start time"
Absolute setting range 0.0 sec to 20.0 sec (0.1s increments).
5
sec
LED "Duration of slope from program P
START
to main program P
A
"
Setting range 0.0 sec to 20.0 sec (0.1s increments).
6
LED "Main program (P
A
)"
• Wire speed setting range WF-min. to WF-max.
• Setting range for arc length correction -9.9 V to +9.9 V
7
DYN
LED "Dynamics"
Setting range -40 to +40
8
sec
LED "Duration of main program P
A
"
Absolute setting range 0.0 sec to 20.0 sec (0.1s increments) for superpulse.
9
LED "Reduced main program (P
B
)"
• Wire speed setting range 1 % to 200 % of main program P
A
• Setting range for arc length correction -9.9 V to +9.9 V
10
sec
LED "Duration of reduced main program P
B
"
Absolute setting range 0.0 sec to 20.0 sec (0.1s increments) for superpulse.
11
sec
LED "Slope duration from program P
A
or P
B
to end program P
END
"
Setting range 0.0 sec to 20.0 sec (0.1s increments).
12
LED "End program (P
END
)"
• Wire speed setting range 1 % to 200 % of main program P
A
• Setting range for arc length correction -9.9 V to +9.9 V
13
sec
LED "Duration of end program P
END
"
Setting range 0.0 sec to 20.0 sec (0.1s increments).
14
LED "Gas post-flow time"
Setting range 0.0 sec to 20.0 sec
15
Super-
puls
"Superpulse" LED
On when the function is activated
