Functional characteristics
Machine control – Operating elements
Item No.: 099-004838-PRA01 21

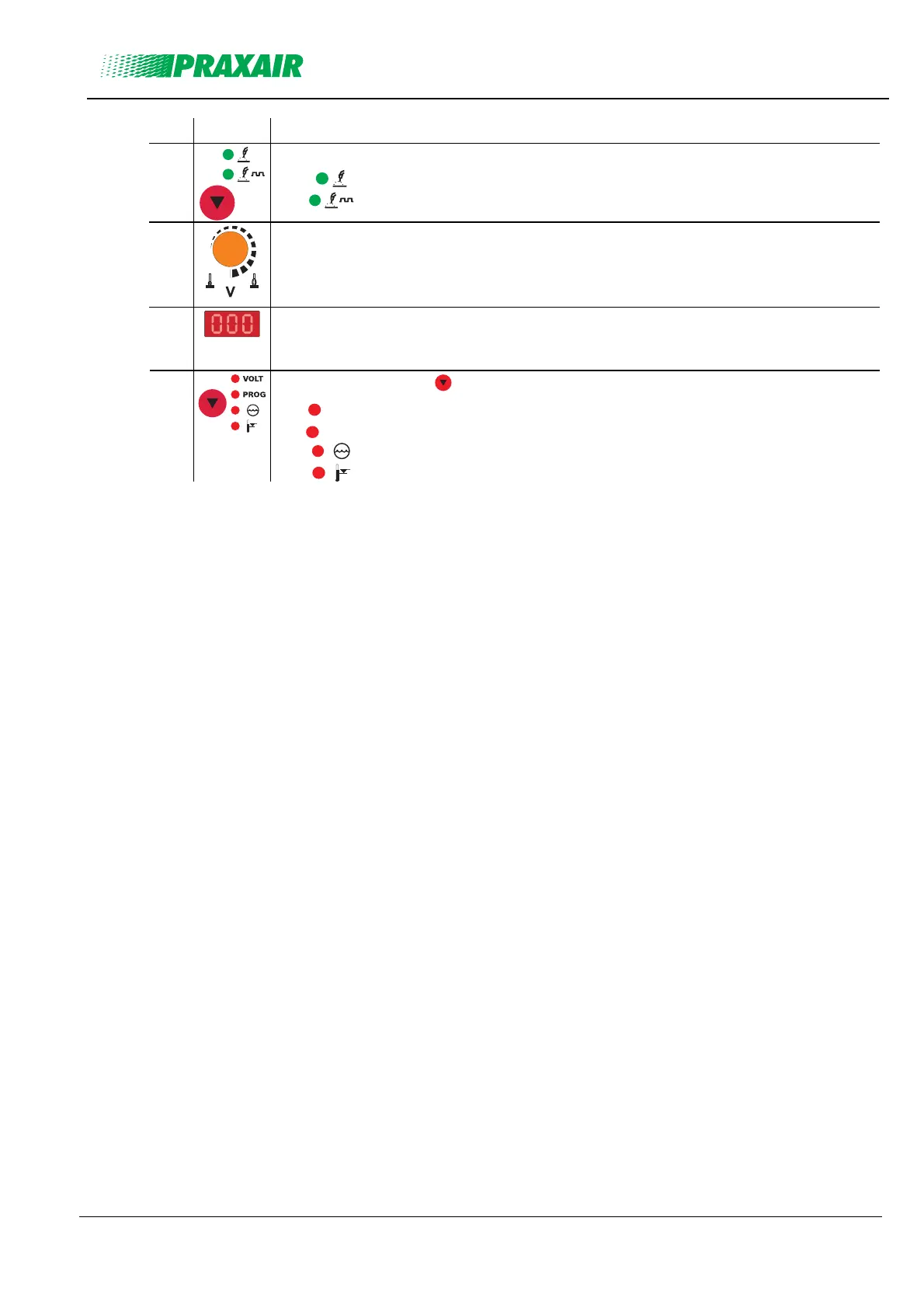

Item Symbol Description 0
"Select welding parameters" button
MIG/MAG standard welding
5
MIG/MAG pulse arc welding
6
"Arc length correction / program number" rotary dial
• Arc length correction from -9.9 V to +9.9 V
• Setting the program number 0-15 (not possible if accessory components such as
program torches is connected)
7
LCD display, 3-digit (right)
Display of the parameters and values: Welding voltage, program number, coolant low,
temperature error
“Parameter selection ” button (right)
VOLT
Welding voltage (actual, nominal and hold values)
PROG
Program number
Coolant error
8
Temperature error
