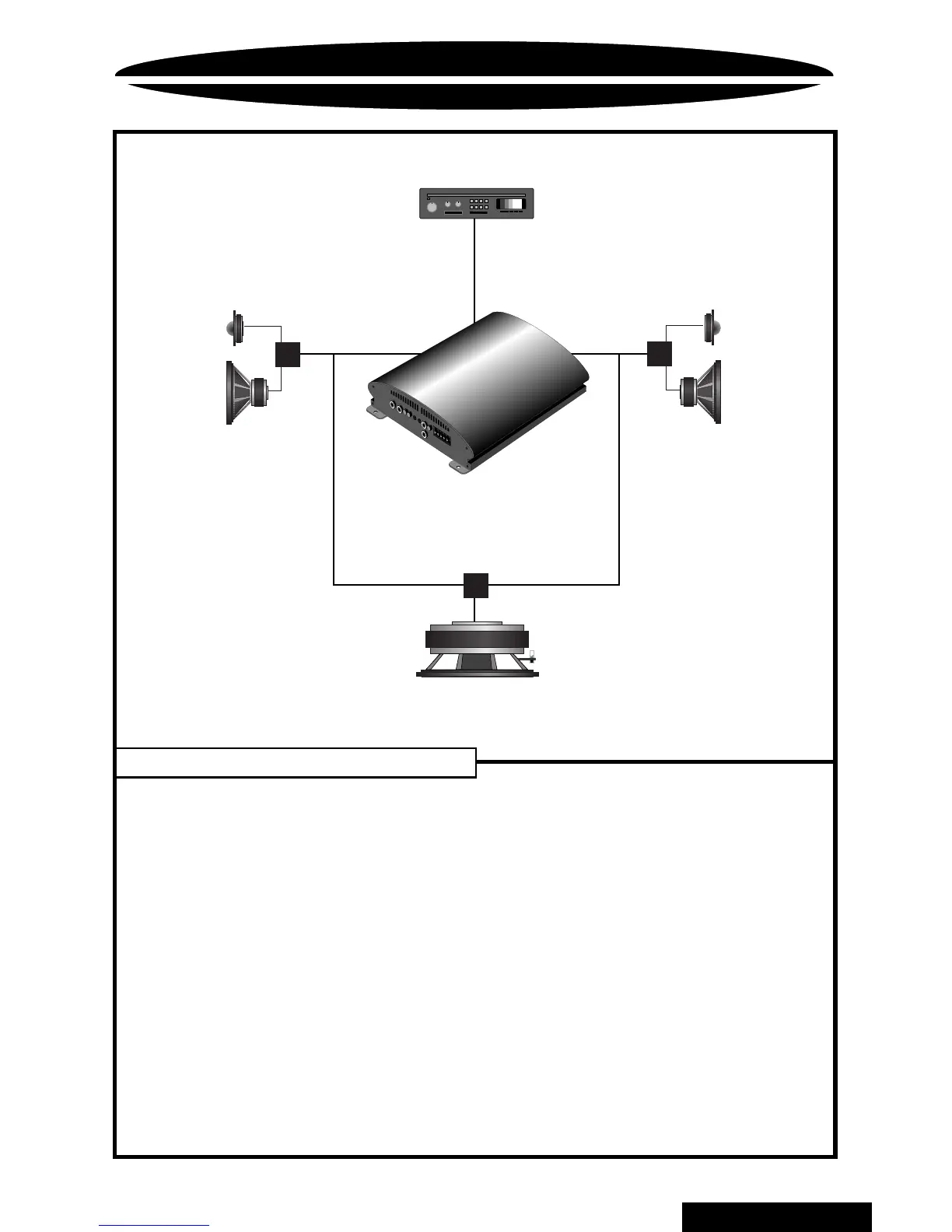

SYSTEM DIAGRAM
ONE
The ability to run stereo speakers while simultaneously running a mono
output from the same amplifier is accomplished by running the stereo
speakers normally and tapping into the appropriate wires for the "mixed
mono" channel (left channel positive for the positive speaker wire and right
channel negative for the negative speaker wire). Speaker impedance should
be no lower than 2 ohms on the stereo channels and 4 ohms on the mono
channel.
NOTE: Passive crossovers must be used for "mixed mono" operation.
Choose a low pass crossover around 100Hz for your subwoofer, then
choose a high pass crossover for your stereo channels. The high pass
crossover must be at the same or slightly higher frequency than the low
pass crossover to maintain the correct impedance. See your
PrecisionPower
dealer or call
1-800-62POWER
for more information about passive
crossovers.
