C524, C524i Elliptical Fitness Crosstrainer
Page 57
Procedure 7.16 - Replace the Rear Cover
1. The rear cover is a four piece cover; front, top, left and right sections. If the front cover
section is being removed, the frame cover must also be removed (See Diagram 7.12).
2. If you are removing either the right or left cover section, it is only necessary to remove the
four screws that fasten the cover section.

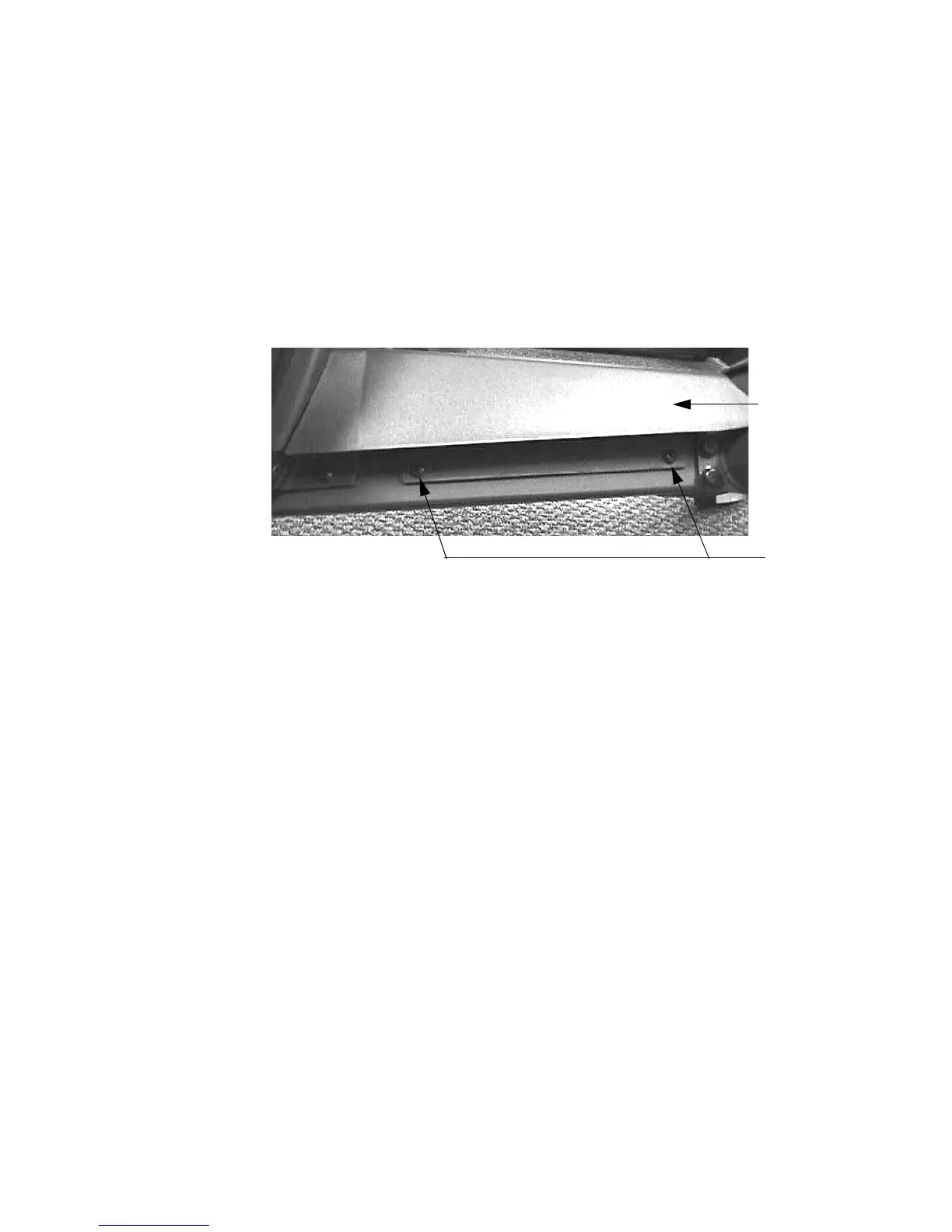

Diagram 7.12 - Frame Cover
3. If you are replacing either the front or top cover section, you must first remove the left and
right cover sections and then remove the cover section being replaced.
4. If you are removing the top cover (See Diagram 7.13), remove the two phillip screws that
fasten the top cover section to the frame upright. Remove three screws that fasten the top
cover section to the rear cover support. Remove two screws that fasten the top cover
section to the front cover section.
5. If you are removing the front cover section, the right, left and top cover sections must be
removed first. Remove the four screws that fasten the frame cover to the frame (See
Diagram 7.13). Remove two phillips screws that fasten the bottom of the front cover section
to the frame. Lift the rear portion of the frame cover and carefully remove the front cover
section. If it is necessary to remove the frame cover, lift the rear of the frame cover, slide the
frame cover out of the ramp and remove the frame cover.
Frame
Cover
Mounting
Screw
To Next Page
