C524, C524i Elliptical Fitness Crosstrainer
Page 65
Procedure 7.20 - Replacing a Battery (C524, only)
1. Remove the rear cover
2. Disconnect the red battery lead from terminal M6 of the lower PCA and the black battery
lead from M7 of the lower PCA. See Diagram 7.5.

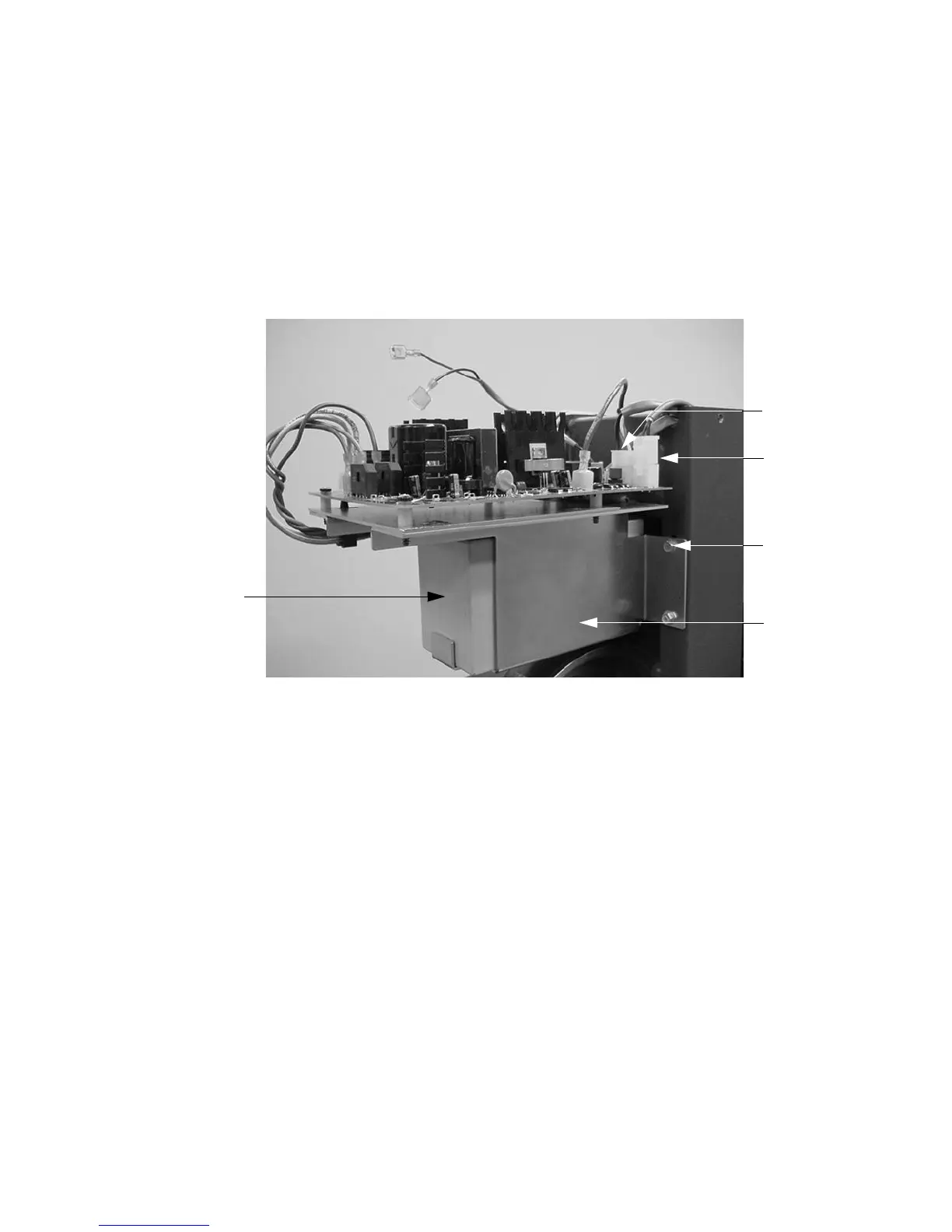

Diagram 7.18 - Lower PCA, Battery Assembly (with battery wires disconnected)
3. Disconnect the J3 and J4 connectors from the lower PCA.
4. While supporting the lower PCA and battery assembly remove the four screws that fasten
the battery bracket to the frame upright.
5. Swing the lower PCA and battery assembly away from the frame upright and slide the
battery out of the battery bracket.
6. Remove the red and black wires form the battery and connect them to the replacement
battery as follows: the red wire to the positive (+) battery terminal and the black wire to the
negative (-) terminal. Note: There is a red dot next to the positive terminal of the battery.
See Diagram 7.18.
Mounting
Screw
Battery
Bracket
Battery
J4
J3
To Next Page
