C524, C524i Elliptical Fitness Crosstrainer
Page 61
Procedure 7.18 - Replacing a Generator (C524, only)
WARNING
When the unit is used, stairarms are in motion or the generator is rotated by any means, the
generator will produce potentially hazardous voltages even when the battery is disconnected.
1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower
PCA.
2. Disconnect the generator output cable from the lower PCA, terminals AC1, AC2 and
AC3.

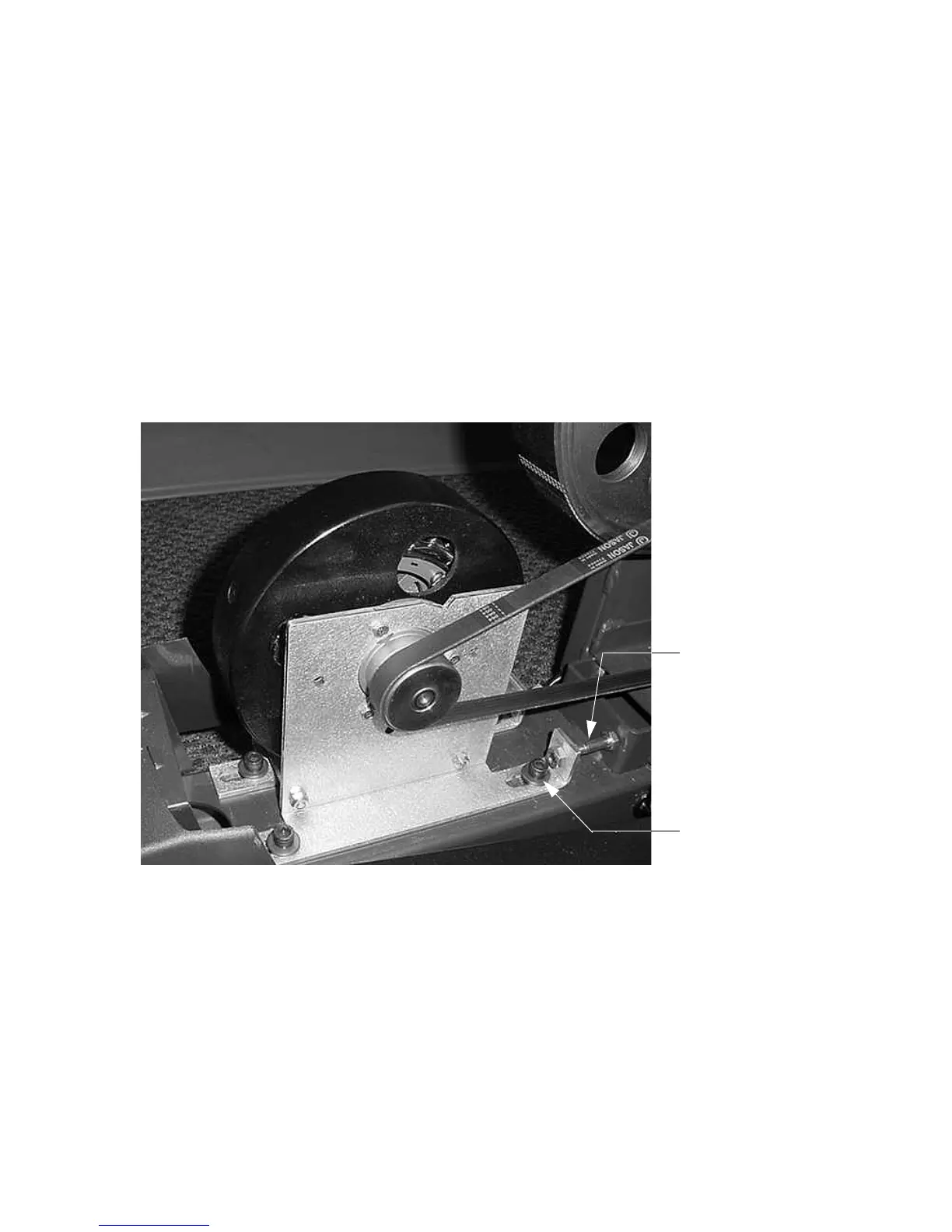

Diagram 7.15 - Generator Mounting
3. Remove the four mounting bolts that fasten the generator to the frame. remove the
generator belt from the generator. Remove the generator adjustment bolt from the
generator. See Diagram 7.15.
4. Mount the adjustment bolt in the replacement generator with a nut on each side of the
generator bracket.
5. Set the generator in its mounting position and hand start the four mounting bolts removed in
step 5 so that the bolts are as far in as possible while still allowing the generator to slide on
its mounting slots. Using the rearward nut on the adjustment bolt tension the generator belt
to 60 pounds, refer to Procedure 5.3. See Diagram 7.15.
Adjustment Bolt
Mounting Bolt
To Next Page
