Precor C932i Service Manual

C932i, C946i Treadmill
20077-112 Page 37
Procedure 6.2 - Replacing the Incline Platform
1. Set the treadmill circuit breaker in the “off” position. Remove the A.C. line cord from the A.C.
outlet.
2. Carefully, lay the treadmill on its side.
3. Remove the hitch pin and clevis pin that fastens the incline motor tube to the incline
platform. While the incline tube is not fastened to the incline platform, care must be taken to
not allow the incline tube to rotate. If the incline tube rotates, the incline motor must be re-
calibrated per Procedure 4.1.
4. Remove the two large hitch pins (one each side) from the incline platform to frame
mounting. See Diagram 6.1. Remove the incline platform mounting pins and remove the
incline platform from the treadmill.

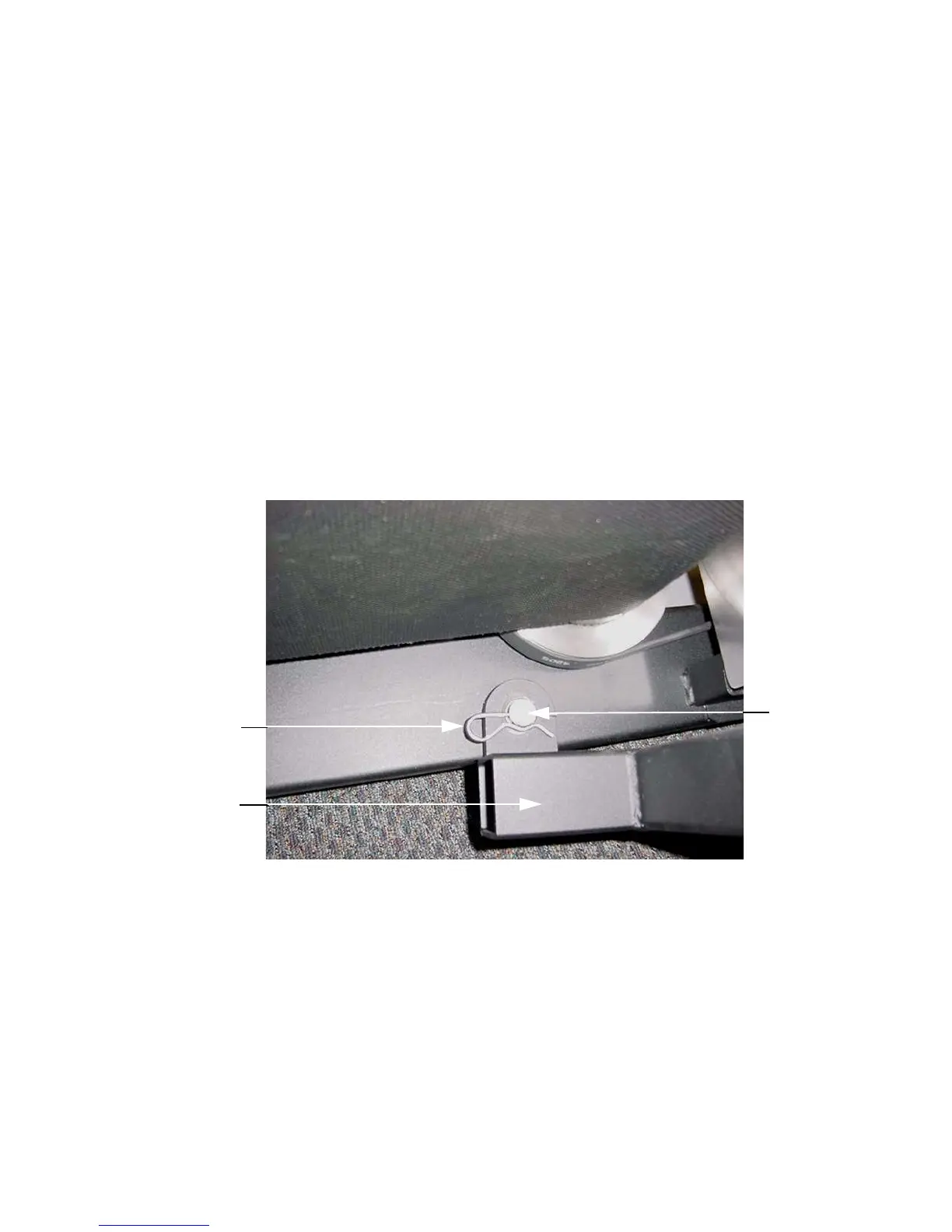

Diagram 6.1 - Incline Platform Mounting
5. Remove the wheels from the old incline platform and remount them on the replacement
incline platform.
6. Set the replacement incline platform in its mounting position. Align the key on the incline
mounting pin with the keyway in the frame and slide the incline mounting pins into place.
See Diagram 6.2. Fasten the incline mounting pins with the hitch pins removed in step 4.
7. If the incline tube or the incline motor’s drive screw have been moved, re-calibrate the
incline motor per Procedure 4.1, at this time.
Mounting Pin
Hitch Pin
Incline
Platform

Precor C932i Specifications

Power

motor power	2.75 hp
power supply	120 VAC (50/60Hz)
current	15 Amps

Performance

speed range	0.5 - 11 mph (1 - 18 kph)
incline range	0 - 15% grade

Weight and Dimensions

length	79 in (201 cm)
width	34 in (84 cm)
height	55 in (140 cm)
weight	280 lbs (126 kg)
shipping weight	320 lbs (144 kg)
belt dimensions	57 in x 20 in (145 cm x 51 cm)
