Precor C932i Service Manual

C932i, C946i Treadmill
Page 48
Procedure 6.10 - Replacing the Upper PCA
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmill’s line cord from
the A.C. outlet.
2. The PCA’s in the display are static sensitive. They can be damaged if proper static
prevention equipment is not used. Attach an anti-static wrist strap to your arm, then connect
the ground lead of the wrist strap to the treadmill’s frame ground.
3. Remove the seven screws that fasten the display back cover and remove the display back
cover as follows. Grasp the display back cover by the top two holes and pull downward to
release the top of the cover. Grasp the top and bottom of the cover and pull towards you and
then downward to remove cover.
4. Disconnect the data cable, 2 CSAFE cables and the heart rate cable from the upper PCA.
See Diagram 6.9.

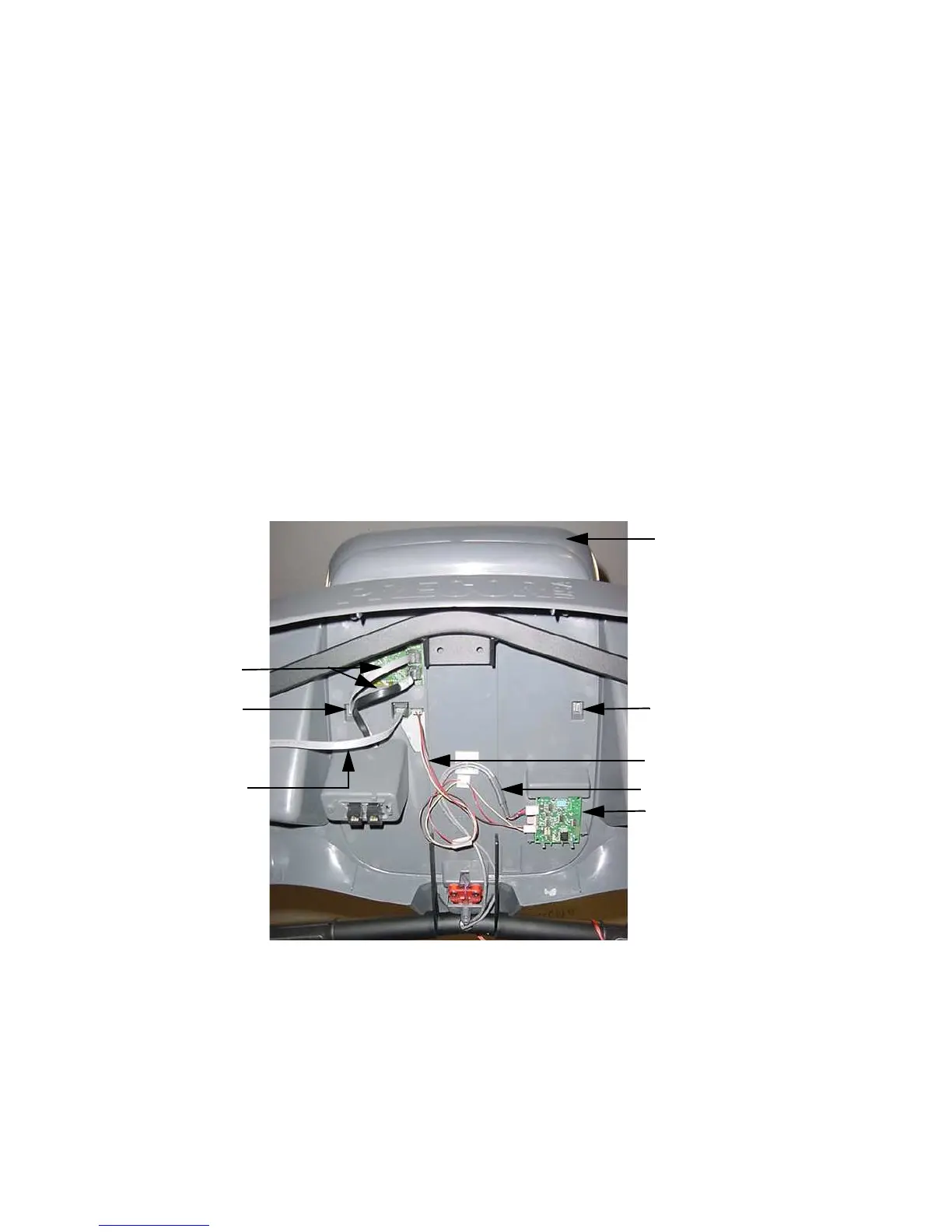

Diagram 6.9 - Upper PCA and Heart Rate PCA Mounting
5. The display cap snaps onto the display with two tabs. Reach into the upper portion of the
display and locate the two display cap tabs. Press the tabs outwards to disengage the tabs
and remove the display cap.
Display Cap
Upper PCA Tab
Upper PCA Tab
CSAFE Cables
Data Cable
HR Cable
HR PCA
Handlebar Cable

Precor C932i Specifications

Power

motor power	2.75 hp
power supply	120 VAC (50/60Hz)
current	15 Amps

Performance

speed range	0.5 - 11 mph (1 - 18 kph)
incline range	0 - 15% grade

Weight and Dimensions

length	79 in (201 cm)
width	34 in (84 cm)
height	55 in (140 cm)
weight	280 lbs (126 kg)
shipping weight	320 lbs (144 kg)
belt dimensions	57 in x 20 in (145 cm x 51 cm)
