2. Grasp the kick cover on either side (see arrows in the following figure) and
press inward slightly so that the notches on the back of the kick cover
unlock from their mounts.

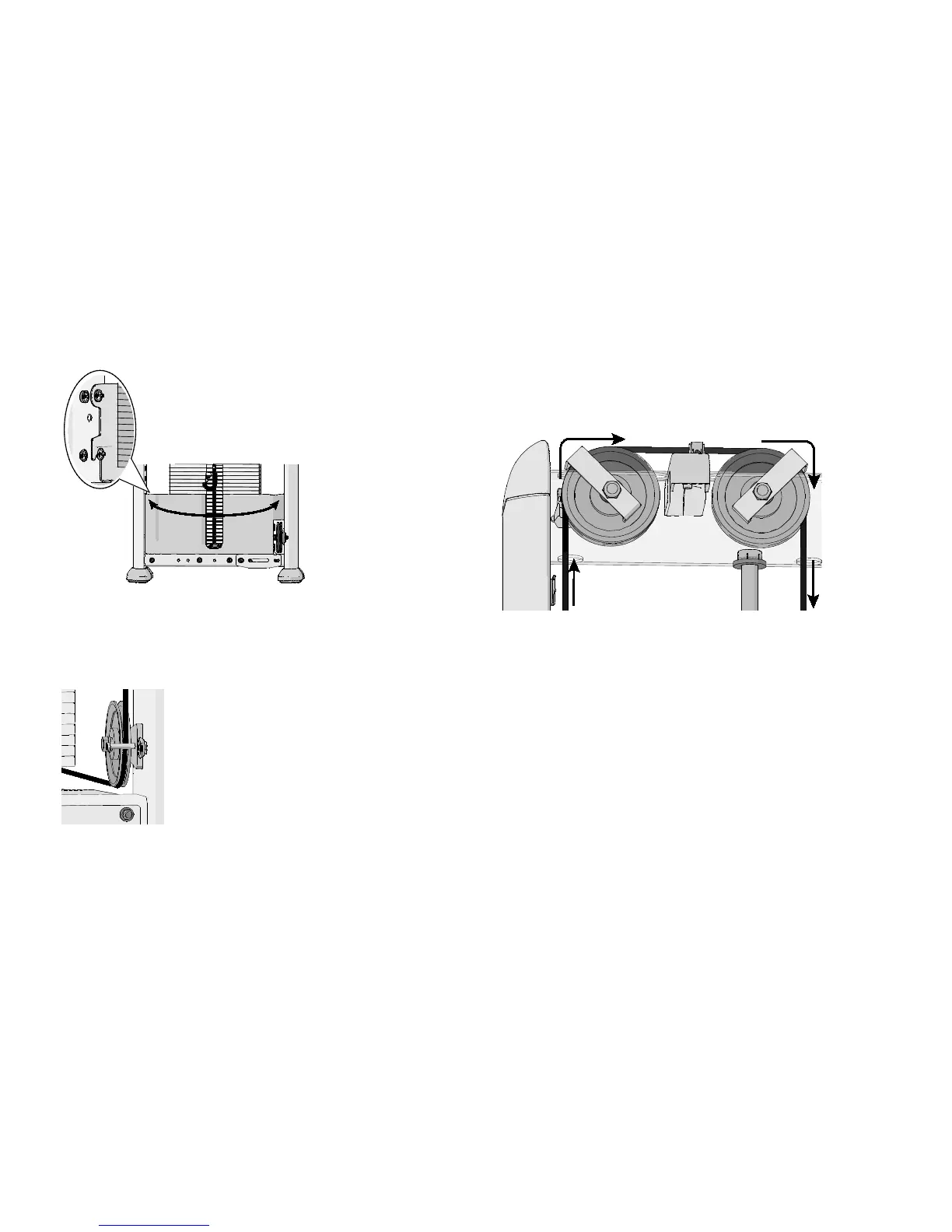

Figure 9: Kick cover removal
3. Gently lift the kick cover and set it aside.
4. Using a ⁵₃₂-inch hex bit, remove the shoulder bolt next to the pulley. Route
the cable around the pulley, then replace and tighten the shoulder bolt.
Figure 10: Cable and shoulder bolt position
5. Replace the kick cover and then the pulley cover using a ⁵₃₂-inch hex bit.
Threading the Cable Through the Top Frame of the
Weight Tower
The cable passes through an opening in the top of the weight tower frame,
over the pulleys and then back down through the frame to the weight stack.
Use the following procedure to remove both cable retainers and the pulley that
covers the opening where the cable passes upward through the frame.
Figure 11: Position of cable over pulleys
