Assembling the Equipment
5
2. Ask your assistant to hold the right stabilizer (with the cable protruding from
both ends) next to the base frame.

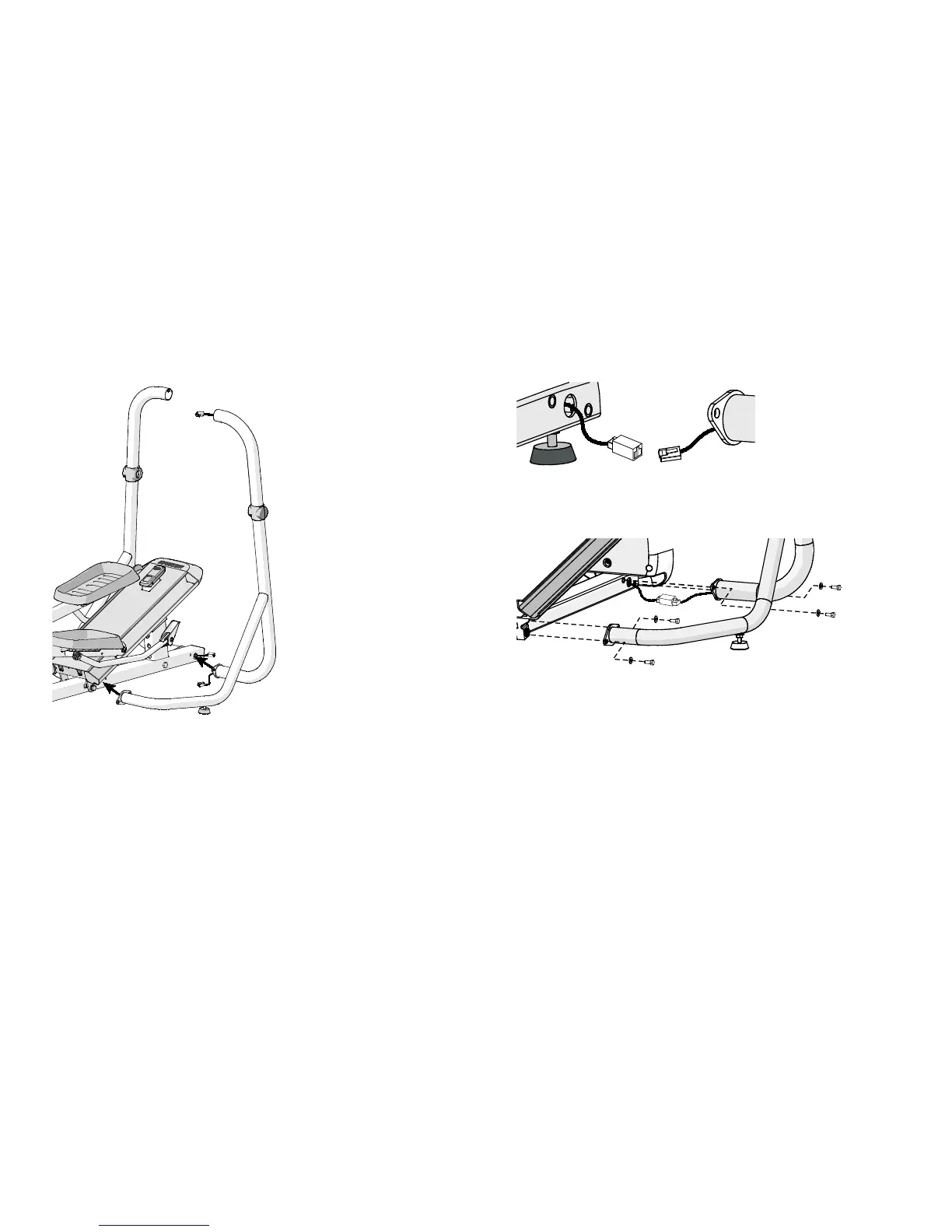

Figure 3: Right stabilizer position
3. Connect the base cable. You will hear a click when the cable is properly
attached. Place excess cable inside the stabilizer frame.
Figure 4: Base cable connection
4. Attach the right stabilizer to the base frame using four M8 x 20 mm hex head
bolts and four M8 washers. Partially tighten the fasteners.
Figure 5: Stabilizer attachment
