EFX 200 Series Assembly Guide 6
Attaching the Console Bracket
Important: The console bracket joints are lubricated before shipping to make assembly
easier. Be careful not to get this lubricant on your clothing as it may stain.

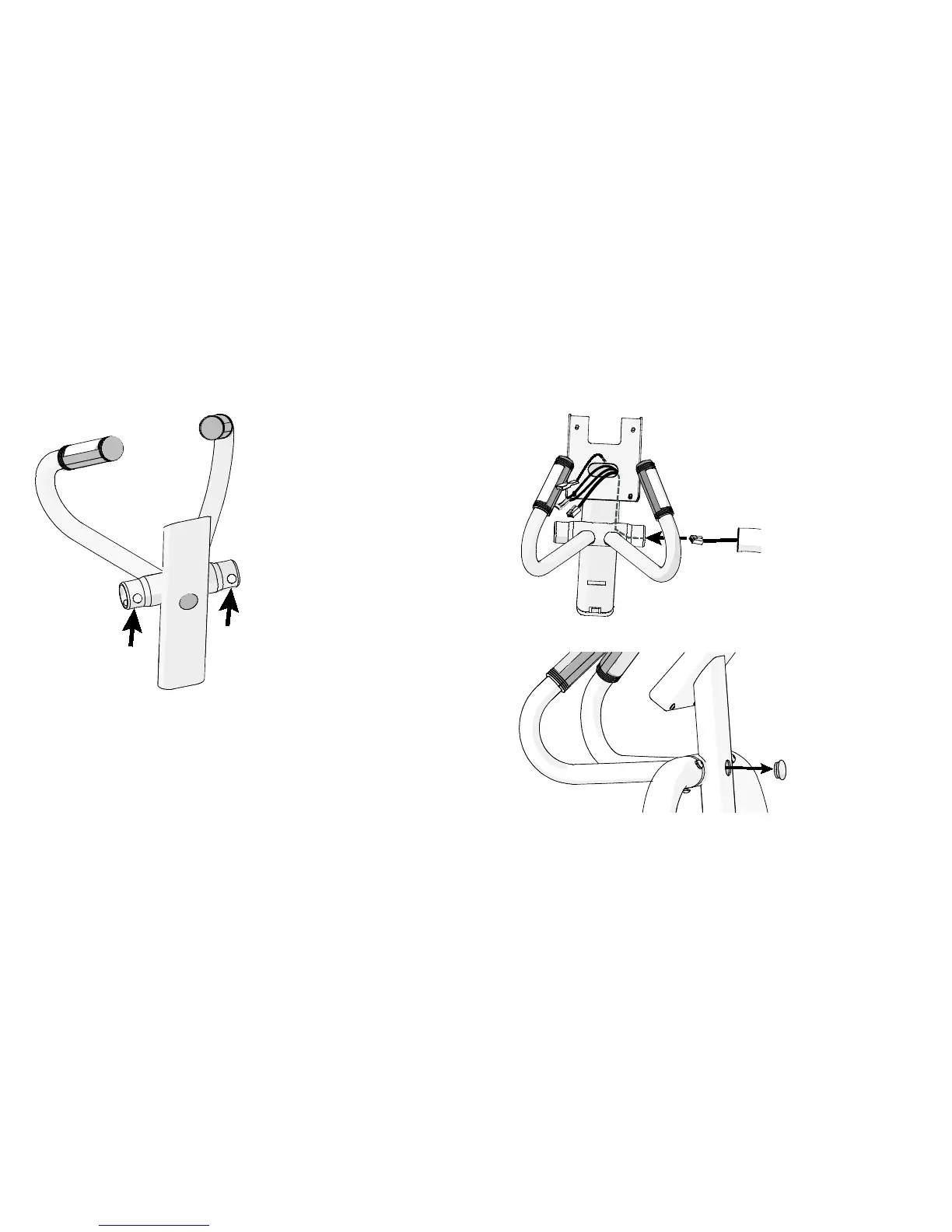

Figure 6: Grease location
Cut any wire ties that secure the cable to the stabilizer. Unwrap the cable and
remove any kinks.
CAUTION: Make sure you do not pinch the cables while attaching the console bracket.
Any damage caused during installation is not covered by the Precor Limited Warranty.
To attach the console bracket:
1. Feed the cable through the hole and then slide the console bracket onto the
right stabilizer.
2. Remove the plug from the hole on the back of the console bracket.
Figure 7: Remove plug
