EFX 200 Series Assembly Guide 8
Attaching the Movable Arms (EFX 245, 225,
and 222 Models Only)
Important: If your EFX is a 245, 225, or a 222 model, you will need to attach the
movable arms. If your EFX is a 221 model, please skip the following procedure.
The movable arms are positioned as shown in the following figure.

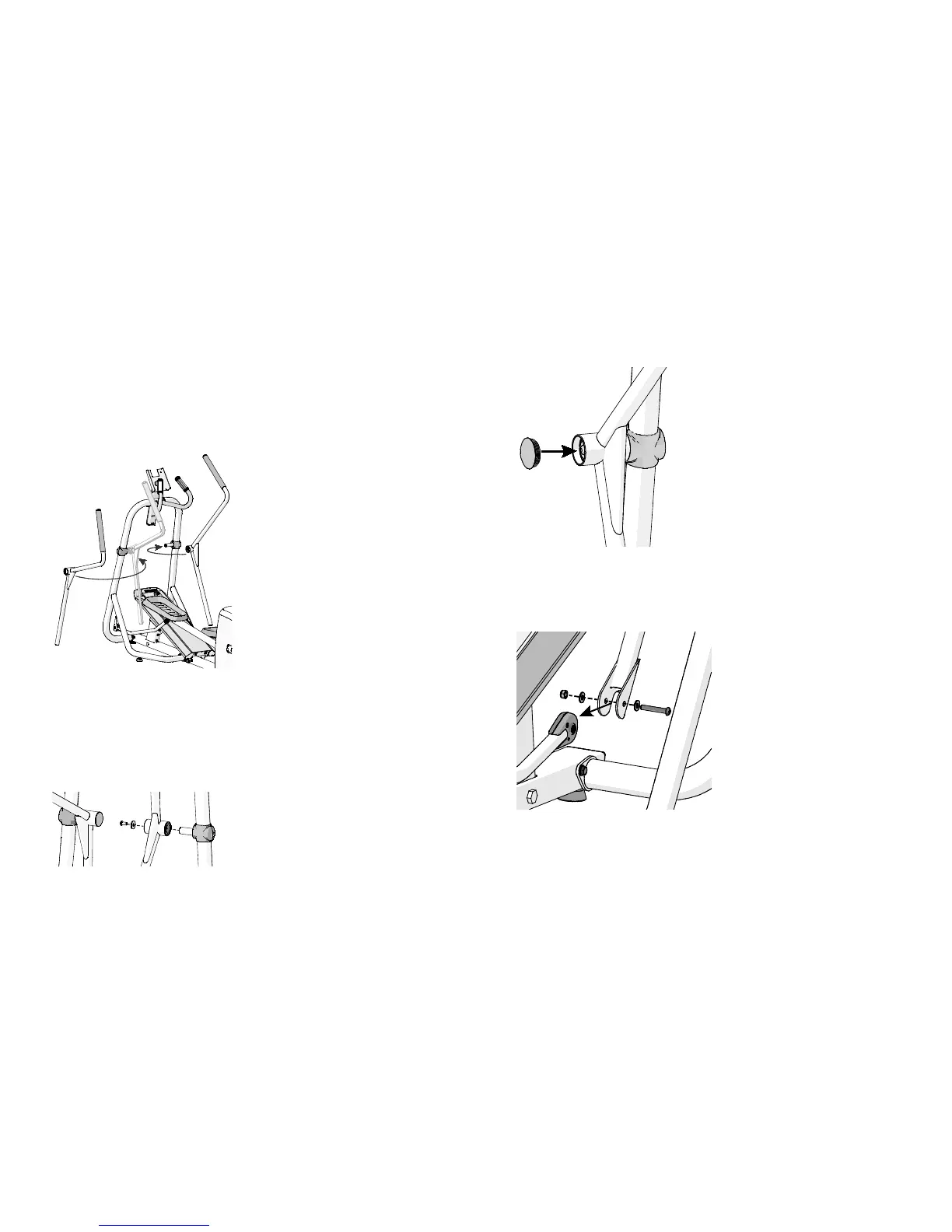

Figure 12: Movable arm positioning
To attach the right moving handlebar:
1. Slide the handlebar pivot joint onto the stabilizer axle (use a rubber mallet to
tap it into place if needed). Secure the handlebar using one M10 x 20 mm
buttonhead screw and one M10 washer. Fully tighten the fastener using the 6
mm hex key.
Figure 13: Handlebar fasteners and cap
2. Use the rubber mallet to tap the cap gently into place over the fasteners.
Figure 14: Attach moving arm cap
3. Attach the handlebar to the lower link arm using one M8 x 50 mm buttonhead
screw, two M8 washers, and one M8 locknut. Fully tighten the fasteners using
the 5 mm hex key and double-ended wrench.
Figure 15: Lower link handlebar attachment
4. Repeat this procedure to attach the left handlebar.
