EFX 200 Series Assembly Guide 10
Attaching the Bottle Holder
Locate the bottle holder.
To attach the bottle holder:

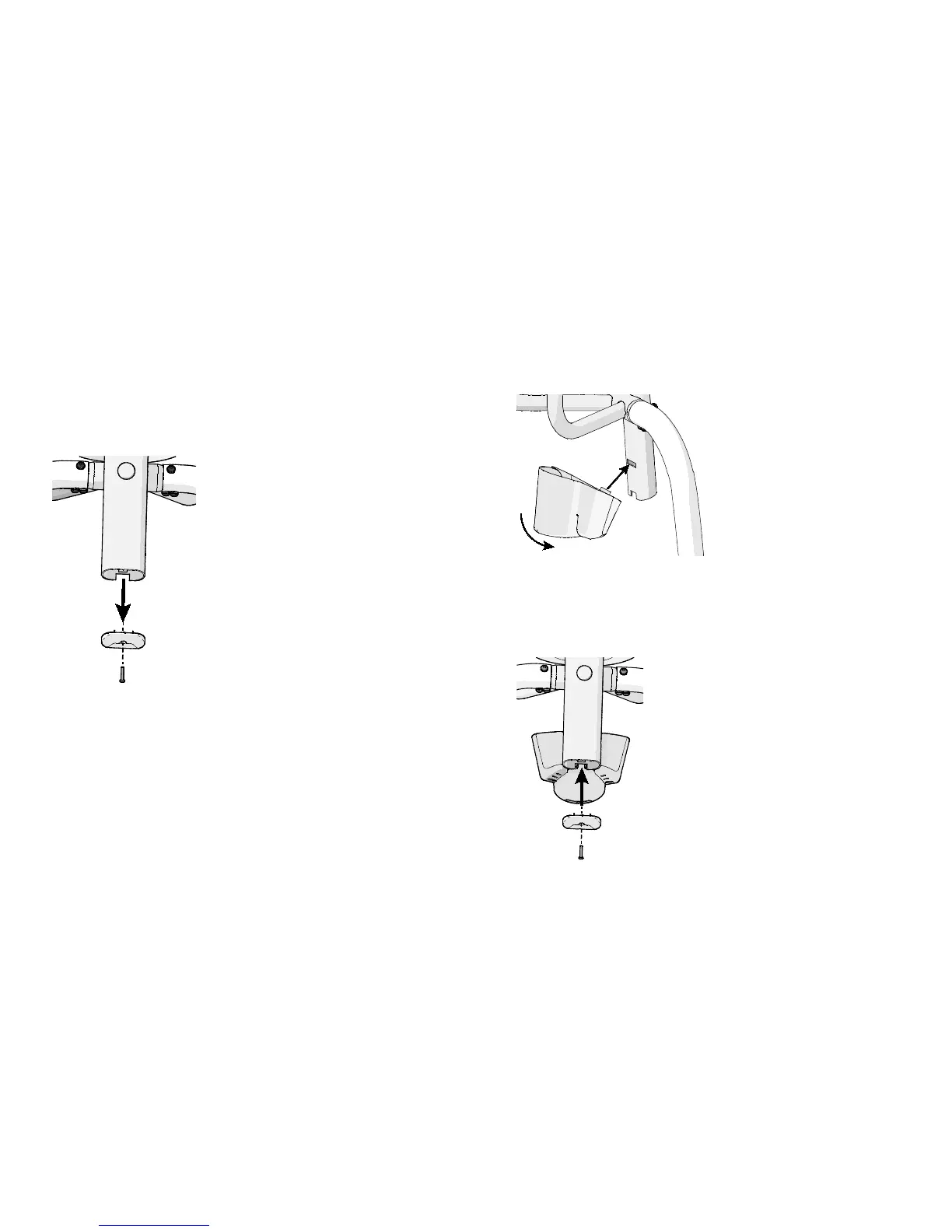

1. Remove the screw and console bracket end cap using a Phillips-head
screwdriver.
Figure 19: Remove end cap
2. Attach the bottle holder by inserting the tab into the slot in the console
bracket. Rotate the bottle holder approximately 45 degrees until tab is fully
inserted, and then pivot it downward.
Figure 20: Water bottle positioning
3. Install the end cap into the bottom of the tube and secure it using one Phillips
head screw.
Note: You may need to hold down the bottle holder while installing the end
cap as the end cap has slight interference and locks the bottle holder in place.
Figure 21: Replacing the end cap
