EFX 400 Series Assembly Guide 18
Attaching the Console
Three cables attach to the console.

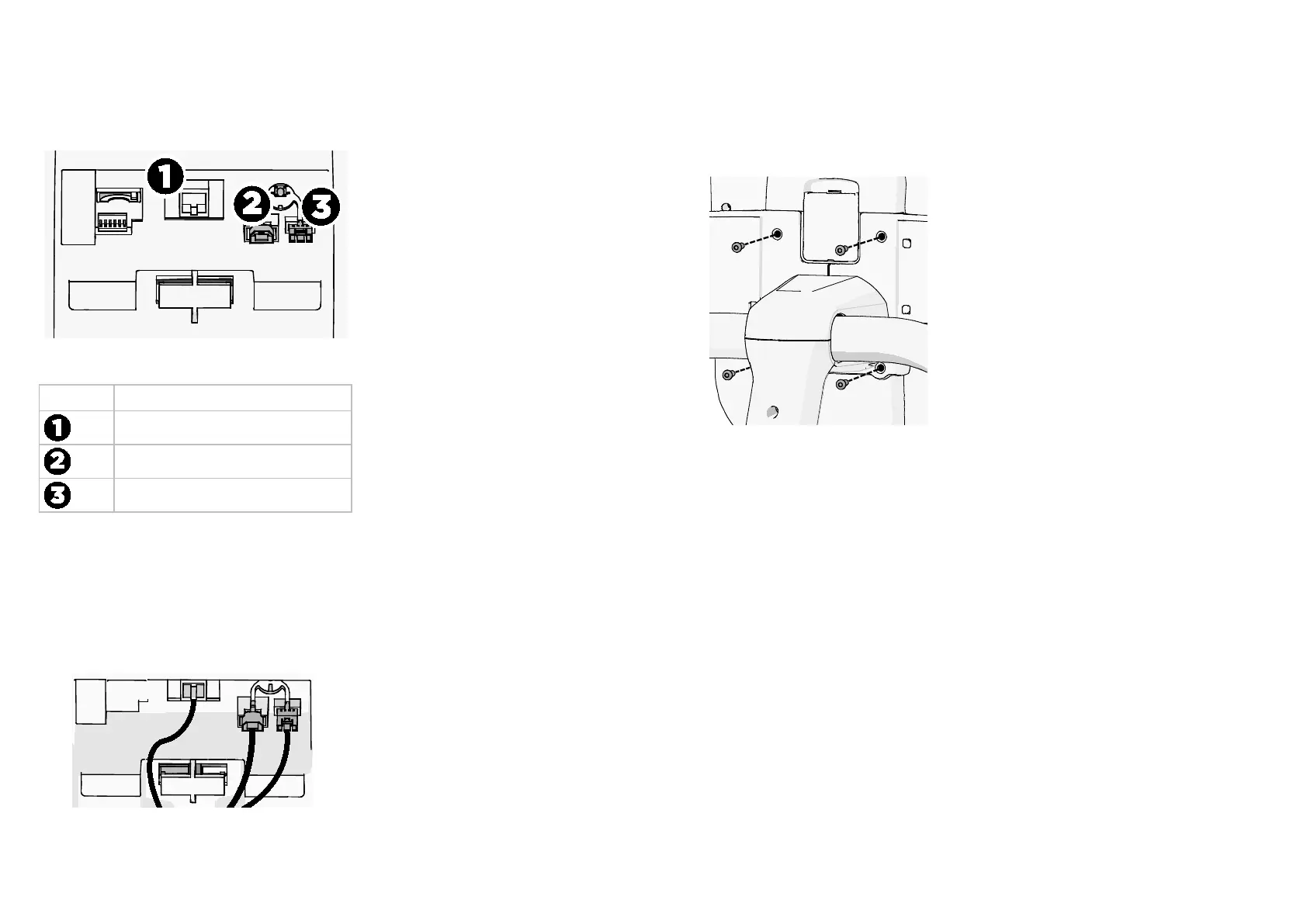

Figure 37: Cable attachments on back of console
Number Cable or feature
Base unit data cable
Console ground cable
Touch heart rate cable
To attach the cables to the console:
1. Have your assistant hold the console over the console bracket while you
carefully route the following console cables:
a. Insert the base unit data cable.
b. Insert the console ground cable.
c. Insert the touch heart rate cable with the tabs pointing down.
Figure 38: Cable attachment
2. Set the console onto the console bracket. It should sit flush on the bracket
without gaps. If there is a gap, check to make sure that no wires are being
pinched.
Figure 39: Securing the display console
3. Secure the display console using four buttonhead screws. Fully tighten the
fasteners.
Fully Tighten the Remaining Fasteners
Return to the fasteners on the equipment frame that have been partially tightened
and fully tighten them.
To fully tighten the remaining fasteners:
1. Start at the base of the stabilizers and tighten all eight screws using a ¹₂-inch
socket wrench with an extension.
2. If necessary, remove the wedge of packing material placed under the base
frame.
