EFX 400 Series Assembly Guide 12
Attaching the Lift Cover
To attach the lift cover:
1. To attach the front lift cover, align the mounts and engage the side clips by
pressing the front and back covers together. Insert the four fasteners that
secure the front lift cover and fully tighten them using the long-handled
⁵₃₂-inch hex wrench.

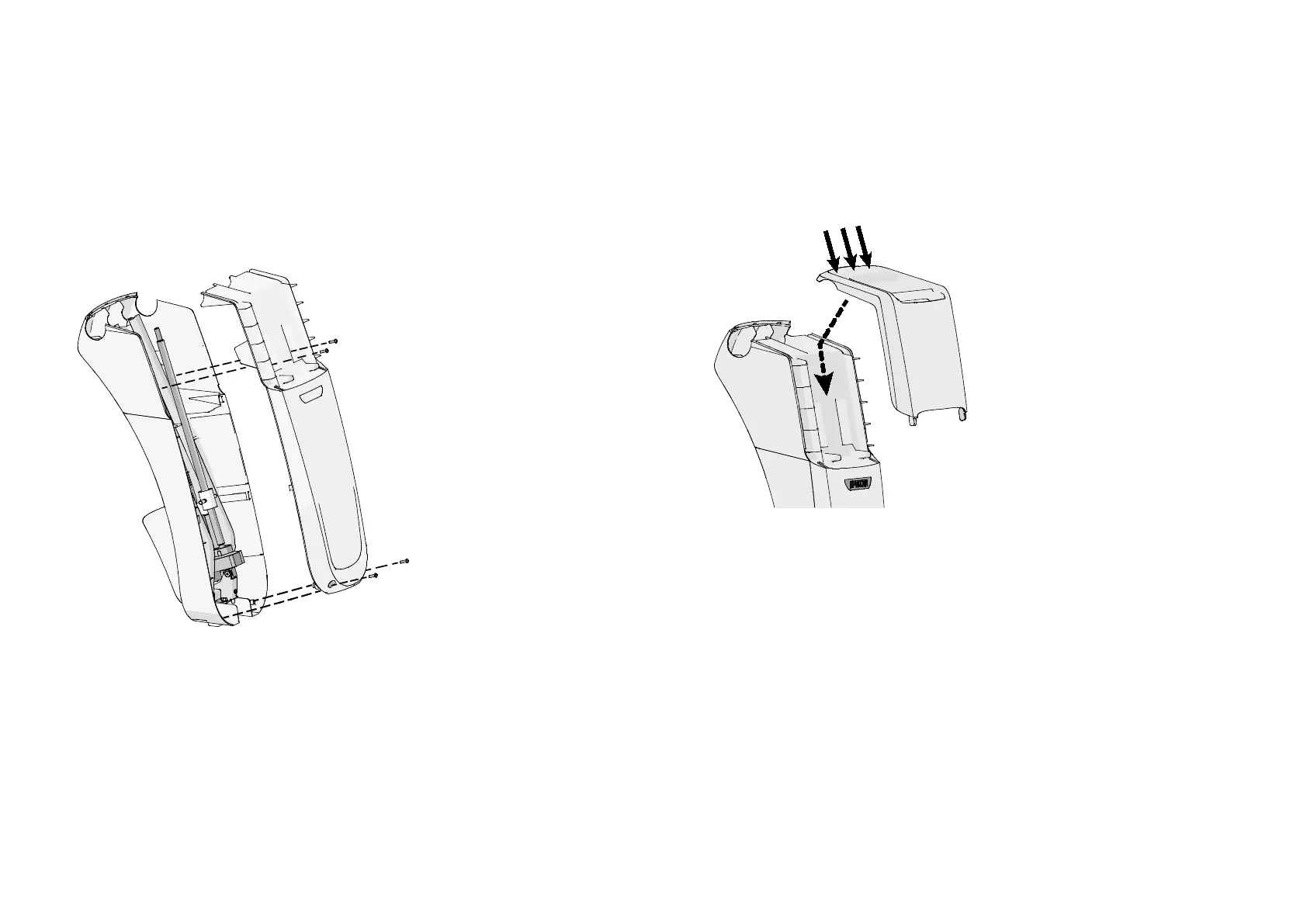

Figure 20: Lift cover attachment
2. Align the tabs and apply downward pressure and press the magazine rack and
back cover together. A click is heard when the magazine rack is secured
properly.
Note: For ease of assembly, refer to the following figure and apply pressure
straight down in the direction of the three arrows.
Figure 21: Magazine rack attachment
