COMMERCIAL PRODUCTS DIVISION
28. Slide the boot over the lower handrail mounts. The boot is asymmetrical.
Position it so that the longer side faces the upright support. See Diagram 18.

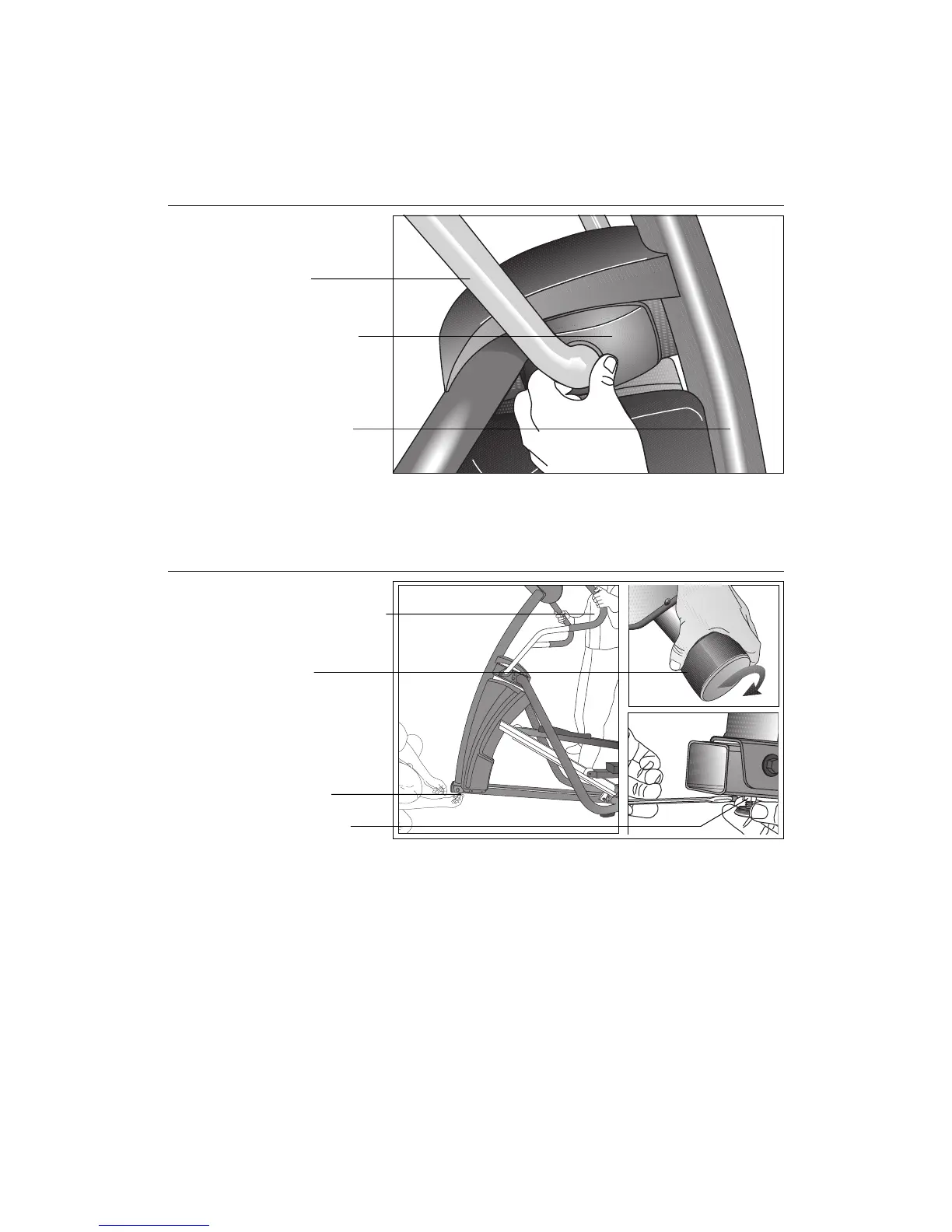

Diagram 18
Slide the handrail
boot over the
fasteners.
Handrail
Upright support
Correct orientation
of handrail boot.
Diagram 19
Level the unit.
Rear pad
Tighten the nut.
Assistant holding the
unit above the floor.
Turn the height
adjustor to the
proper level.
29. Level the unit. Diagram 19. After removing the supportive block from under
the front base tube, check to make sure that the unit does not wobble from
side to side or front to back.
Important: If the unit is placed on a slightly, uneven surface, adjusting the
rear pads can help, but will not compensate for extremely uneven surfaces.
a. To remove side to side movement or wobble, rotate the rear pads.
b. To counteract any rocking (front to back) motion, ask your assistant to
grasp the upright support so that he or she can raise the front of the unit
off the floor. Use a crescent or combination wrench to loosen the nut.
Turn the height adjustor clockwise to raise the height of the front end.
Turn the height adjustor counterclockwise to lower the height.
Once you have the proper height adjustment, use the wrench to turn the
nut counterclockwise and tighten it securely against the base tube.
