Precor EFX556i User Manual

page 10
COMMERCIAL PRODUCTS DIVISION
E
F
G
D
HARDWARE KIT
Carefully unpack the parts from the shipping container. Open the Hardware kit
and make sure that you have the following items as shown in Diagram 3:
❑ (A) four stainless steel socket hex screws—upper column assembly
❑ (B) fourteen washers—upper column assembly
❑ (C) four nuts—upper column assembly
❑ (D) six black socket hex screws—handlebars
❑ (E) two hex screws—link arm assembly
❑ (F) four washers—link arm assembly
❑ (G) two steel bushings—link arm assembly
❑ (H) two plastic caps—link arm assembly
❑ (J) four buttonhead hex screws—covers for upright assembly
❑ (K) 5/32-inch hex key—screws on bracket covers
❑ (L) 1/4-inch hex key— upper column assembly

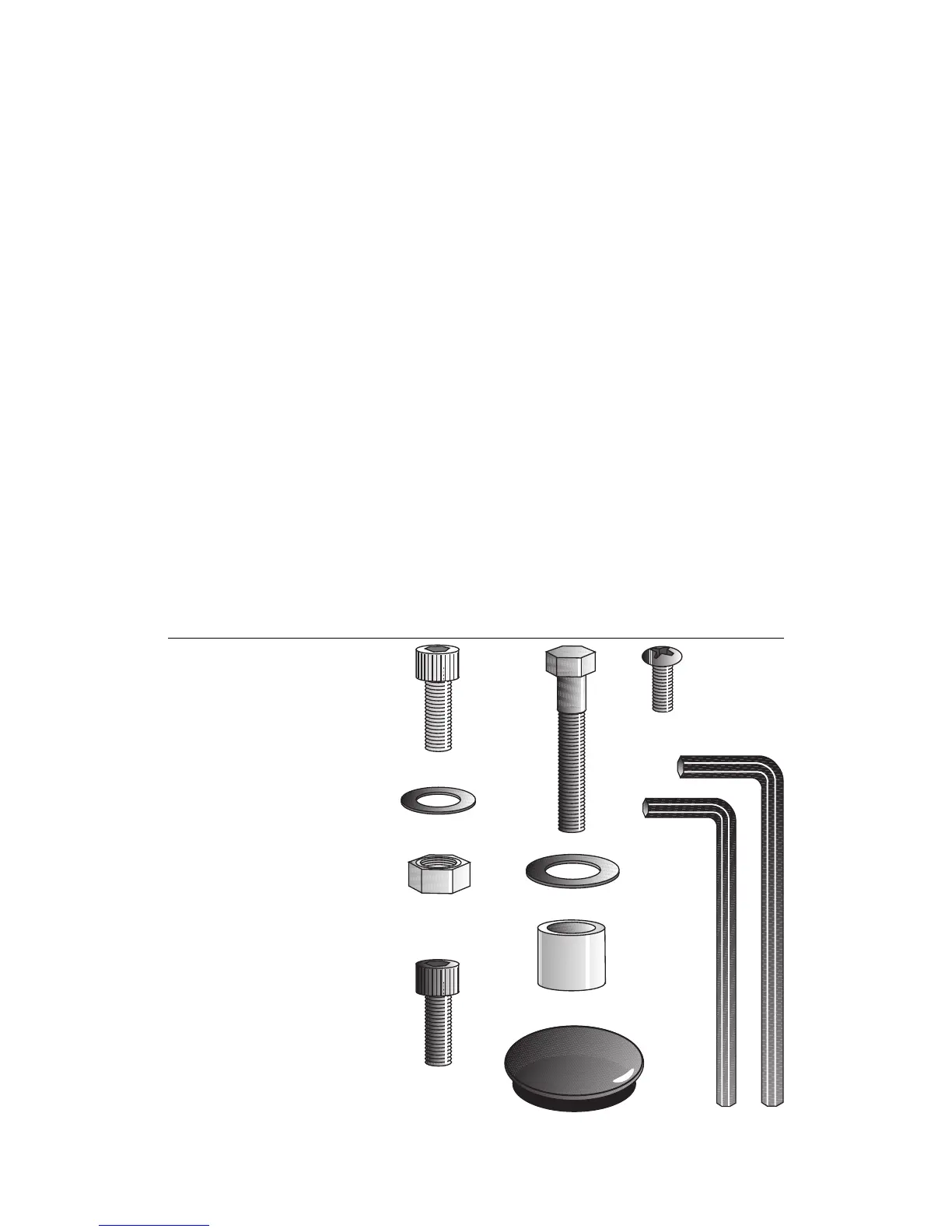

Diagram 3 EFX
®
556i
Hardware kit
C
If any items are missing, contact your dealer. Refer to Obtaining Service on page 7.
A
B
H
J
K
L

Precor EFX556i Specifications

Performance

crossramp	25 degrees (fixed)
stride length	18 inches (46 cm)
resistance levels	1 - 20

Regulatory and Frame

frame	Powder-coated steel
regulatory approval	FCC, ETL, CE
power	Self

Weight and Dimensions

length	80 inches (203 cm)
width	30 inches (76 cm)
height	64 inches (184 cm)
weight	230 lbs (105 kg)
shipping weight	340 lbs (155 kg)
