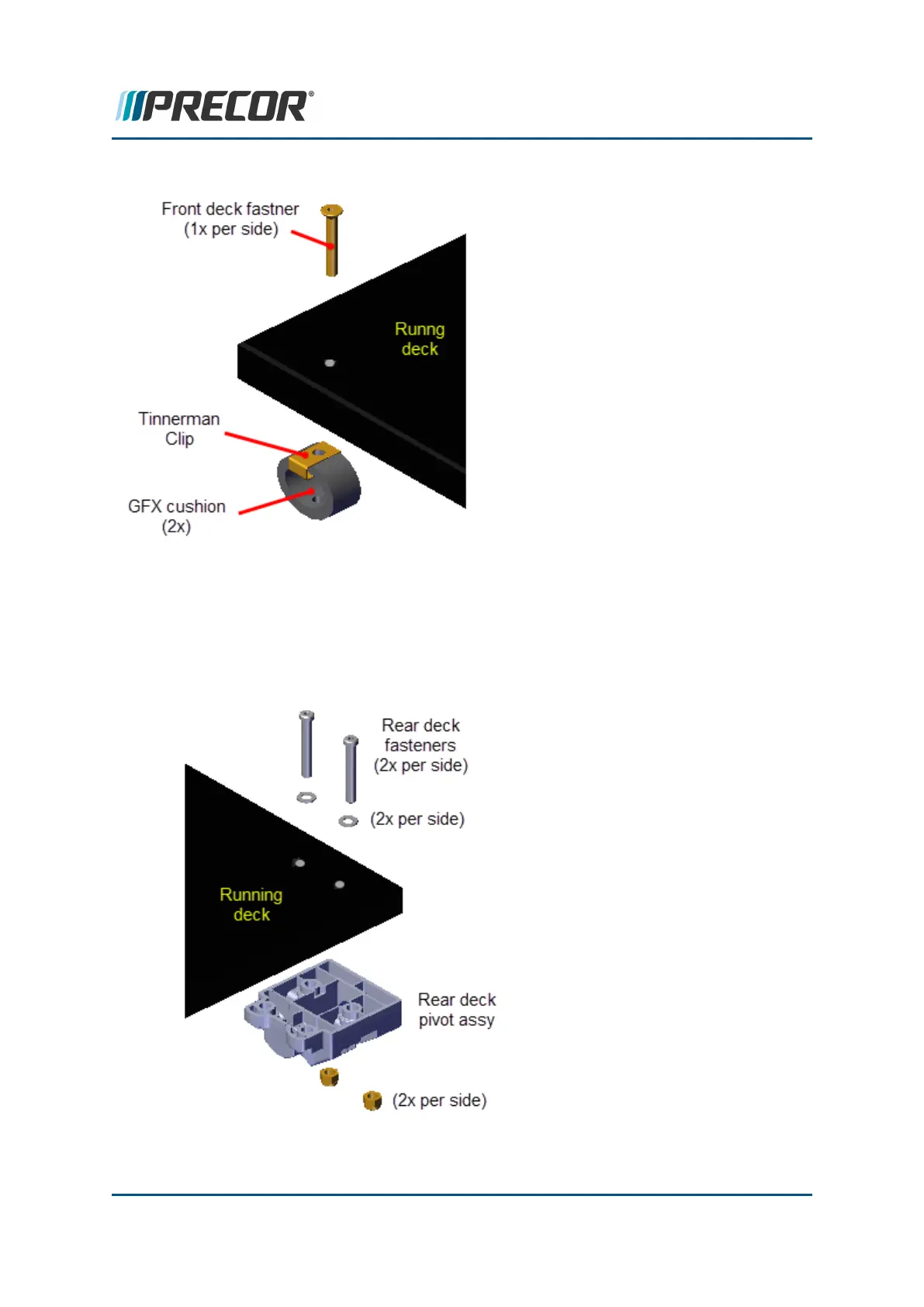

4. Reinstall the four 5/32" hex key bolt and washer rear deck fasteners, torque to 50-55
in-lbs (5.6-(6.2 Nm).
These fasteners attach to the left and right rear deck pivot assemblies. The 1/2"
fastener nuts are press fit into the bottom of the deck pivot housing. Be aware that the
nuts can fall from the housing as the bolts are being installed and fall to the floor. You
may need to hold the huts in place while tightening these fasteners.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 193
6 Replacement Procedures
Running Belt and Deck Replacement Procedure
