and torque to [[[Undefined variable Specifications.QNX-M12Bolt]]].

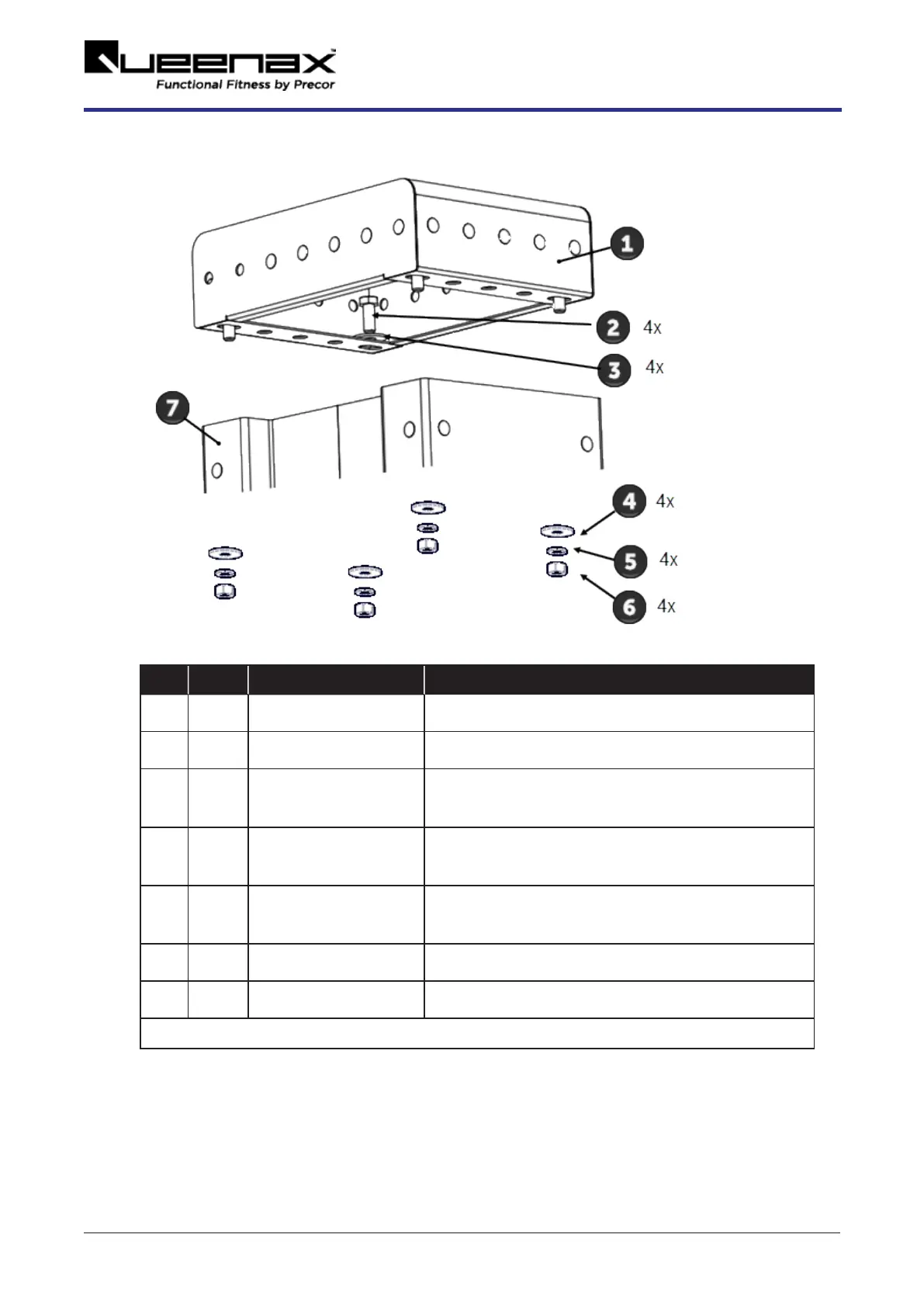

ID Qty PN Description
1 1 Q2017PFY-101 TOWER TERMINAL 10,PF YELLOW
2 4 CWHMCN012-030 SCREW,HHC,M12X1.75X30,STL,CZ
3 4 CWWNCN012-025 WASHER,FLAT,STEEL,METRIC,M12 X 36 OD
X 2.5T, CZ
4 4 CWWNCN012-025 WASHER,FLAT,STEEL,METRIC,M12 X 36 OD
X 2.5T, CZ
5 8 CWWBWCN012-
023
WASHER, SPLIT, M12 X 2.3MM THICK, CZ
6 8 CWKARCN012-010 NUT,PLAIN,HEX,M12,STL,CZ, DIN 934
7 1 Q2275PFY-101 ASSY,BEAM,SECTION,250 S 2.0,PF YELLOW
Note: Part qty on a per unit basis.
3. Attach the floor fixing 25 to the 25 cm side of the left and right towers.Secure using a 6 mm
hex key and 17 mm wrench to tighten the M10 hex key bolt, M10 flat washer, M10 lock
washer, and M10 nut, Fully tighten all fasteners and torque to [[[Undefined variable Spe-
cifications.QNX-M10Bolt]]].
11
4 Assembly and Installation
Procedure
