Precor QUEENAX PF175 2D - Anchor the Floor Fixings to the Floor

ID Qty PN Description
1 3
Q40022-101 WALL BAR 125,BOX OF 4
2 1
Q2275PFY-101 TOWER - LEFT
3 1
Q2275PFY-101 TOWER - RIGHT
4 12
CWKFCN010-008 NUT,LOCK,FULL,M10,NYLON INSERT,STL,CZ
5 12
CWWNCN010-025 WASHER,FLAT,STEEL,METRIC,M10 X 40 OD X 2.5T,
CZ
6 12
CWWKCN010-019 WASHER, FLAT, STEEL, METRIC, M10 X 1.9MM
THICK, CZ
7 12
CWTECN010-030 SCREW,BHC,M10X1.5X30,CZ
Note: Part qty on a per unit basis.

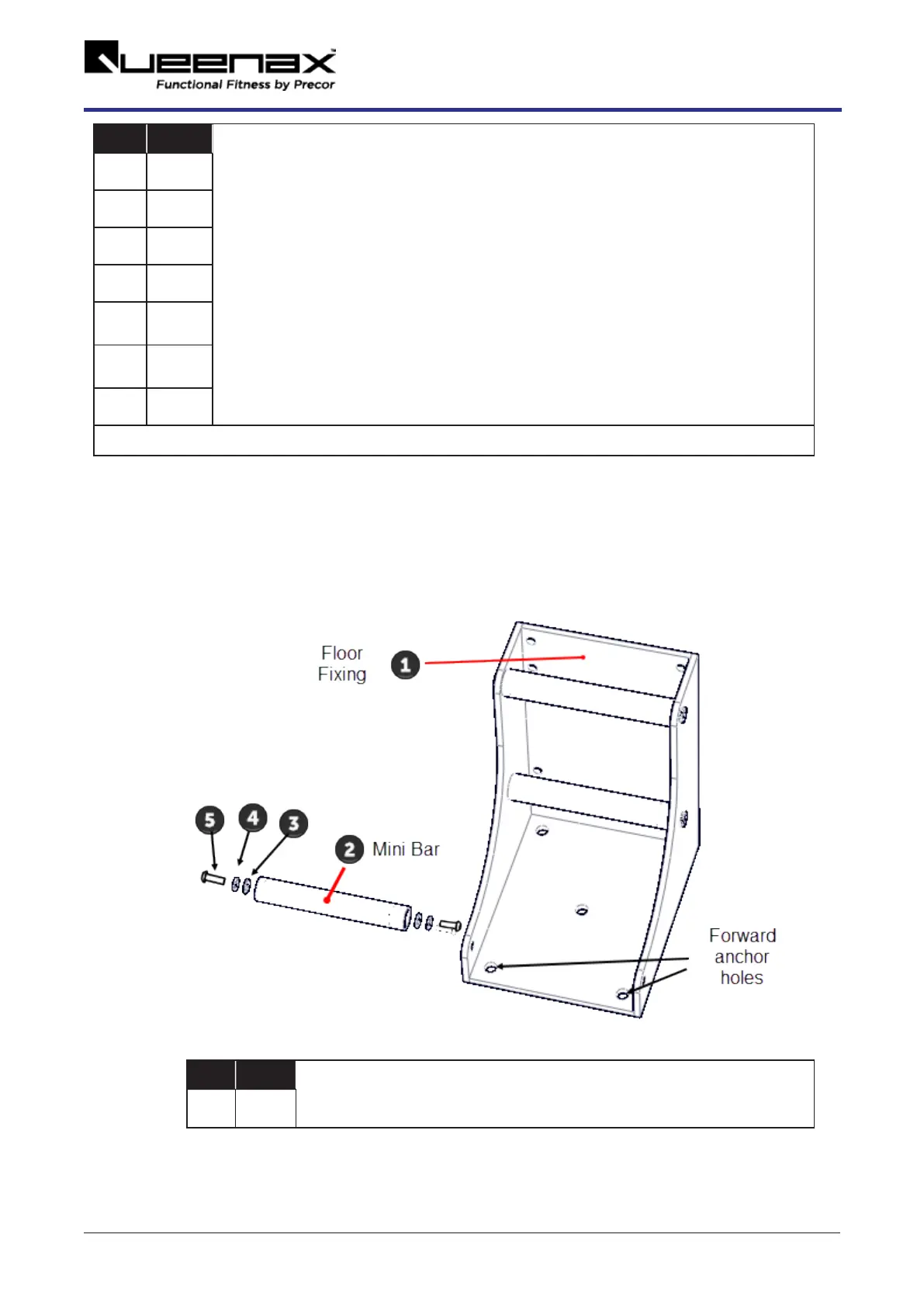

Anchor the Floor Fixings to the floor
13. Install the floor fixing anchor bolts:
a. Remove the floor fixing front mini bar 25 to gain access to the front anchor bolt holes.
Retain part(s) and/or fastener(s) for installation.
ID Qty PN Description
1 1
Q40411-101 WLDMT,FLOOR FIXING 25,SILVER
17
4 Assembly and Installation
Procedure
