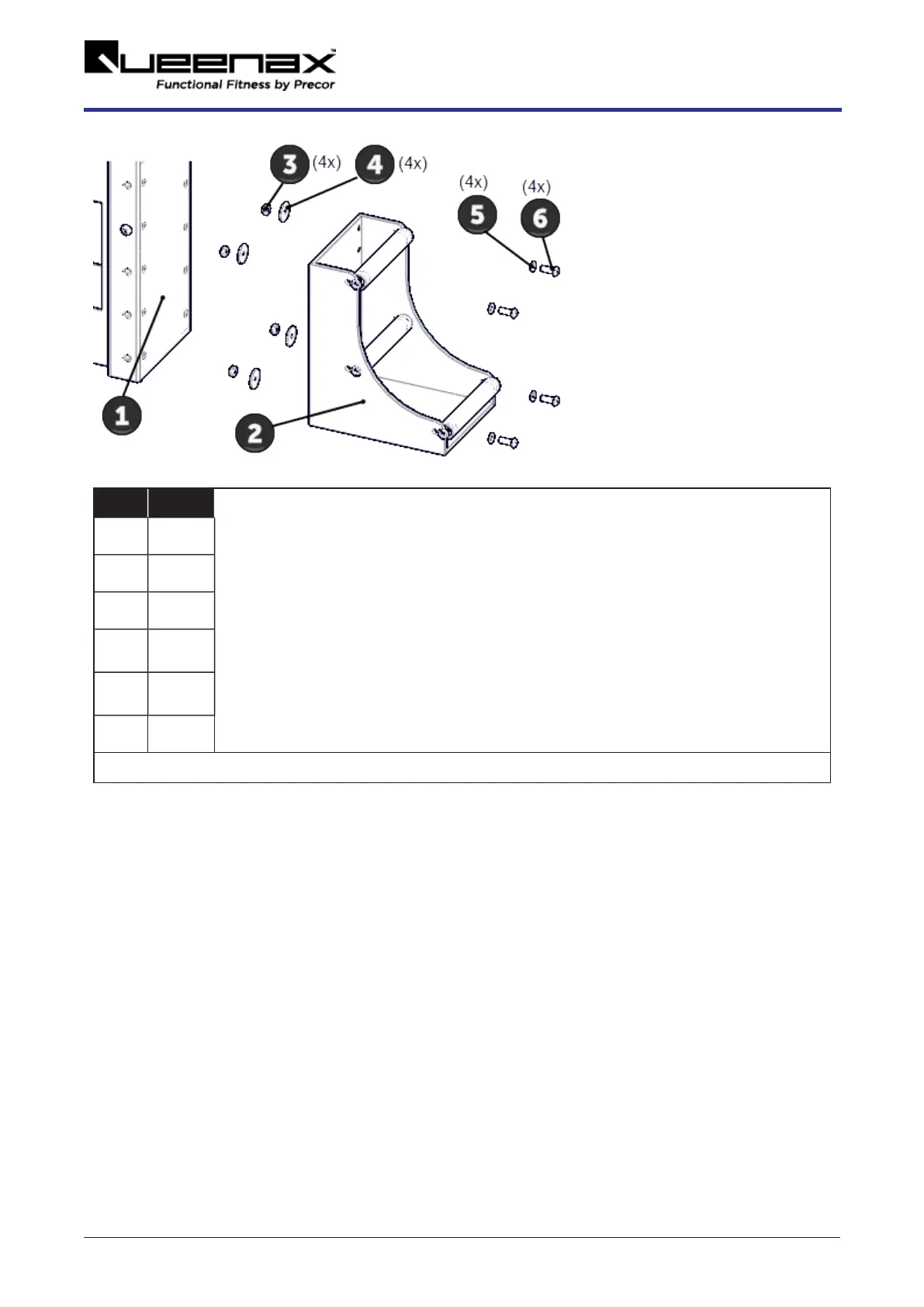

ID Qty PN Description
1 1
Q2275PFY-101 ASSY,BEAM,SECTION,250 S 2.0,PF YELLOW
2 4
Q2052QMS-101 FLOOR FIXING 25, SILVER
3 4
CWKFCN010-008 NUT,LOCK,FULL,M10,NYLON INSERT,STL,CZ
4 4
CWWNCN010-025 WASHER,FLAT,STEEL,METRIC,M10 X 40 OD X 2.5T,
CZ
5 4
CWWKCN010-019 WASHER, FLAT, STEEL, METRIC, M10 X 1.9MM
THICK, CZ
6 4
CWTECN010-030 SCREW,BHC,M10X1.5X30,CZ
Note: Part qty on a per unit basis.
Anchor the towers to the floor
4. Use the rendering to layout and mark the location for the left and right tower floor fixing assem-
blies. Make sure that the unit layout provides sufficient unobstructed area around the top and
sides of the equipment for installation and use.
5. Precisely stand and position the two tower floor fixing assemblies per the rendering spe-
cification. Set the towers 125 cm apart. You can use a wall bar 125 to set the exact spacing
between the left and right towers. Make sure the three towers are positioned equal distance
from the wall and square relative to each other.
12
4 Assembly and Installation
Procedure
