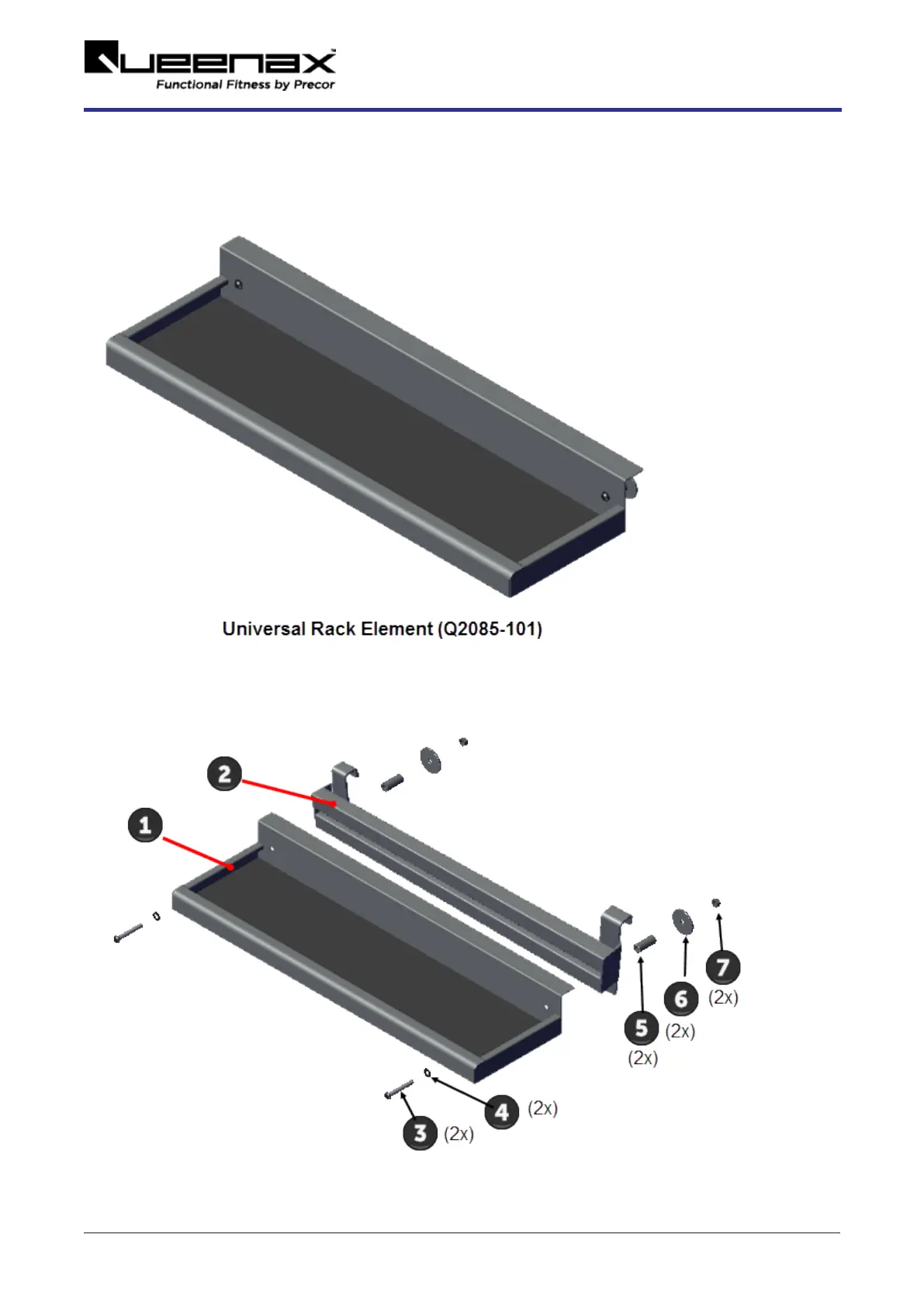

Universal Rack Element
Use the unit rendering to determine the number and installation location for the Universal Rack Ele-
ment optional installation.
1. Attach the horizontal removable rack onto the universal rack element. Secure using the
screw, washer, spacer, washer, and hex key screw. Fully tighten all fasteners.
25
4 Assembly and Installation
Universal Rack Element
