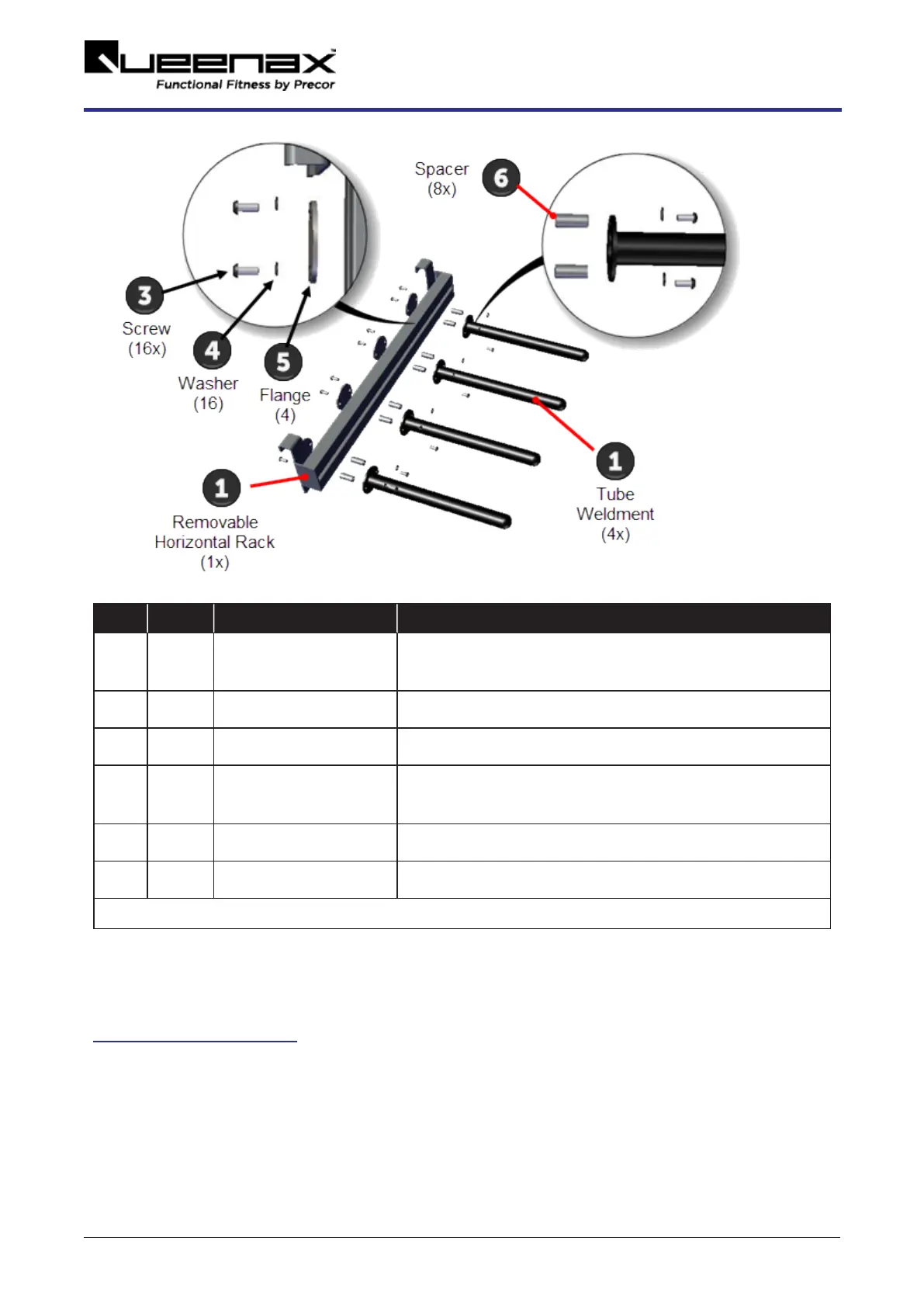

ID Qty PN Description
1 4 Q40136-104 TUBE,ROUND,STL,50MM OD X 2MM THK X 500 MM
L
2 1 Q2082 HORIZONTAL REMOVABLE RACK
3 16 CWTEKN010-025 SCREW,BHC,M10X1.5X25,STL,BZ
4 16 CWWKKN010-020 WASHER, FLAT, STEEL, METRIC, M10 X 2 MM
THICK, BZ
5 4 Q40385-101 FLANGE,2 HOLED,BAG RACK
6 8 Q40042-101 SPACER,TAPPED,M10-1.5
Note: Part qty on a per unit basis.
3. Install the assembled horizontal bag shelf onto the unit. Use the rendering to determine install-
ation location.
See Also
"Install the Unit Optionals" on page20
Bulgarian Bag and Ball Assembly
"Horizontal VIPR & Roller Shelf Optional Assembly " on page22
24
4 Assembly and Installation
Horizontal Bag Shelf Optional Assembly
