6. Verify that the customer approves the unit location. Always receive customer approval before
doing any floor covering alterations or drilling of the anchor fastener holes.
IMPORTANT: Do not make any alterations to the flooring or drill any anchor bolt holes
before verifying location with the customer.

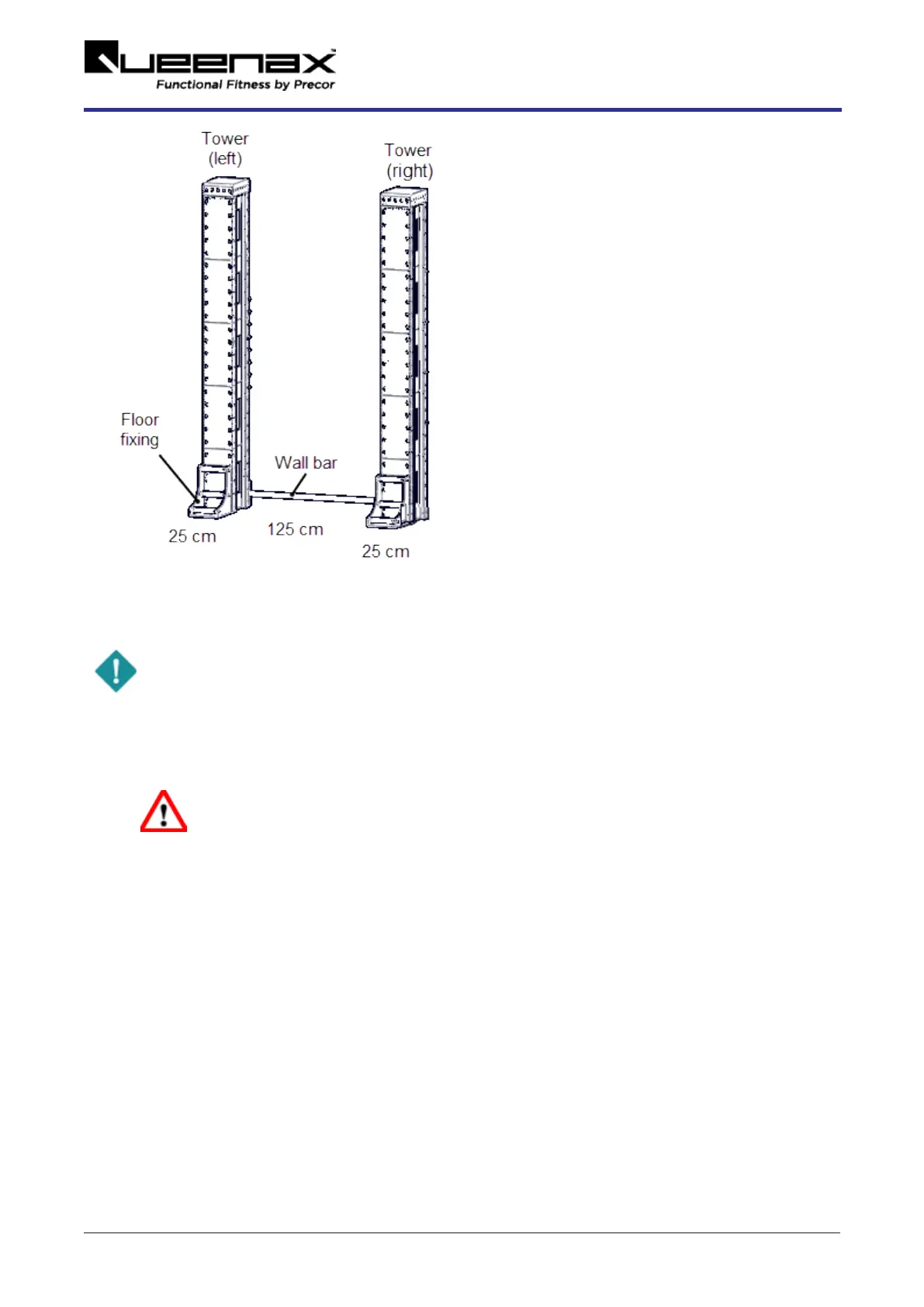

7. Floor covering installationsonly:Remove the floor covering from underneath each tower.
Precisely trace the outline of the tower with the floor fixing attached. Then carefully cut and
remove the flooring. Replace the tower back into the final position. Repeat for each tower.
WARNING:The equipment towers and floor fixings must be installed directly on
the concert surface. Any floor coverings must be removed from underneath the
towers and floor fixings. Floor coverings can cause premature loosening of fasten-
ers causing possible hardware failure and harm to exercisers.
8. Mark the four anchor bolt positions located on inside of the tower footplate, refer to the
Tower
Anchor Bolt Pattern
diagram below for anchor bolt location information. Do not mark the floor
fixing anchor locations at this step.
13
4 Assembly and Installation
Procedure
